Maintenance 6. Maintenance Parts Replacement Procedures
152 RC620 Rev.8
(5)

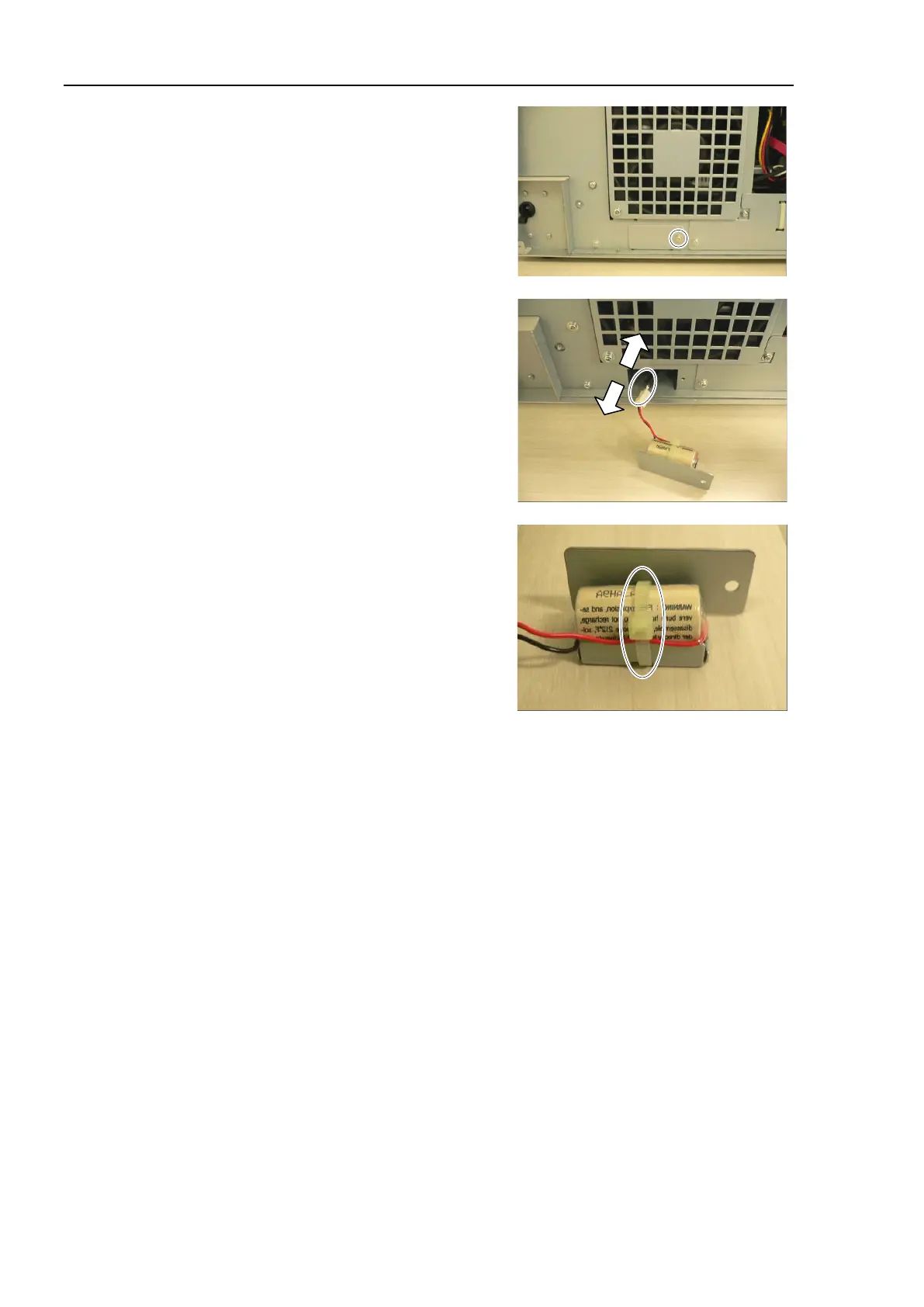

Remove a screw of the battery
fittings
located
below the Large Fan.
(6)
Pull out the battery fittings and
disconnect the relay connector.
The lithium battery cable is connected
to the main chassis. Be sure to pull it
out slowly.
(7)
Cut off the wire tie by nippers and
remove the lithium battery.
Be careful not to scratch the battery
when cutting off the wire tie.

