Maintenance 6. Maintenance Parts Replacement Procedures
RC620 Rev.8 197

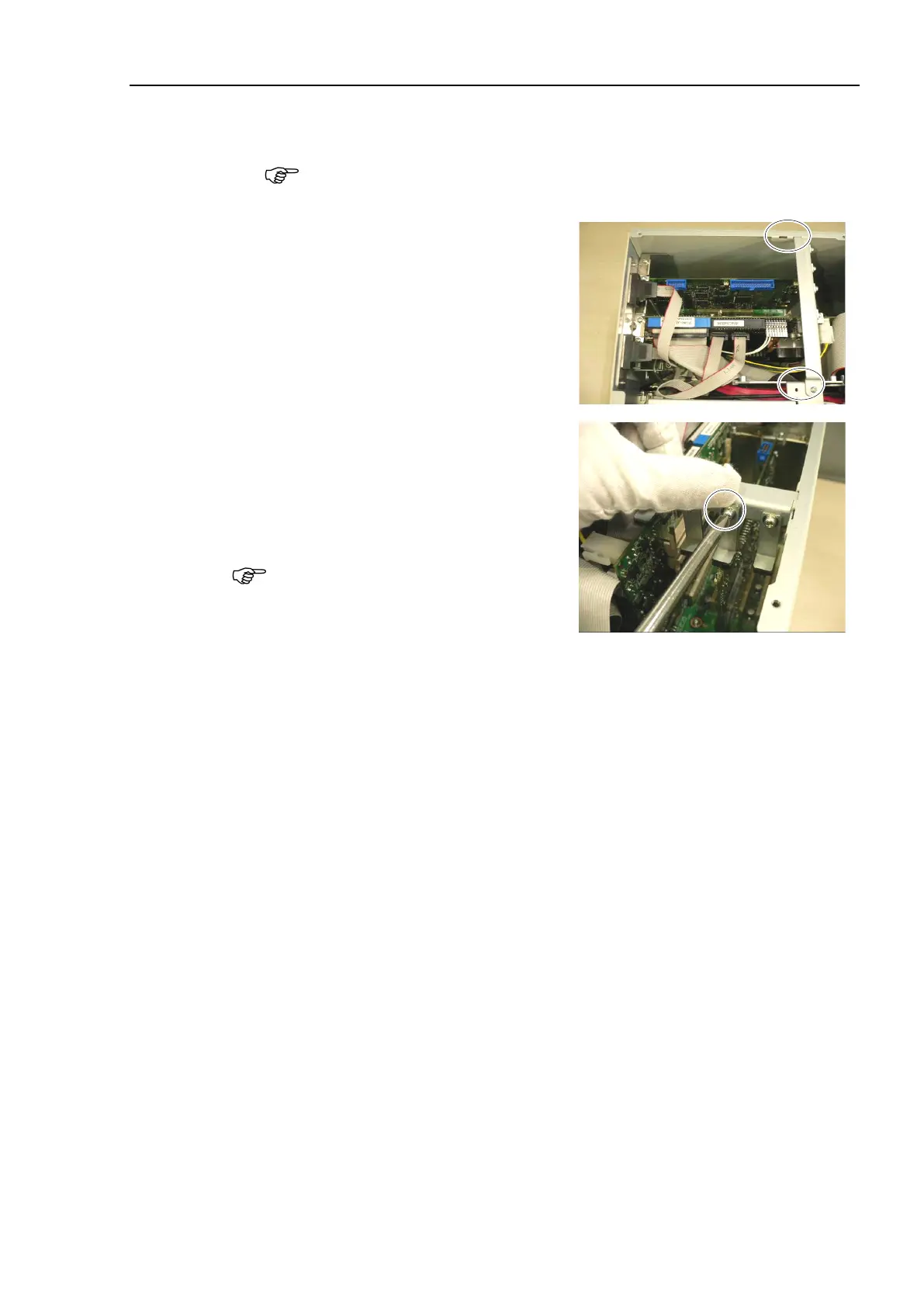

PCI
Board
Installation
(1)
Insert the
PCI Board into the PCI-BPB slot and secure using a screw.
Be sure to tighten the screw with proper tension. Otherwise, t
he screw hole will
be broken.
(2)
Insert the board holder assembly into
the hole of the
side panel (Right) and
secure it using a screw.
(3)
Loosen the screw holding the
PCI
Board
.
Put the
PCI Board in position and set
the screw.
Make sure that the
PCI Board is
firmly placed.
(4)
Place the top panel and secure it using 10 screws.
(5)
If you disconnected the external cables from the
PCI Board, connect them again.
(6)
Plug in
the power connector. Turn ON the Controller and make sure that
the
Controller starts properly without any vibration or abnormal noise.

