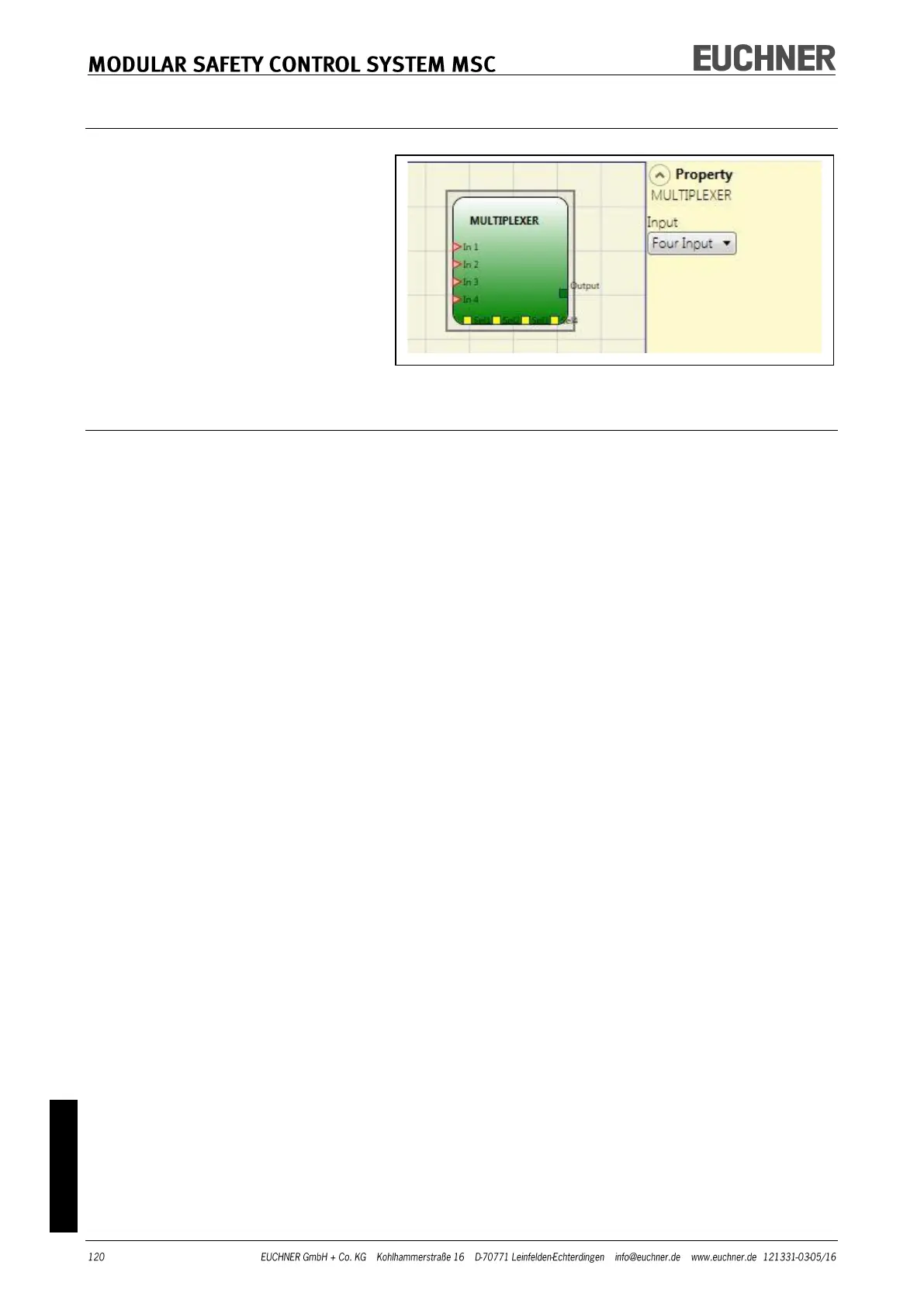

MULTIPLEXER
Using the logical MULTIPLEXER the
input signal sent to the output de-
pends on the SEL selection. If only
one bit is set for SEL1–SEL4, the se-
lected input is connected to the
output. If on the SEL inputs:
- More than one = "1" (TRUE) or
- None = "1" (TRUE),
The output switches to "0" (FALSE),
and that independent of the input
values.
Parameters
Inputs: You can set 2 to 4 inputs using this option.
