EUCHNER MSC - 9.4.5.5. Delay line (DELAY LINE)

English
SPECIAL APPLICATIONS
Output delay with manual operating mode
If two OSSD outputs are required and one output is to be delayed (in the MANUAL operat-
ing mode), the following logic is to be used:

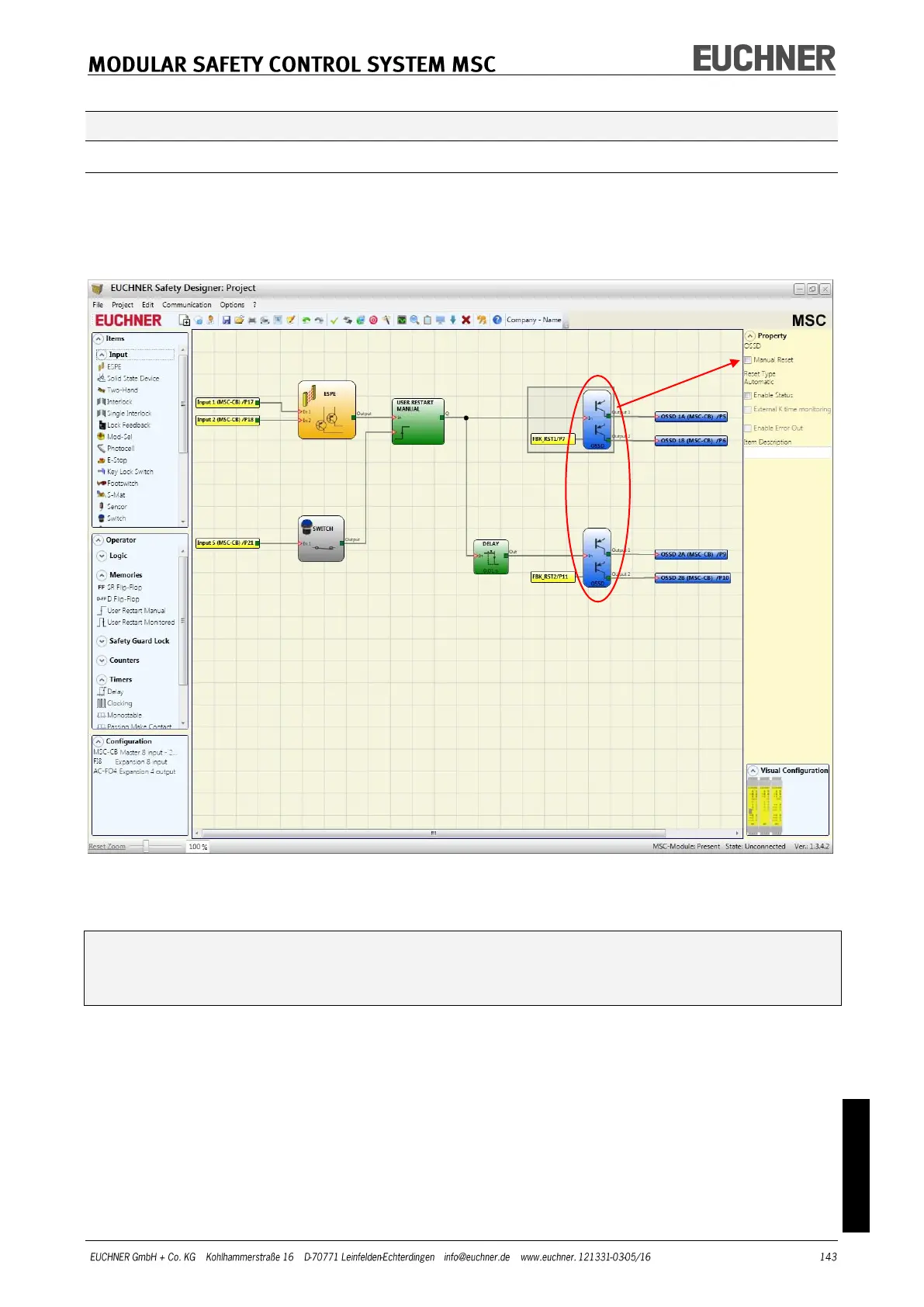

Figure 50 – Two outputs, of these one output delayed (MANUAL operating mode)

If the Delay operator is used, the application must be as follows:
- The two outputs must be programmed via the USER RESTART MANUAL function
with automatic reset.
A
B
C
