PASSING MAKE CONTACT

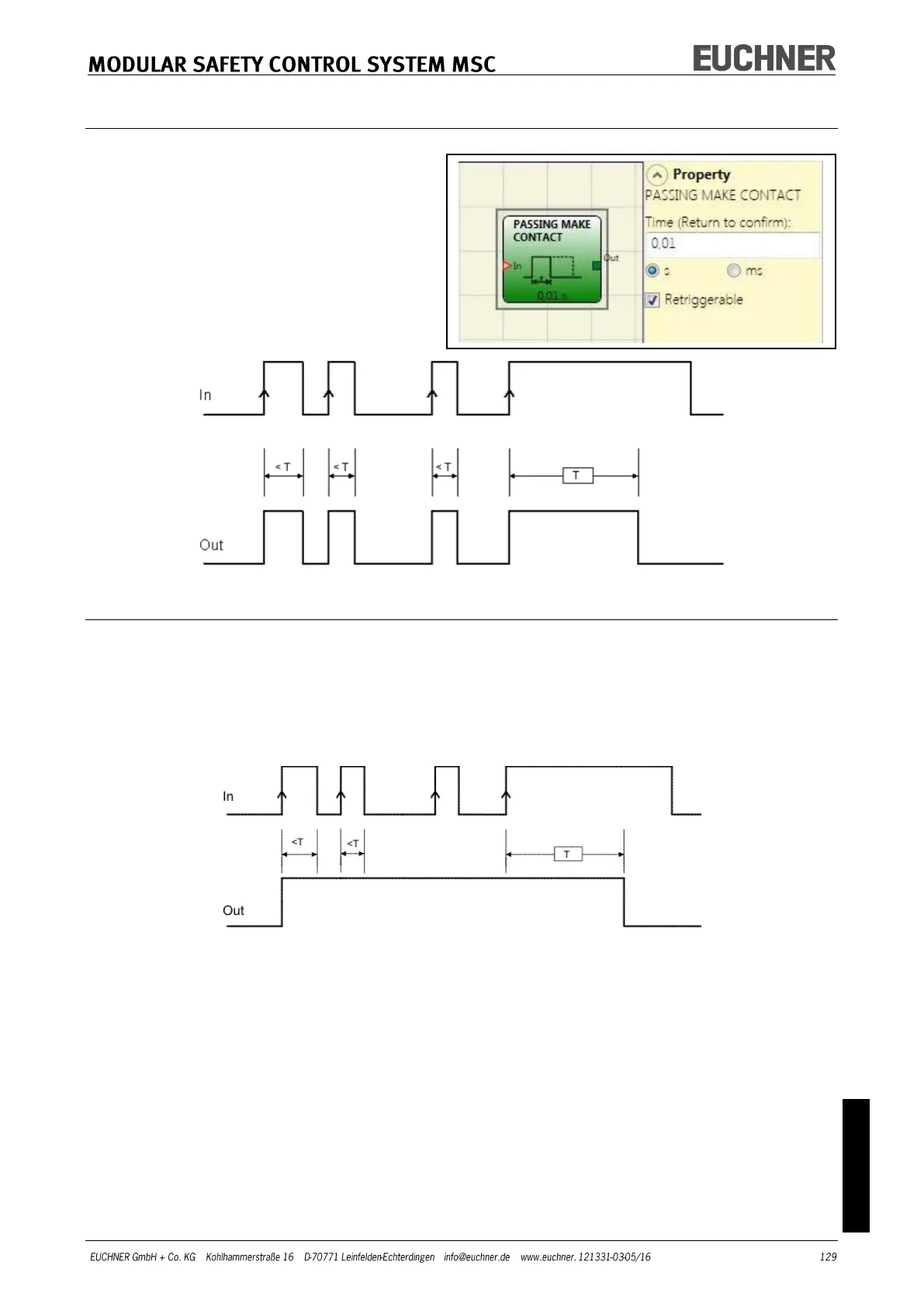

The PASSING MAKE CONTACT operator
provides the signal present on the input
as a pulse on the output. If the input
signal is "1" (TRUE) longer than the time
set, the pulse is limited to the time set.
The pulse is truncated with a falling
edge.
Parameters
Time: The delay can be set to a value between 10 ms and 1098.3 s.
Retriggerable: If selected, the time is not reset on a falling input edge. The output re-
mains at "1" (TRUE) for the entire time set. The timer is restarted if there is a new rising
edge.
