EUCHNER MSC - 5.3.1. Information in relation to connecting cables

English

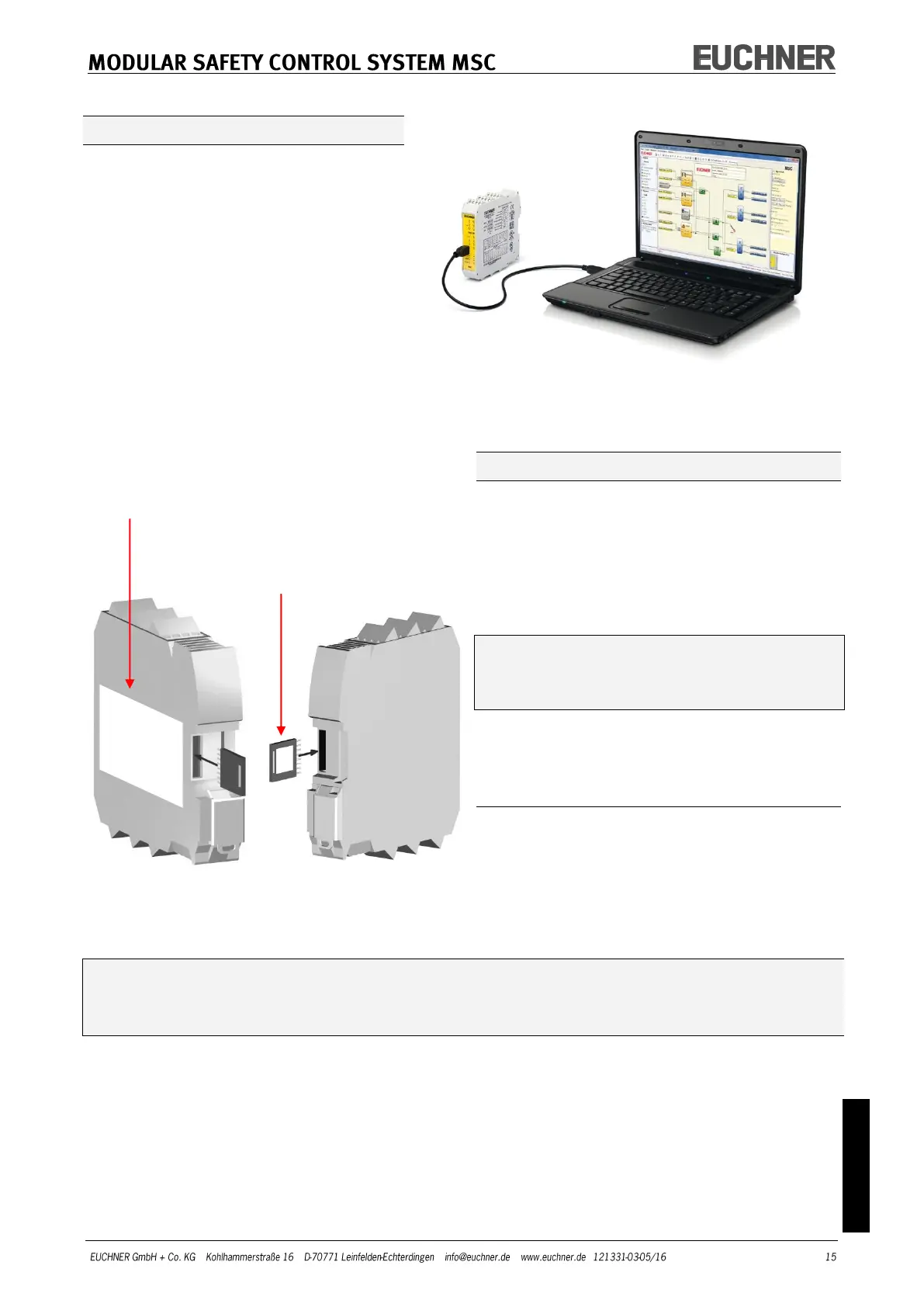

USB connection
The MSC base unit MSC-CB has a USB
2.0 port for the connection to a PC on
which
the configuration software EUCHNER
Safety Designer is installed.
A USB cable of appropriate size is
available as an accessory.
Figure 2 – USB 2.0 port on the front
LABEL WITH TECHNICAL DATA
M-A1 LABEL
Figure 3 – M-A1
MSC configuration memory (M-A1)
An optional backup memory card (called
M-A1) can be installed in the MSC base
unit MSC-CB for backing up the software
configuration parameters.
Every new project that is transferred from
the PC to MSC-CB is written to the memory
card M-A1.

Always switch off MSC-CB before log-
ging onto or logging off from the M-
A1.
Insert card in the slot on the rear of the
MSC-CB (direction as shown in Figure 3 –
M-A1).
MULTIPLE LOAD function
To configure several MSC-CB modules
without using a PC and the USB port, the
required configuration can be saved on
one memory card M-A1 and then down-
loaded from there to the MSC-CB modules
to be configured.
 If the file on the M-A1 memory card is not identical to the file in the MSC-CB, the con-
figuration data in the MSC-CB are overwritten and therefore permanently deleted.
WARNING: ALL THE DATA THAT WERE IN THE MSC-CB WILL BE LOST.
