COUNTER OPERATORS
The operators of type COUNTER enable the user to generate a signal (TRUE) as soon as the
count entered is reached.

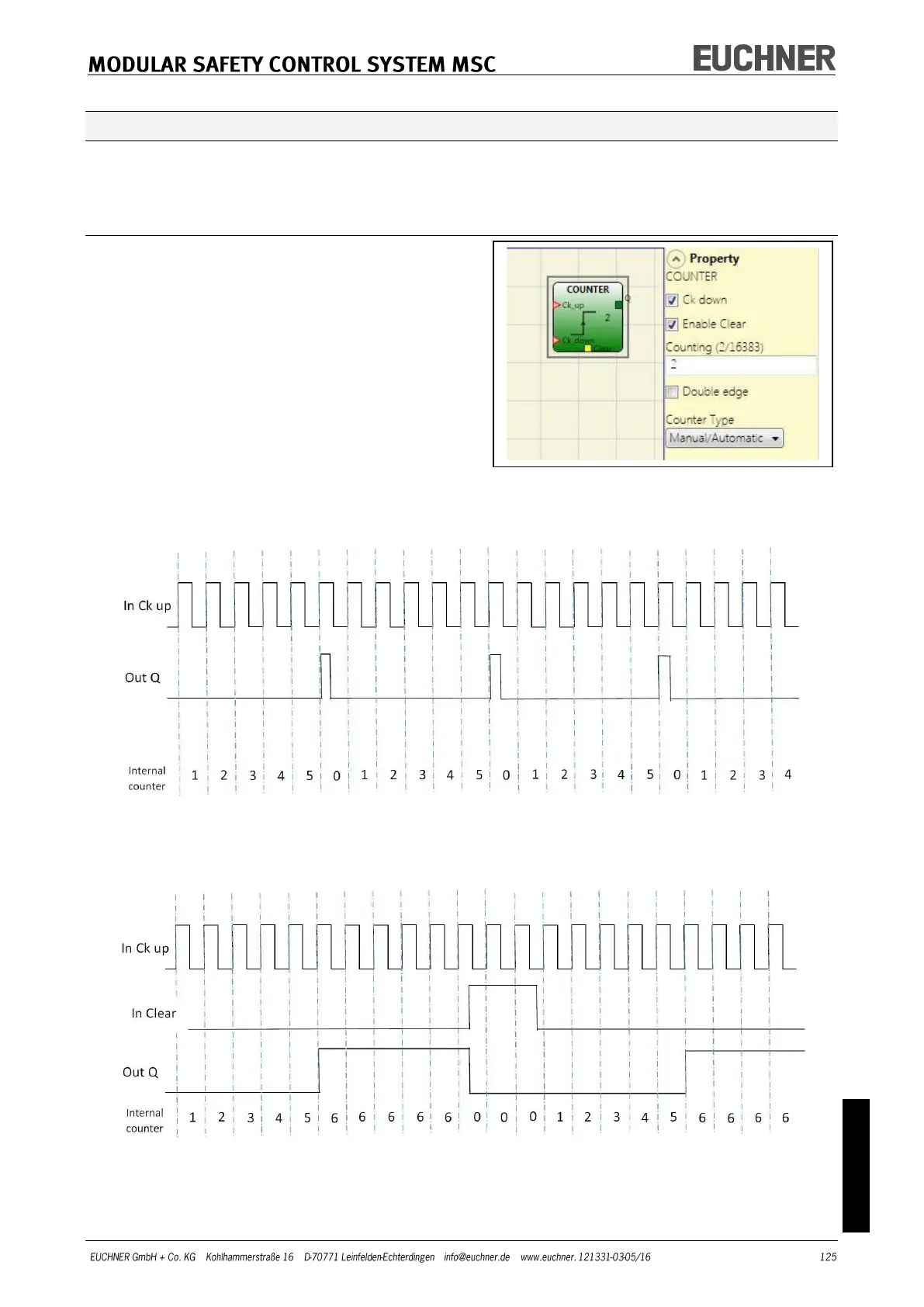

COUNTER (max. number = 16)
The COUNTER operator is a pulse counter.
There are three operating modes:
o AUTOMATIC
o MANUAL
o MANUAL+AUTOMATIC
The counter reading is 6 for all examples:
1) The counter generates a pulse with a length that corresponds to the reaction time as
soon as the count entered is reached. This is the default mode if the CLEAR pin is not
activated.
2) The counter sets the Q output to 1 (TRUE) as soon as the count entered is reached.
The Q output changes to 0 (FALSE) if the CLEAR signal is activated.
3) The counter generates a pulse with a length that corresponds to the reaction time as
soon as the count entered is reached. If the CLEAR signal is activated, the internal
counter returns to 0.
