Manual Reset:

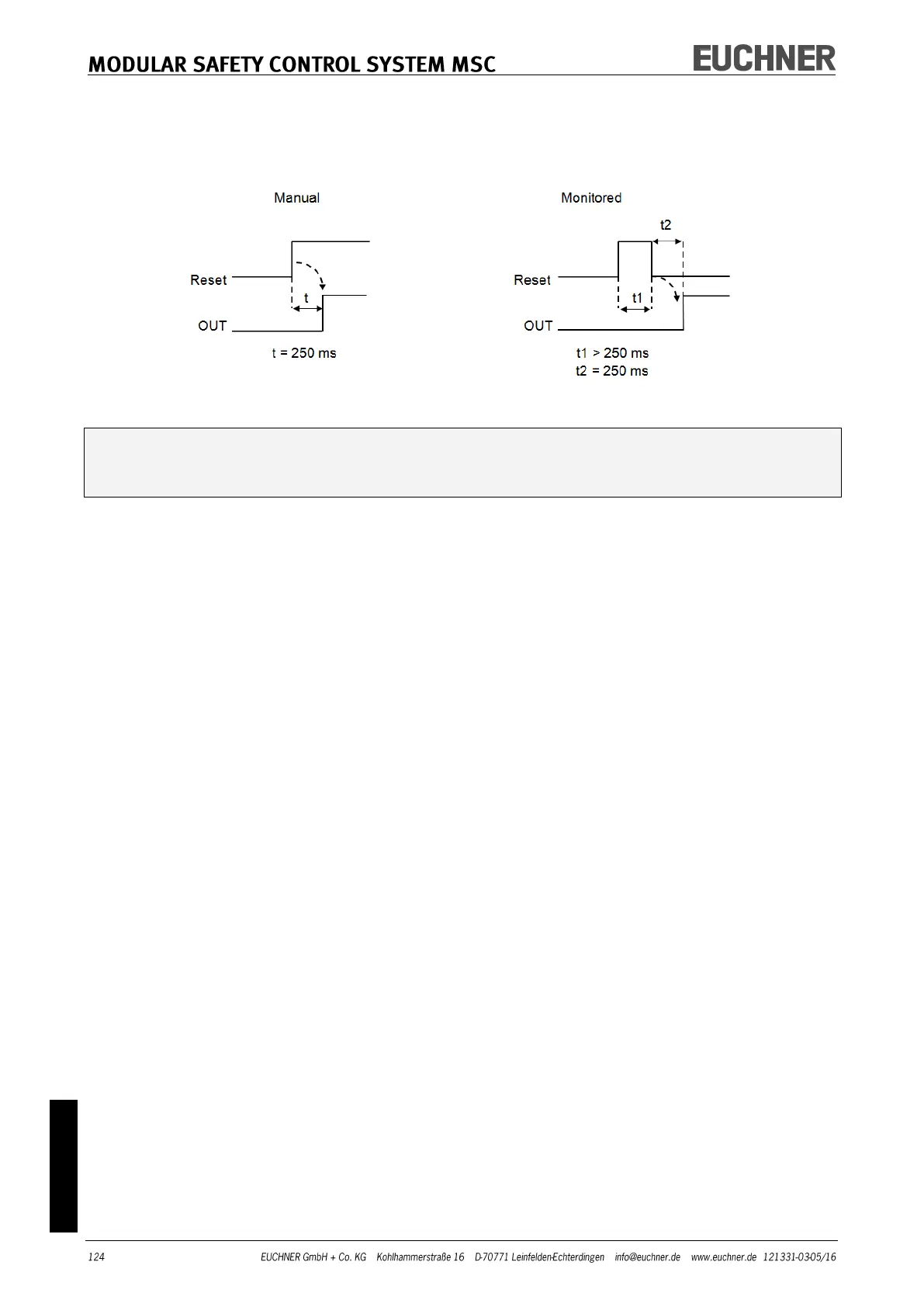

There are two types of reset: "Manual" and "Monitored". On the selection of the manual
reset, the system only checks the signal transition from 0 to 1. With the monitored reset
the double transition from 0 to 1 and then back to 0 is checked.
Important: The input after the inputs used by the function block must be used for manual
reset. Example: If Input1 and Input2 are used for the function block, Input3 must be used
for the reset.
Enable Error Out: This option can be selected to enable a signal (ERROR Out) for signaling a mal-
function in the locking. If Error Out = "1" (TRUE), there is an error in the interlocking.
