EUCHNER MSC - 8.3.8. Module AZ-FO4 (Figure 21)

English
SPM0, SPM1, SPM2 (Figure 18)
SIGNIFICANCE
LED
RUN
IN FAIL
EXT FAIL
SEL
ENC*
PROX
SH
GREEN
RED
RED
ORANGE
YELLOW
YELLOW
YELLOW
Switch on – initial CHECK
ON
ON
ON
ON
ON
ON
ON
Table 34 – Start indication
SIGNIFICANCE
LED
RUN
IN FAIL
EXT FAIL
SEL
ENC*
PROX
SH
GREEN
RED
RED
ORANGE
YELLOW
YELLOW
YELLOW
NORMAL OPERATION
OFF
if the module is wait-
ing for the first mes-
sage from the base
unit
FLASHING
if no INPUT or
OUTPUT is requested
by the configuration
ON
if INPUT or OUTPUT
is requested by the
configuration
OFF
operation OK
OFF
operation OK
Indicates the
signal table
NODE_SEL0/1
ON
Encoder con-
nected and oper-
ational
ON
proximity switch
connected and
operational
OFF
axis in normal
speed range
ON
axis at standstill
FLASHING
axis at elevated
speed
Table 35 – Dynamic indication
* IF SPM0 MODULE NOT FITTED

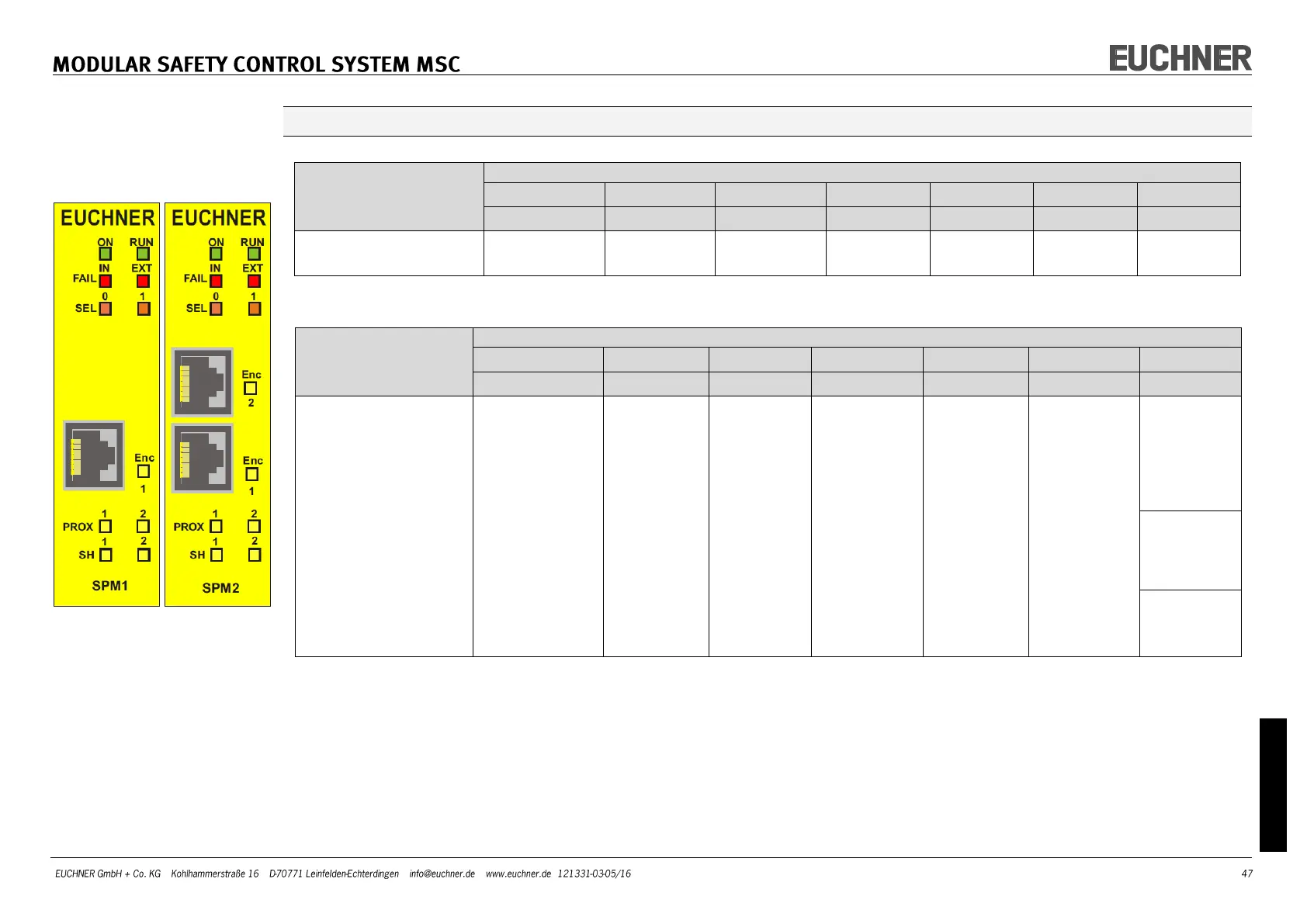

Figure 18 – SPM1, SPM2
