Automatic
The output is only activated, as per the configuration defined by EUCHNER Safety De-
signer, if 24 VDC are applied to the related input RESTART_FBK.

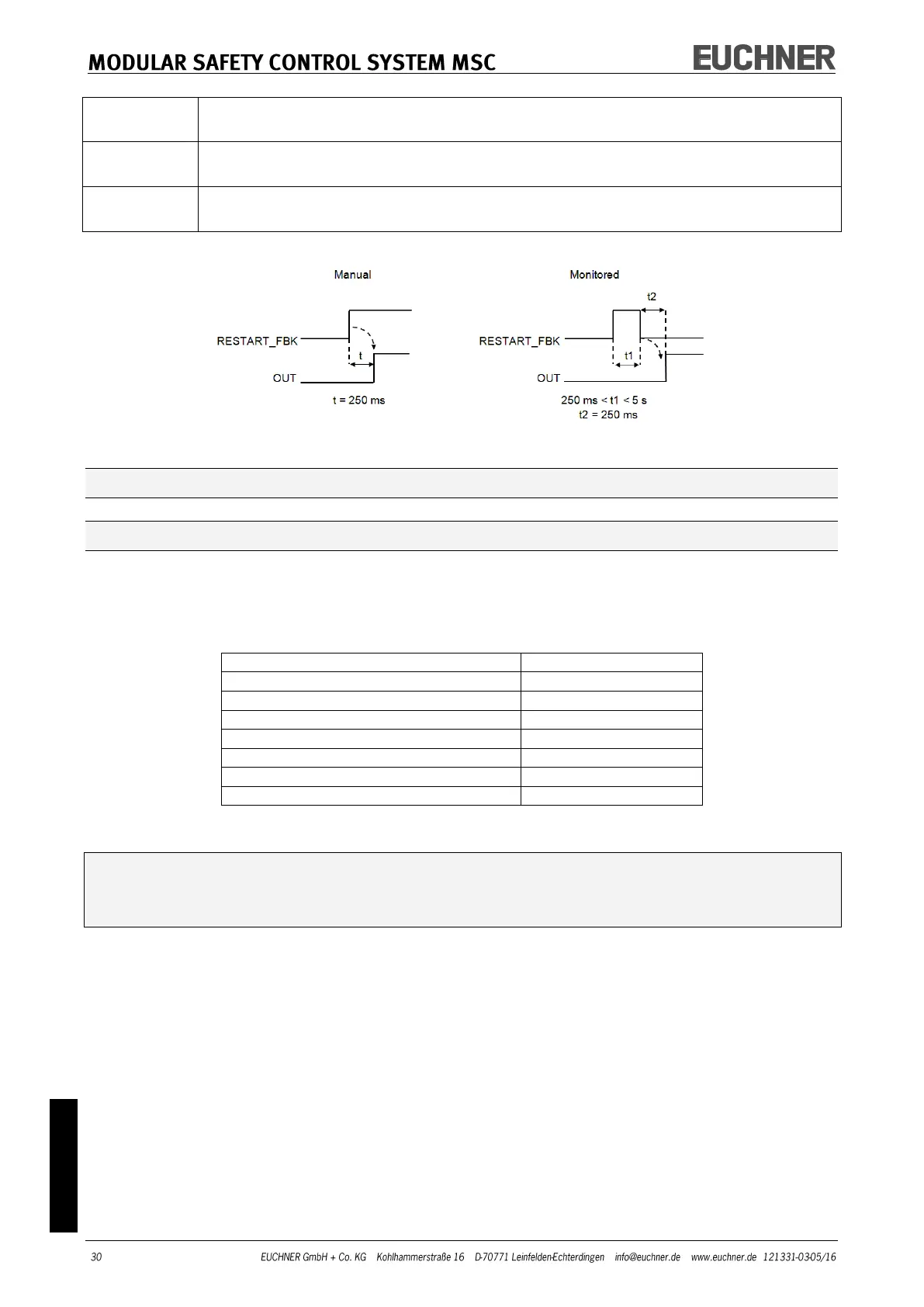

Manual
The output is only activated, as per the configuration defined by EUCHNER Safety Designer,
if there is the logical transition 0-->1 on related input RESTART_FBK.
Monitored
The output is only activated, as per the configuration defined by EUCHNER Safety Designer,
if there is the logical transition 0-->1-->0 on related input RESTART_FBK.
Table 14
SAFETY RELAY (AZ-FO4/AZ-FO4O8)
Characteristics of the output circuit
The modules AZ-FO4/AZ-FO4O8 have safety relays with positively driven contacts with
1 normally open contact and 1 normally closed feedback loop contact. The modules
AZ-FO4/AZ-FO4O8 contain 4 safety relays.
Excitation voltage
17–31 VDC
Switching voltage, min.,
10 VDC
Switching current min.
20 mA
Switching voltage max. (DC)
250 VDC
Switching voltage max. (AC)
400 VAC
Switching current, max.
6 A
Response time
12 ms
Mechanical life contacts
> 20 x 10
6
Table 15

To ensure correct isolation and to prevent the risk of premature aging or damage to
the relay, each output cable is to be protected using a 4 A quick-blow fuse. In addi-
tion, the load characteristics must correspond to the information in Table 15.
