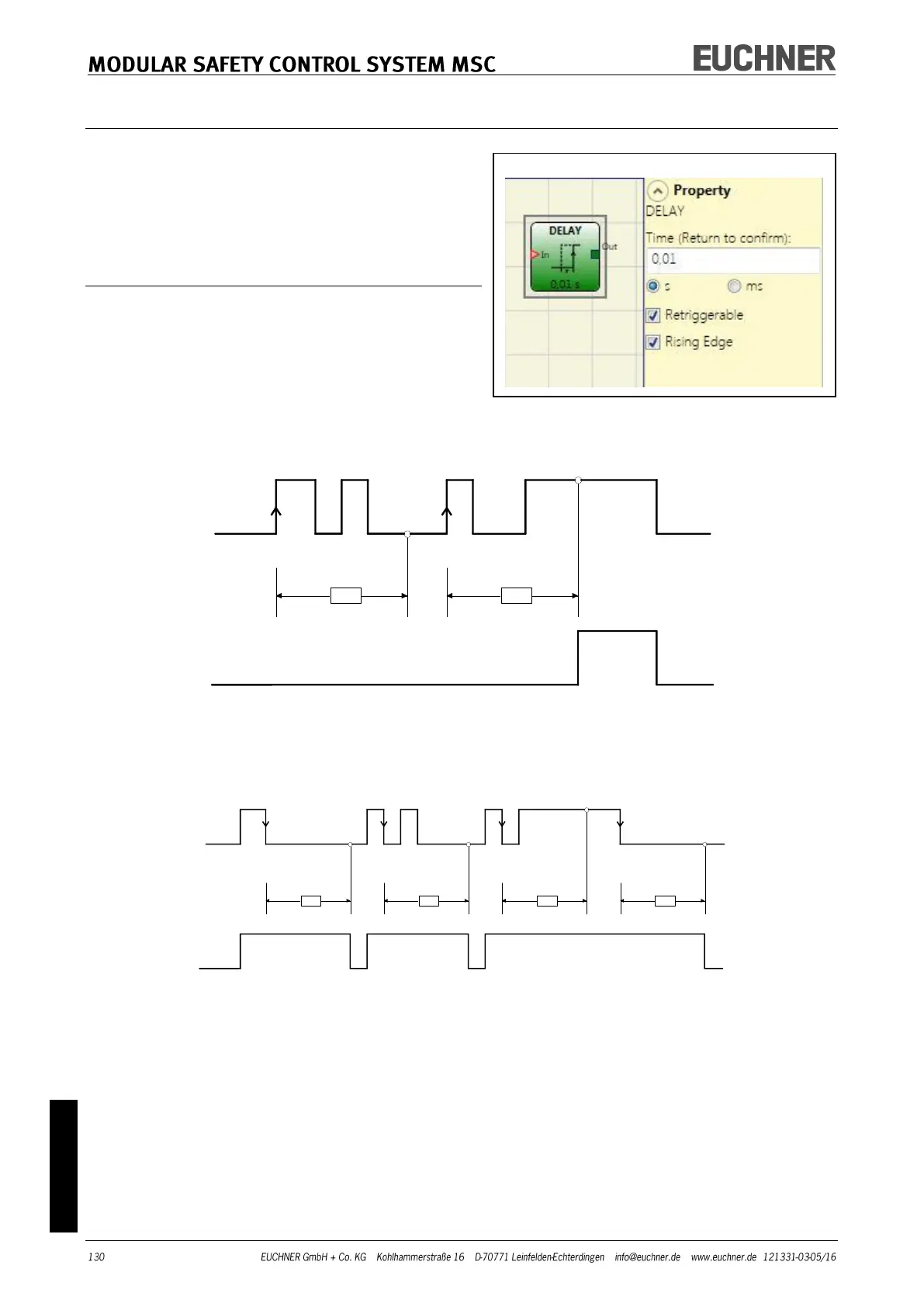

DELAY
The DELAY operator makes it possible to use a
signal delay and switches the output to "1"
(TRUE) after the time set if the status of the
signal on the input changes.
Parameters
Time: The delay can be set to a value be-
tween 10 ms and 1098.3 s.
Leading Edge: A switch-on delay is selected
with this setting. If selected, the delay starts
with the rising edge on the input signal. Then the output is set to "1" (TRUE) and remains
in this state for the time set, as long as the input remains at "1" (TRUE).
In
Out
T T
It not selected the logic is reversed. A switch-off delay is selected with this setting. The
output is set to "1" (TRUE) by a rising edge on the input signal and the delay starts on the
falling edge of the input signal. At the end of the time set the output is set to "0" (FALSE),
provided "0" (FALSE) is present on the input, otherwise it remains at "1" (TRUE).
In
Out
T T T T
Retriggerable: If selected, the time is reset on each status change on the input.
