English
Conditions to be checked on activating the override function
"With Sensors
Occupied" selected
Sensor
occupied
Light cur-
tain occu-
pied
Input
Override
Output
X
X
-
0
1
1
-
-
X
0
1
1
X
-
0
1
1
X
X
0
1
1
Timeout (s): Sets the time within which the override function must be ended from 10 s to
infinite.
Override Mode: Makes it possible to configure the start of the override function (pulsed or
state triggered).
With OverOut: Makes it possible to activate an active override signal output (active if
high).
With Request: Makes it possible to activate a signal output (active if high) to indicate that
the override function can be activated.
Manual Reset:
 If the RESET input is active (TRUE), the OUTPUT output on the function block is en-
abled.
 If the RESET input is not active (FALSE), the OUTPUT output on the function block
follows the OVERRIDE request.

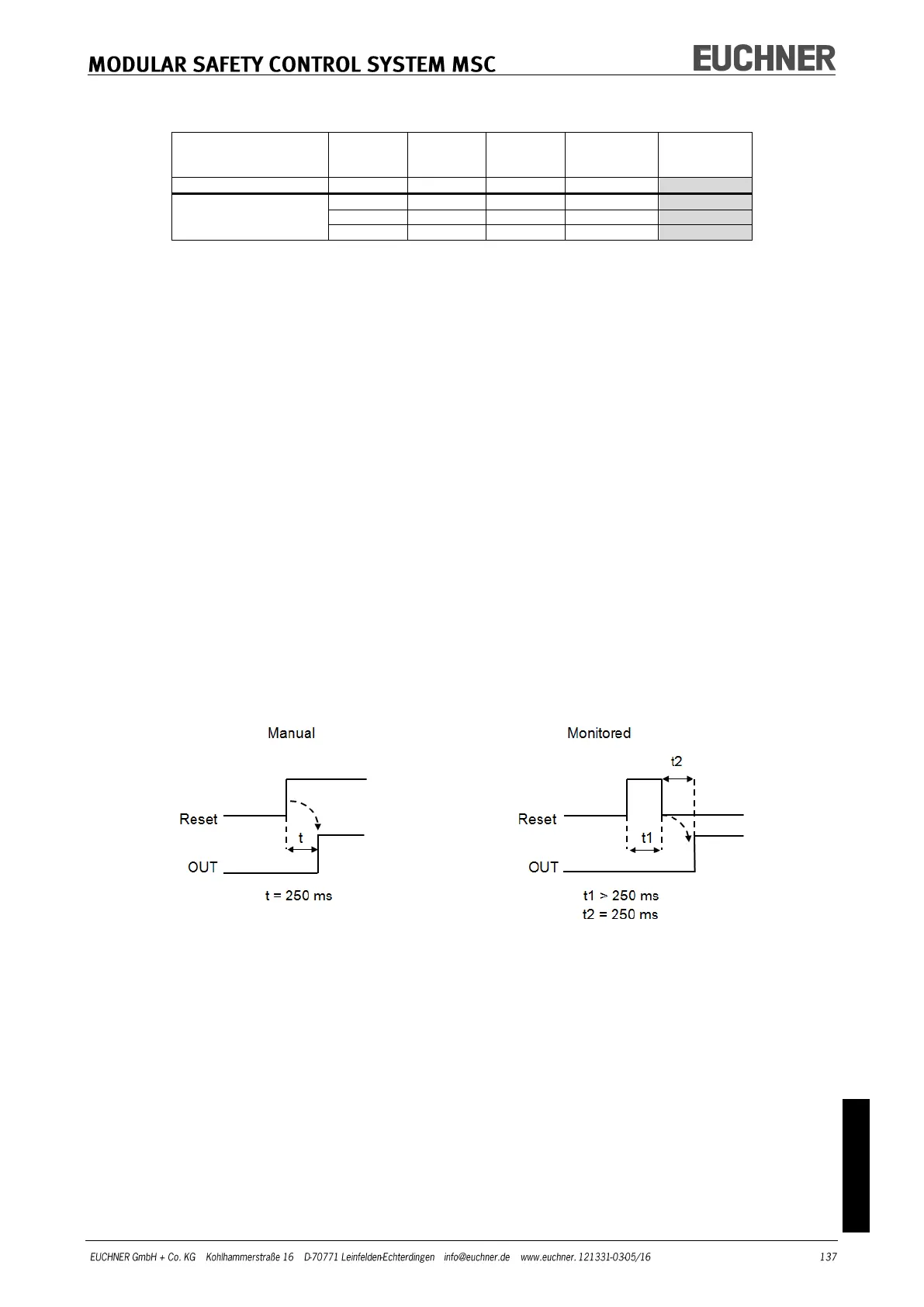

There are two types of reset: "Manual" and "Monitored". On the selection of the manual
reset, the system only checks the signal transition from 0 to 1. With the monitored reset
the double transition from 0 to 1 and then back to 0 is checked.
