CHAPTER 24
PAGE 9
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX

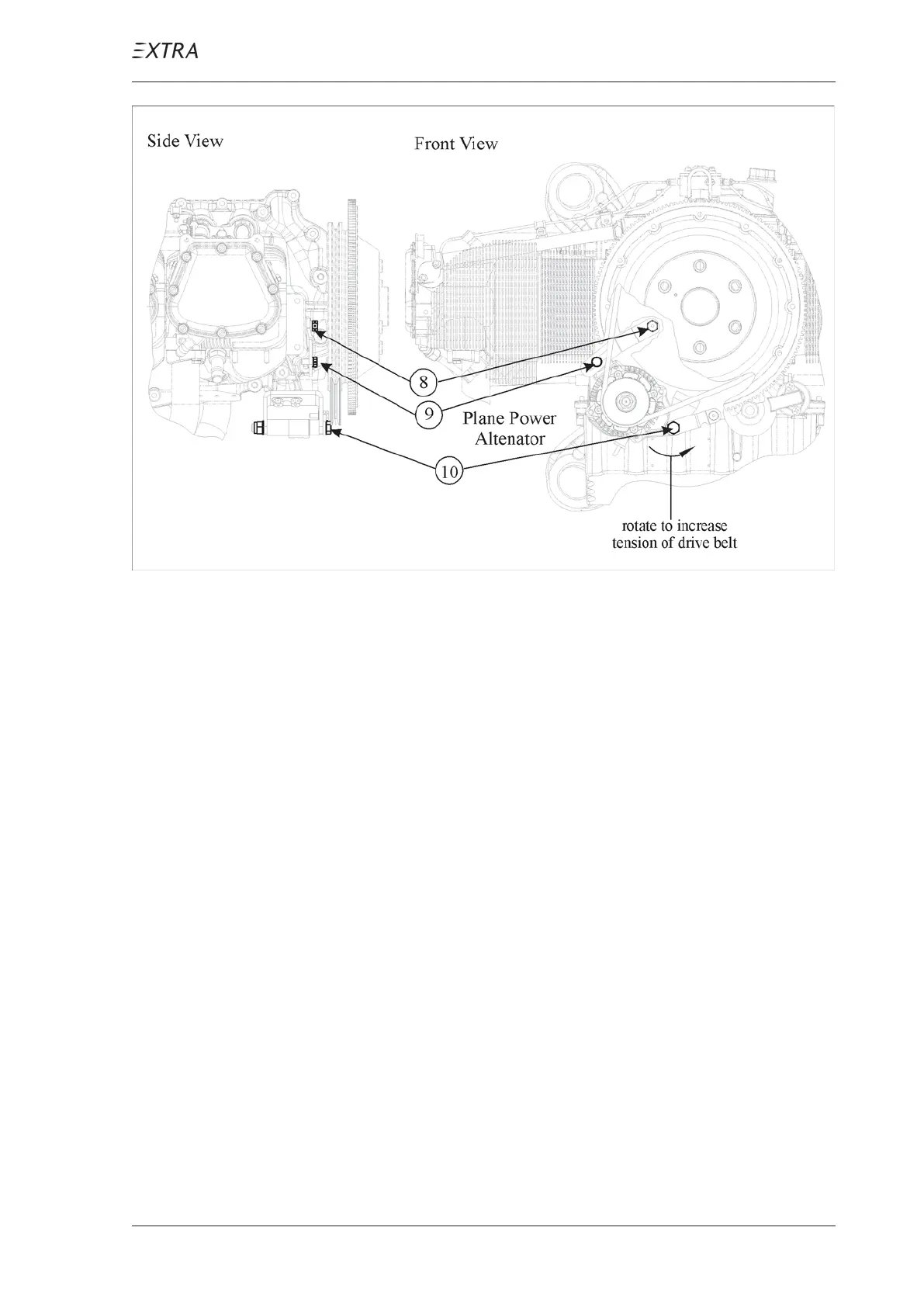

Figure 3, sheet 2 Alternator and Accessories
Removal
1 Remove the upper and lower part of the cowling (ref. chap-
ter 71).
2 Disconnect the wiring of the alternator.
3a (Bosch) Remove cotter pins at castle nuts (2 & 3, figure 3)
and safety wire at bolt (1).
3b (Prestolite) Remove cotter pin at castle nut (7, figure 3)
and safety wires at bolts (4 & 5).
3c (Plane Power) Remove safety wires at bolts (8 & 9, figure
3).
4a (Bosch) Slightly loosen bolt (1) and castle nuts at bolts
(2 & 3) to release drive belt tension.
4b (Prestolite) Slightly loosen bolts (4 & 5) and castle nut (7)
to release drive belt tension.
4c (Plane Power) Slightly loosen bolts (8 & 9) and stop nut at
bolt (10) to release drive belt tension.
5 Rotate the alternator clockwise around bolt connection (3).
