Extra 300LX - Elevator and Trim Tab Control; Figure 17

CHAPTER 27
PAGE 25
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX

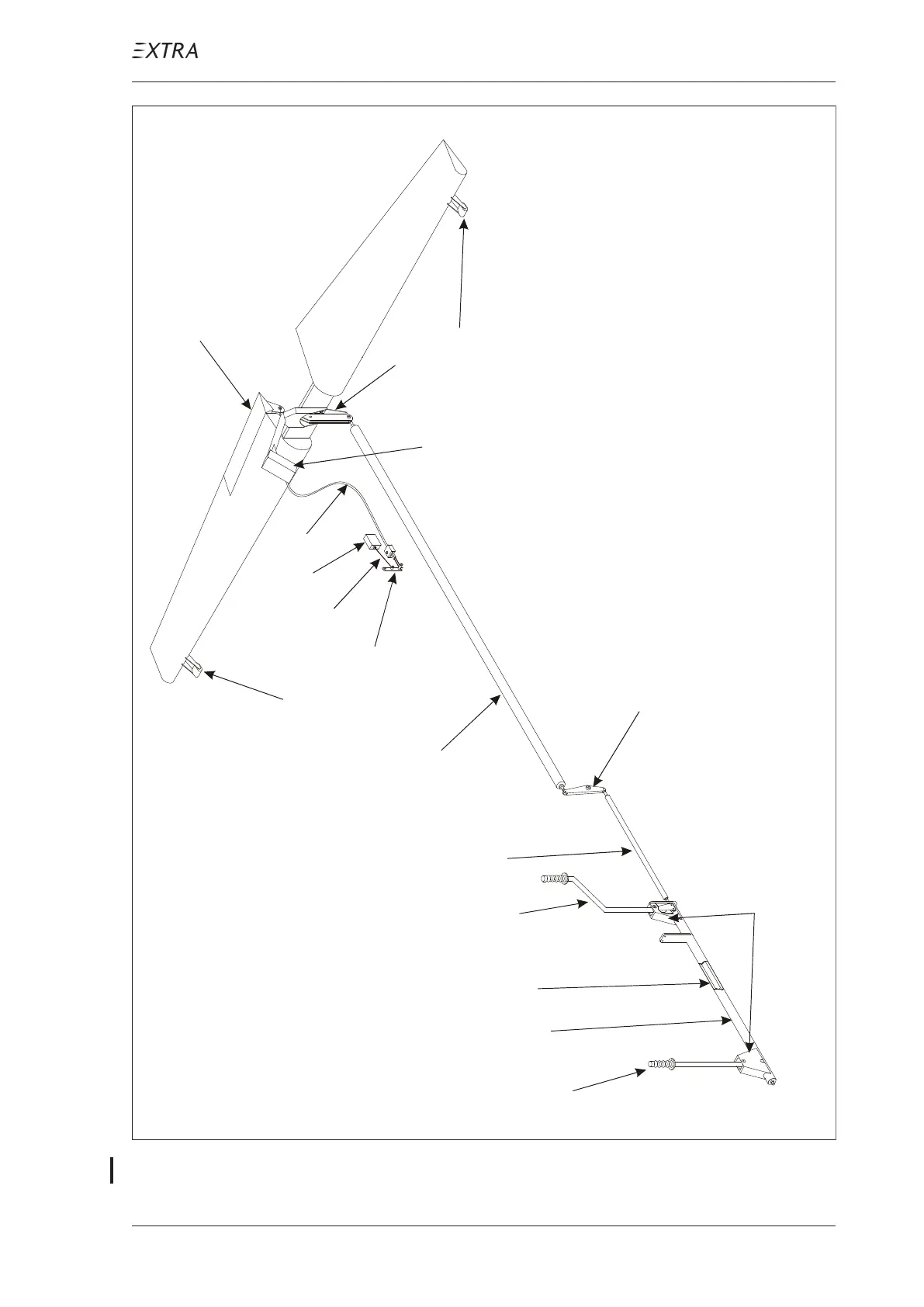

Figure 17 Elevator and Trim Tab Control
Legend:
2 torque tube 3 push-pull rod 5trim lever 6 trim servo rod 7trim servo
15 travel stops
1 front seat stick 4rear seat stick 8 trim control bowden cable mechanism 9 mass balance weights
10 trim tab
11 elevator
12 elevator actuator arm 13 mass balance weight 14 rocker type bellcrank
1
2
3
4
3
3
5
6
7
8
9
9
10
11
12
13
15
14
