CHAPTER 73
PAGE 5
MAINTENANCE MANUAL EXTRA 330LX
PAGE DATE: 1. March 2011
Installation
Install in reverse sequence of removal observing the following
items:
1 Install throttle control cable, ensure distance between clamp
sheet and clamp block is 705 mm (refer to figure 2).

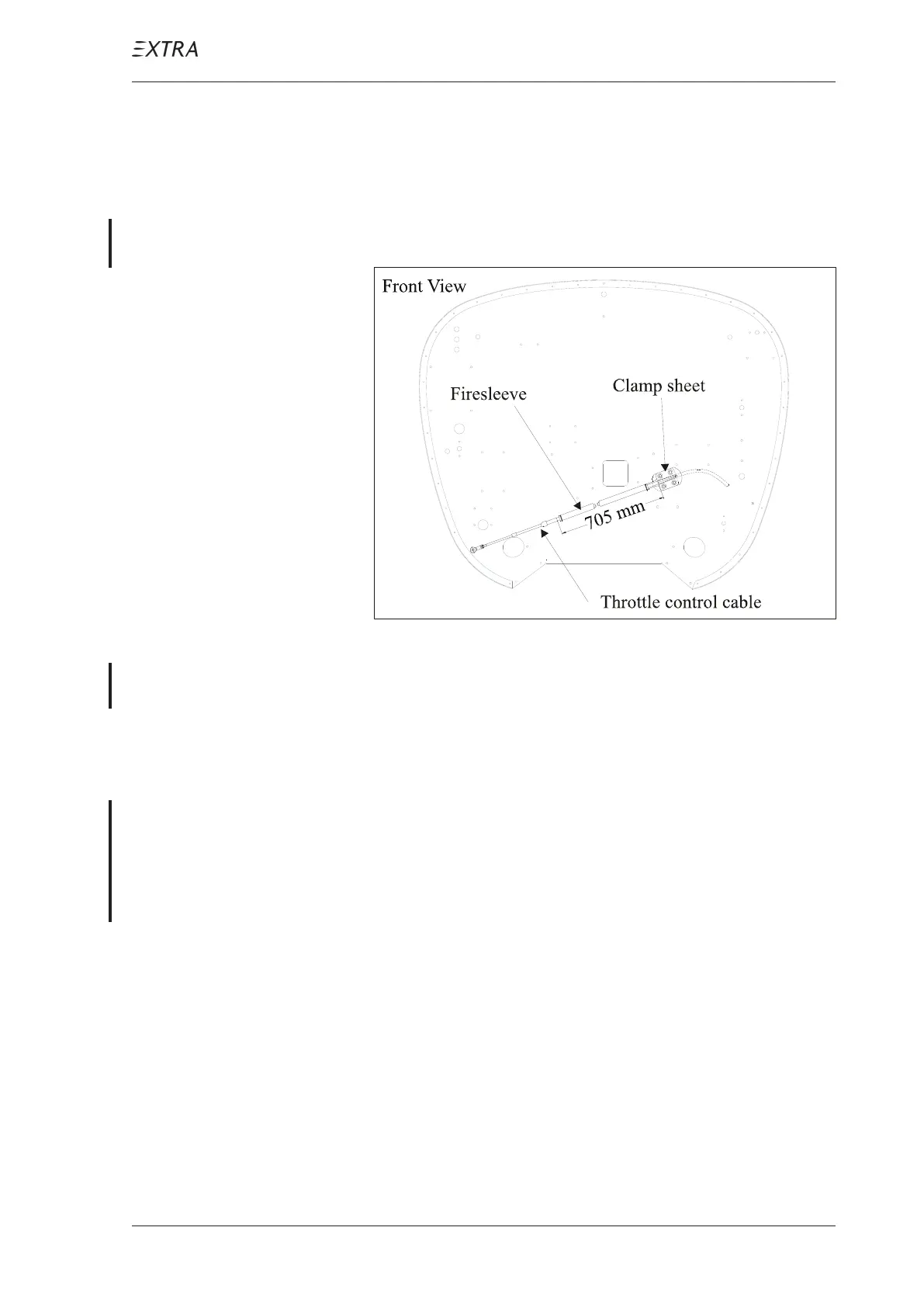

Figure 2 Firesleeve Length
2 Renew the sealing of the firewall break through at the en-
gine side of the firewall. Use PRC-812 (Products Research
& Chemical Corp., USA) firewall sealant. Let the sealant
slightly cure before thightening the clamp sheet attachment
bolts. This will strengthen the clamping.
3 Install both rod ends to the control cable terminals. Ensure
thread of control cable terminal is visible in the rod end
inspection hole.
4 Tighten the castle nuts at both rod end attachment bolts
slightly. Ensure movability of levers.
PAGE DATE: 13. September 2013
