CHAPTER 73
PAGE 15
MAINTENANCE MANUAL EXTRA 330LX
PAGE DATE: 14. August 2015

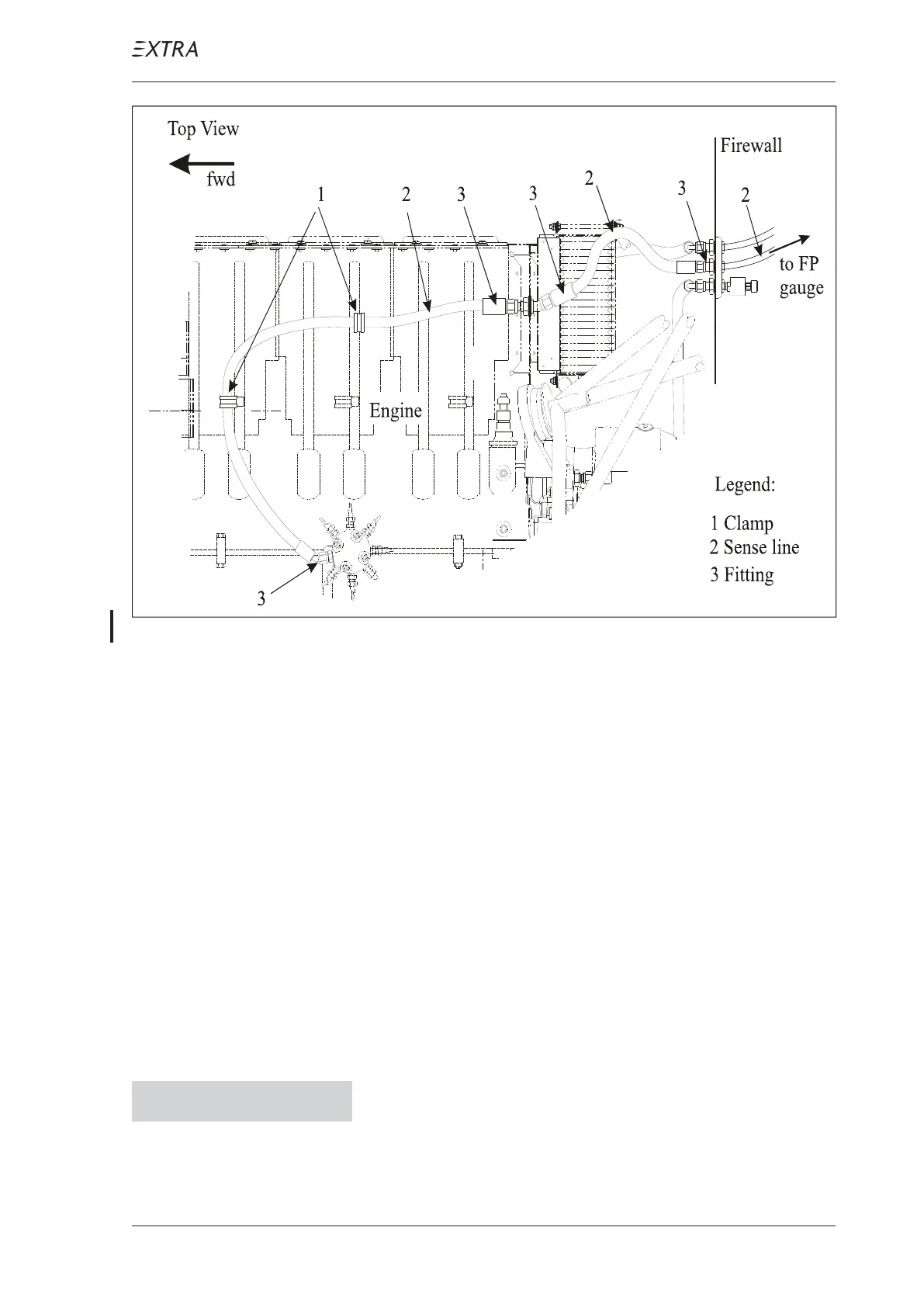

Figure 9 Fuel Pressure Sense Line
73-30-11 Fuel Pressure Gauge
Removal/Installation
Refer to Chapter 31.
73-30-12 Sense Line
Removal/Installation
1 Remove cowling per Chapter 71.
2 Remove clamps.
N O T I C E Pick up spilling fluid, when disconnecting a sense line.
3 Disconnect the sense line from the fitting.
