6 Clean sealing surfaces mechanically and with Acetone.
7 Install in reverse sequence of removal after applying 3M
Brand Fuel Resistant Coating 776 (3M, St. Paul, USA) for
sealing to both sides of the sealing ring.
28-40-04 Fuel Quantity Transducer (Wing Tank)
Removal/Installation
(refer to figure 13)
1 Disconnect the electrical wiring.
2 Remove inspection door as per chapter 28-10-04
3 Remove tank unit bolts (1).
4 Remove the retainer ring (3) the tank unit (4) and the seal-
ing ring (2).

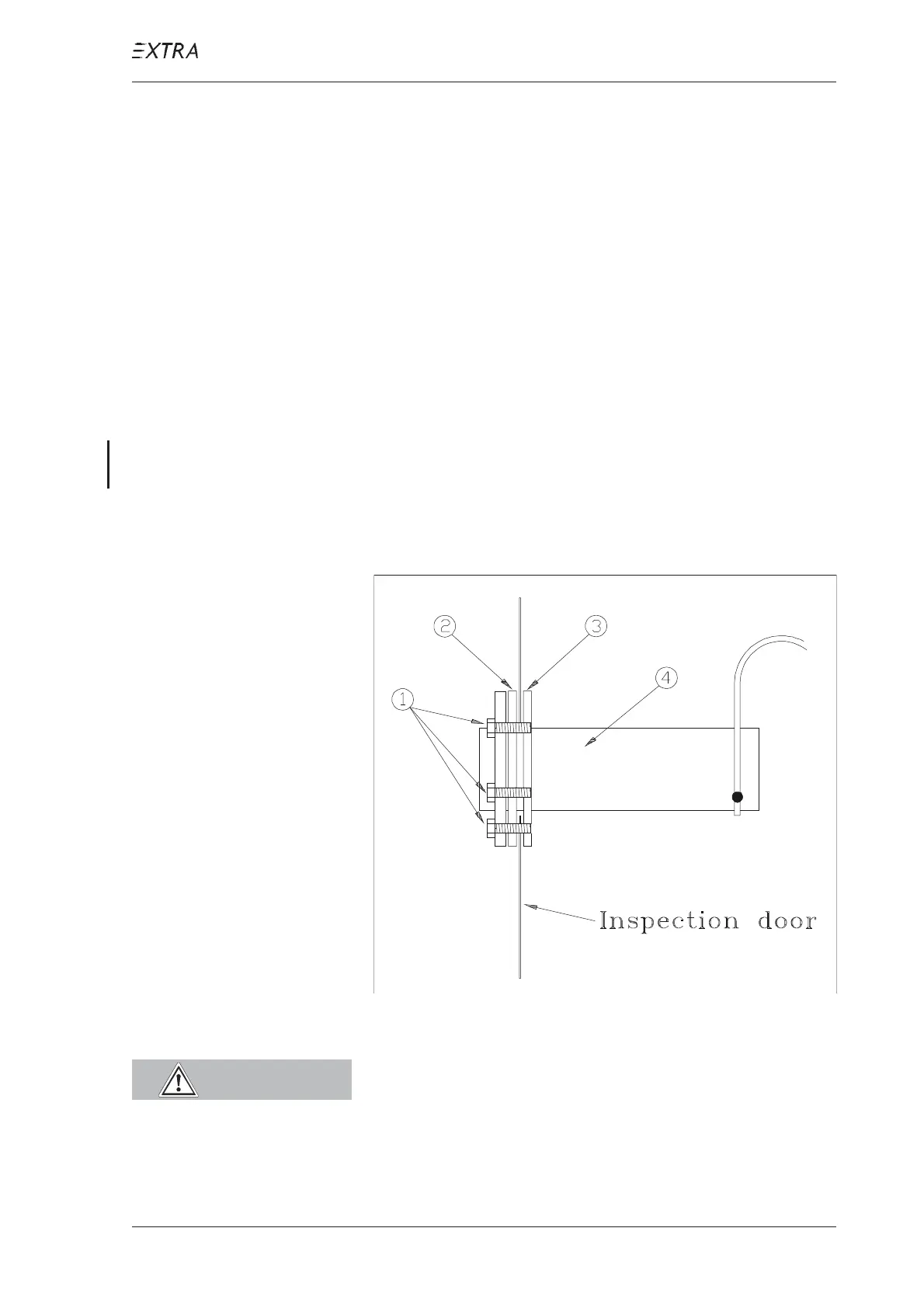

Figure 13 Fuel Quantity Transducer (Wing Tank)
Removal/Installation
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent contain-
ers covered when not in use.
