CHAPTER 27
PAGE 10
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
27-00-03 Front Control Stick
Removal/Installation
Refer to figure 9.
1 Remove front seat per chapter 25-10-01.
2 Disconnect the electrical wiring.
3 Remove the control stick attachment bolt (1).
4 Disconnect the control stick from the control rod per chap-
ter 27-00-01. Use the control stick to move the control rod
attachment bolt within the mounting hole area (2).

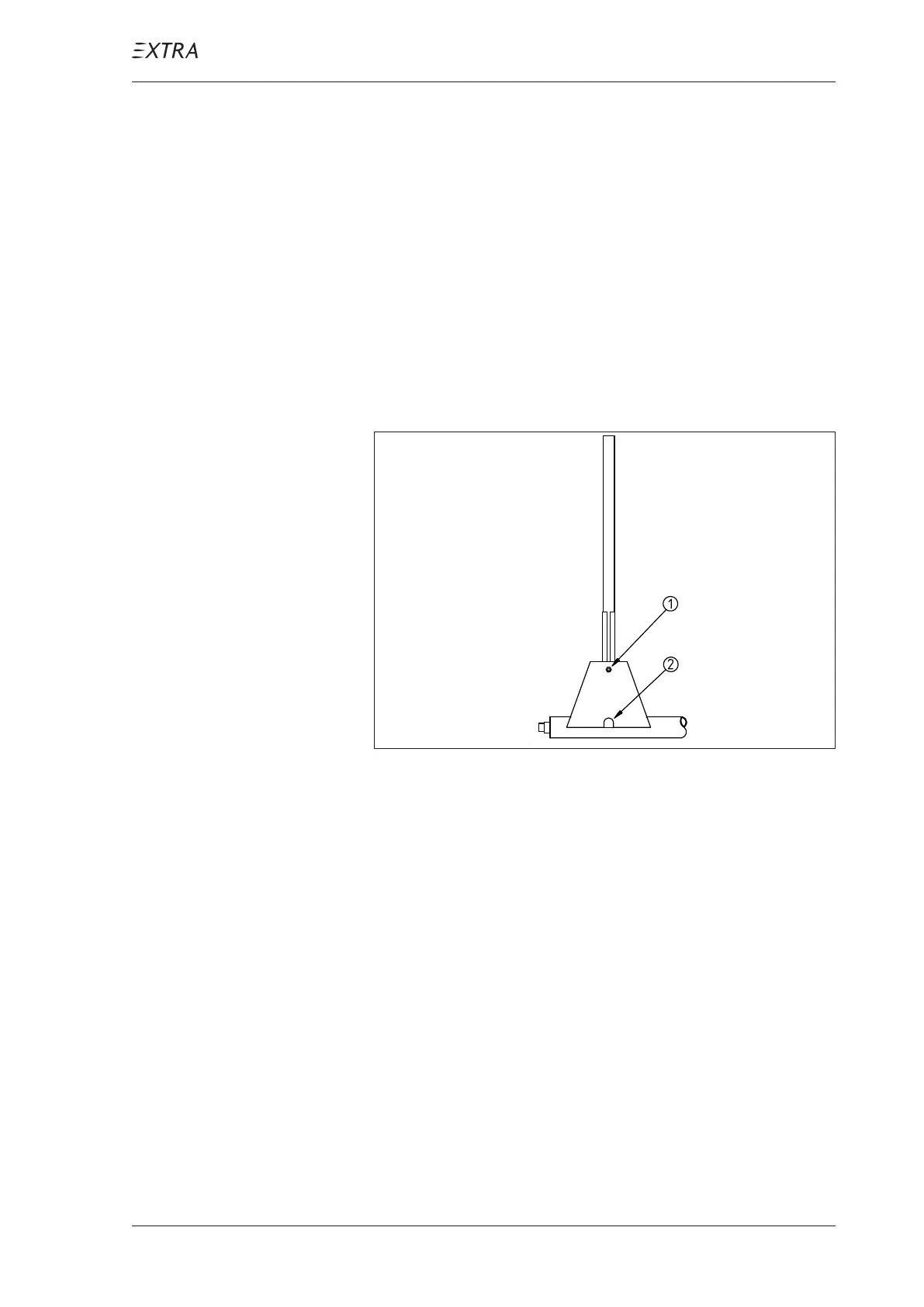

Figure 9 Front Control Stick Removal/Installation
5 Remove the control stick.
6 Reverse procedure to install the control stick. Replace the
selflocking nuts. Observe the first note of chapter 27-00-
00.
7 Check for potential chafing of the wiring after installation.
