CHAPTER 28
PAGE 10
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
28-10-03 Acro Tank Flop Tube
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Disconnect the fuel lines and the Tee fitting (4).
3 Remove the acro tank as per chapter 28-10-02.
4 Loosen the flop tube fitting (3) and take the flop tube as-
sembly (2) out of the acro tank (1).
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent contain-
ers covered when not in use.
5 Clean the sealing surfaces mechanically and with Acetone.
N O T E If the flop tube assembly has to be replaced install a
complete new assembly.
6 Install in reverse sequence of removal after applying Loctite
577 to the flop tube fitting thread.

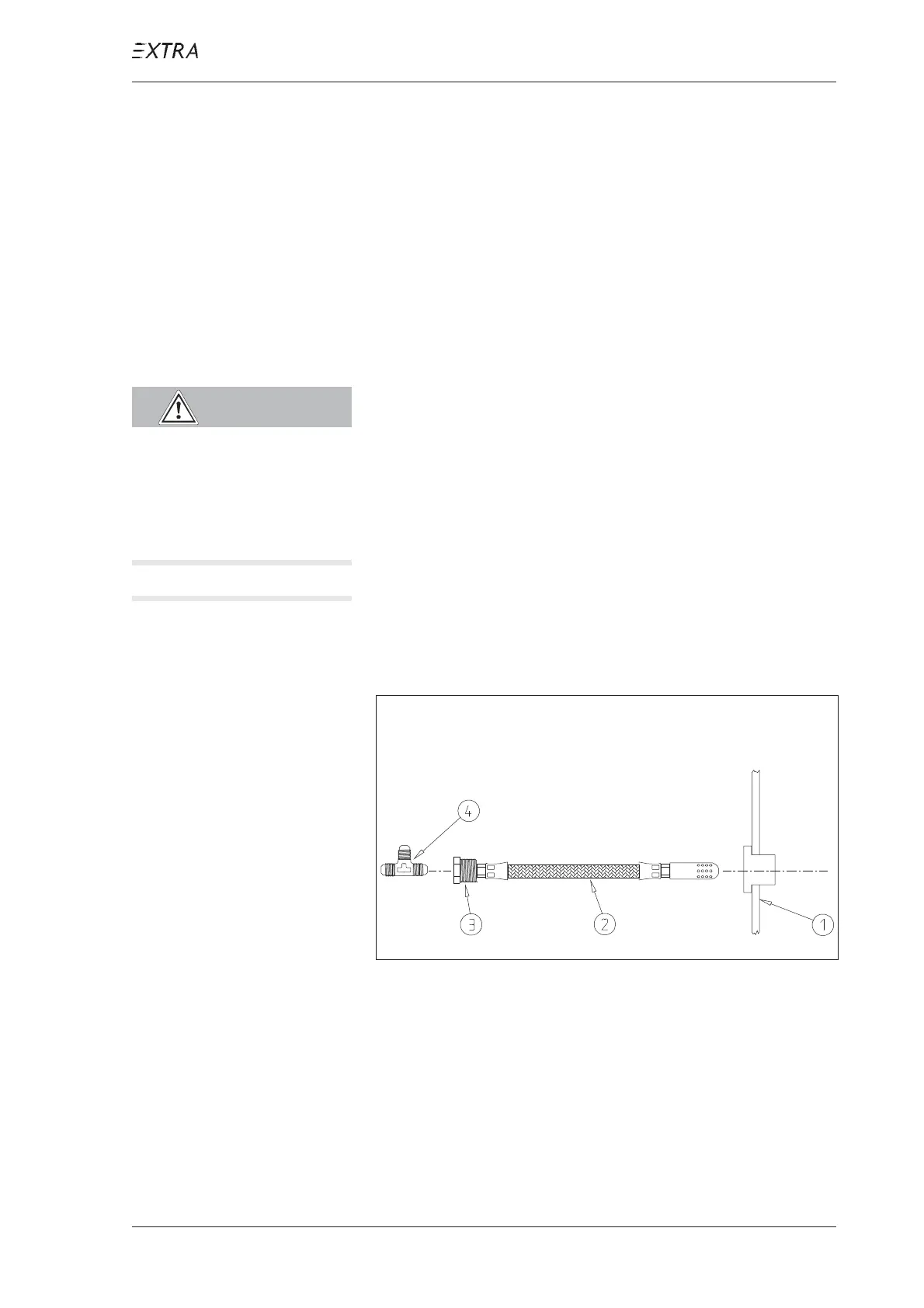

Figure 3 Flop Tube Removal/Installation
