CHAPTER 27
PAGE 22
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX
I M P O R T A N T Clamping has to be performed in accordance with the
Service Bulletin 300-1-93 and the Instruction No. 32 of
the National Telephone Supply Co., Cleveland Ohio.
16 Consider to let a distance of 1 mm between the thimble and
the sleeve and clamp the sleeve.
17 Cut the free end of the cable 20 mm in front of the sleeve.
18 Slip the 80 mm 771095 shrinking sleeve on the cable end
and the protective hose, center on the protective hose end
and heat up with a heat gun.
19 Slip the other 80 mm 771095 shrinking sleeve on the front
end of the protective hose, center on the protective hose
end and heat up with a heat gun.
20 Remove the rear pedal template.
21 Mount the pre-assembled shorter control cable to the front
pedal using the shackle.
22 Thread the free end of the control cable through the pulley,
the front fairleads and the pre-installed NICOPRESS
18-3-M or 28-3-M sleeves.

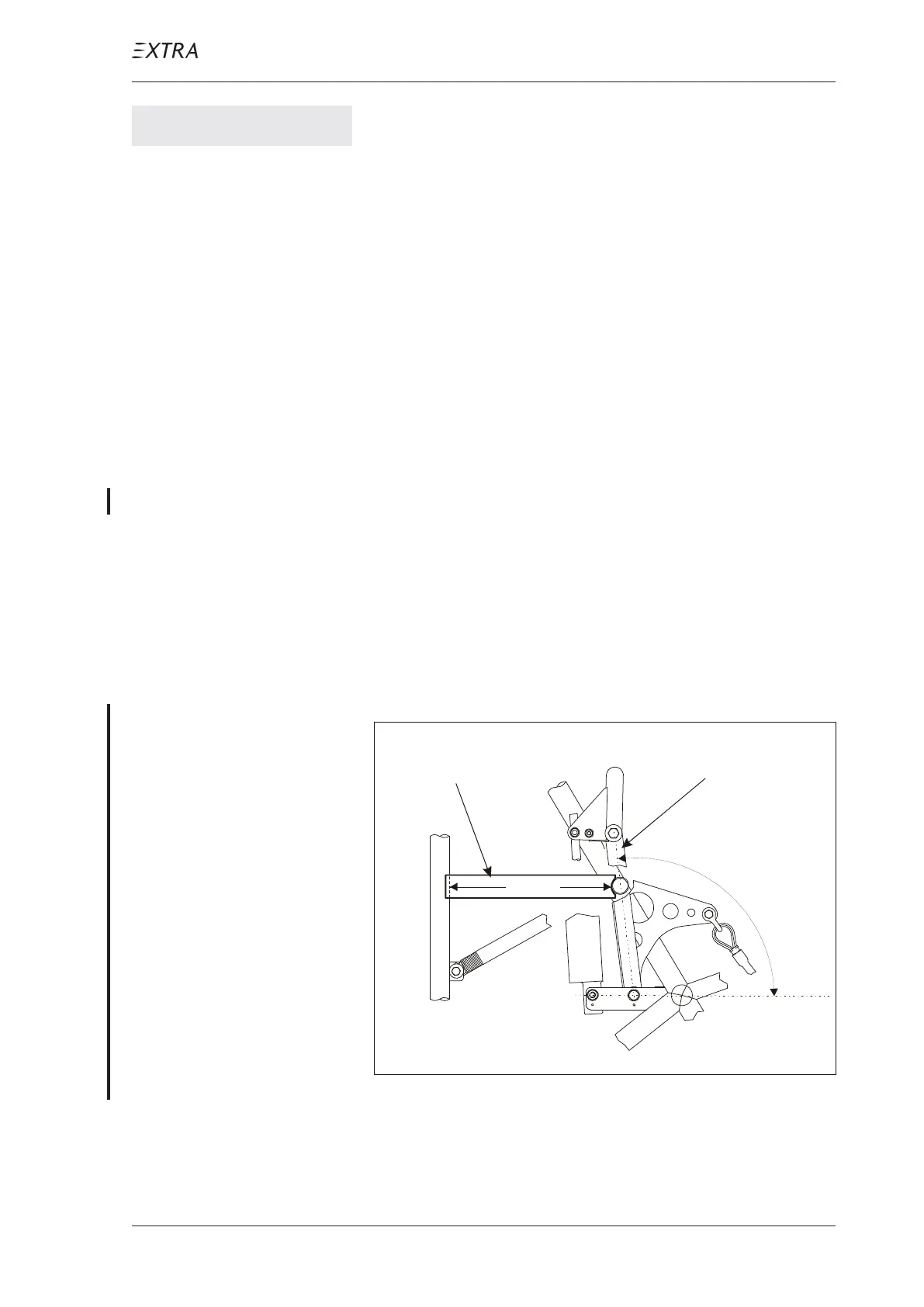

23 Fix the front pedal in almost vertical position (97° relative
to the footres
t using the template as shown on Figure 16).
Template
Front pedal
169 mm
97°
Figure 16 Front Pedal Template
24 Stretch the shorter control cable with a force that is equiva-
lent to the tractive effort of the front pedal retracting spring.
