CHAPTER 28
PAGE 11
PAGE DATE: 14 August 2015
MAINTENANCE MANUAL EXTRA 330LX
28-10-04 Wing Tank Inspection Door
Removal/Installation
1 Drain the fuel system per Chapter 12-10-02.
2 Disconnect the ground bonding leads and if necessary the
electrical wiring of the lever-type tank unit (3, Figure 4).
3 Remove the inspection door bolts.
4 Remove the inspection door flange (1).
5 Push the inspection door (2) into the tank, then turn and
remove.
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent contain-
ers covered when not in use.
6 Clean the sealing surfaces mechanically and with Acetone.
7 Install in reverse sequence of removal after applying 3M
Brand Fuel Resistant Coating 776 (3M, St. Paul, USA) to
the sealing surfaces (inspection door and tank root rib).

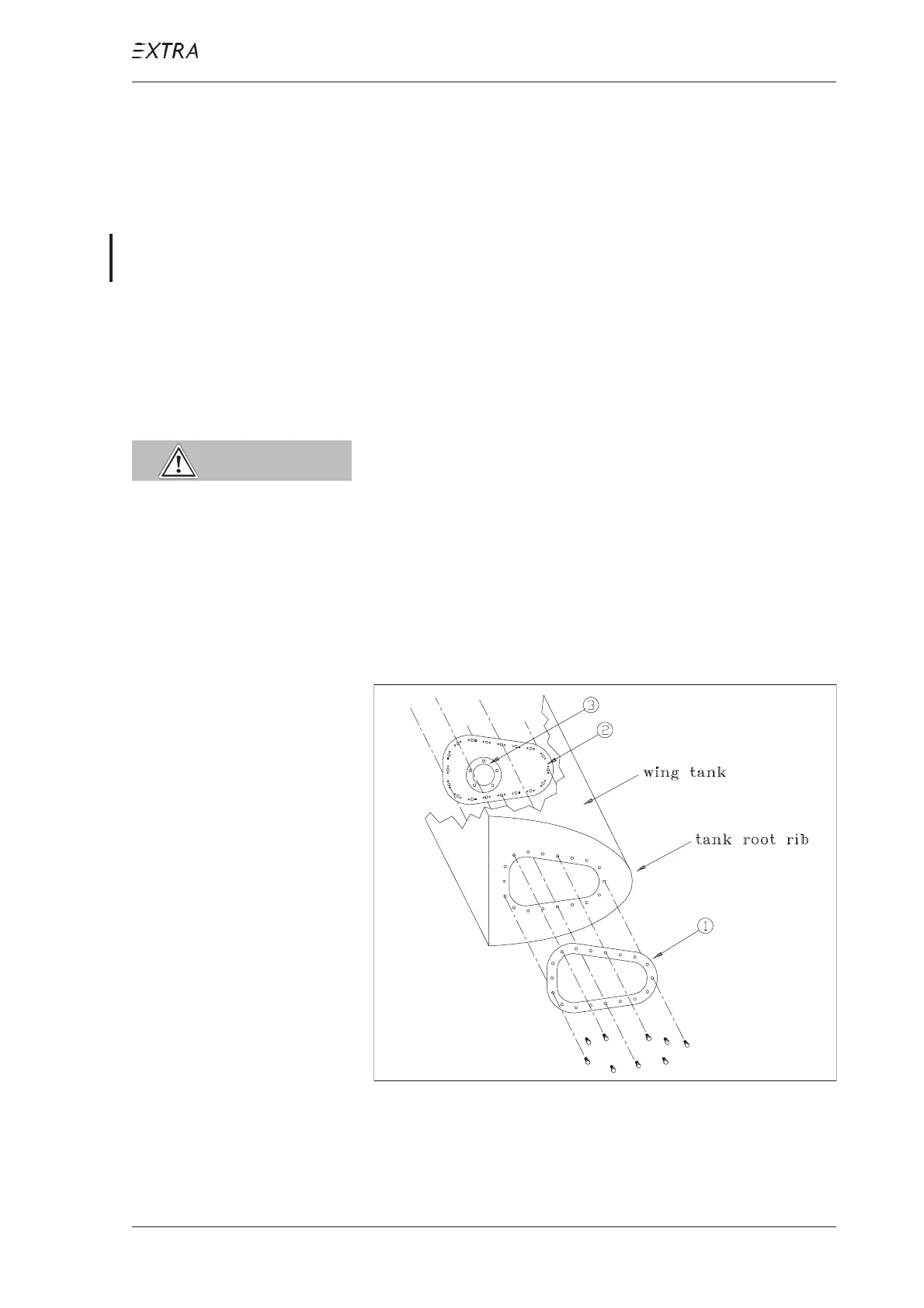

Figure 4 Inspection Door Removal/Installation
