25-10-03 Seat Belts
(Refer to figure 1) Each seat is equipped with a special
aerobatic seat belt/shoulder harnesses from the manufac-
turer "Hooker custom Harness". Such an assembly of straps
consists of a right and left shoulder harness, two right and
two left seat belts and a crotch strap.

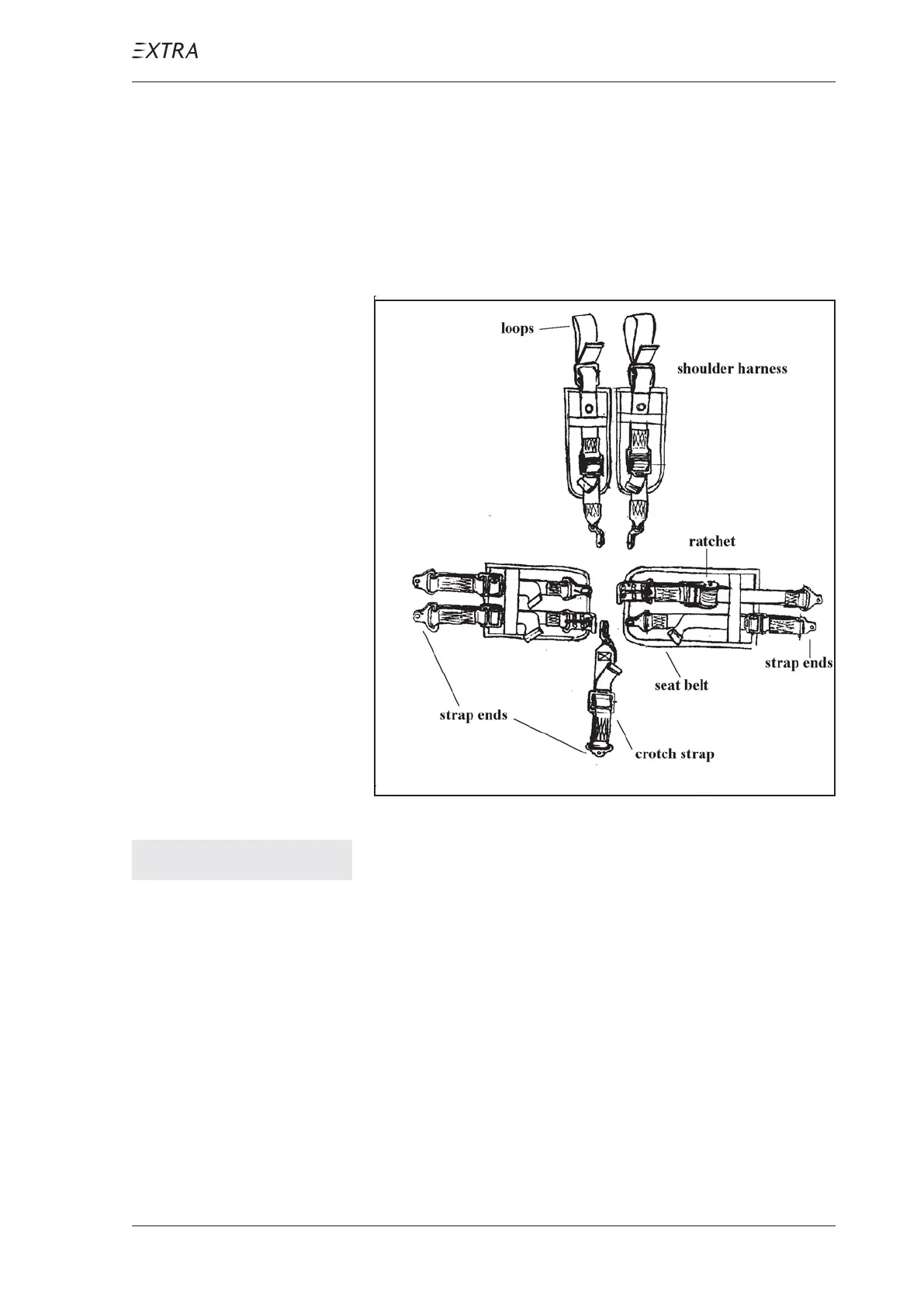

Figure 1 Strap Assembly
I M P O R T A N T Keep belts from contact with chemicals, solvents,
degreaser, battery acid and excessive exposure to di-
rect sunlight.
Installation
Each strap end is fitted with bolts, stop nuts and washers to
its own fitting at the steel frame resp. at the underside of the
seat.
The shoulder strap loops of the front and rear seat are
attached to the horizontal steel tubes as shown in figure 2.
Seat belts
