CHAPTER 27
PAGE 16
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX
27-10-02 Spades
Rigging
For roll trim the spade rigging angle of incidence has to be
changed. Insert washer(s) between the spade and the mount-
ing plate (refer to Figure 13). For example: When the
aircraft rolls to the left, insert washer(s) at the front attach-
ment bolt of the right spade.

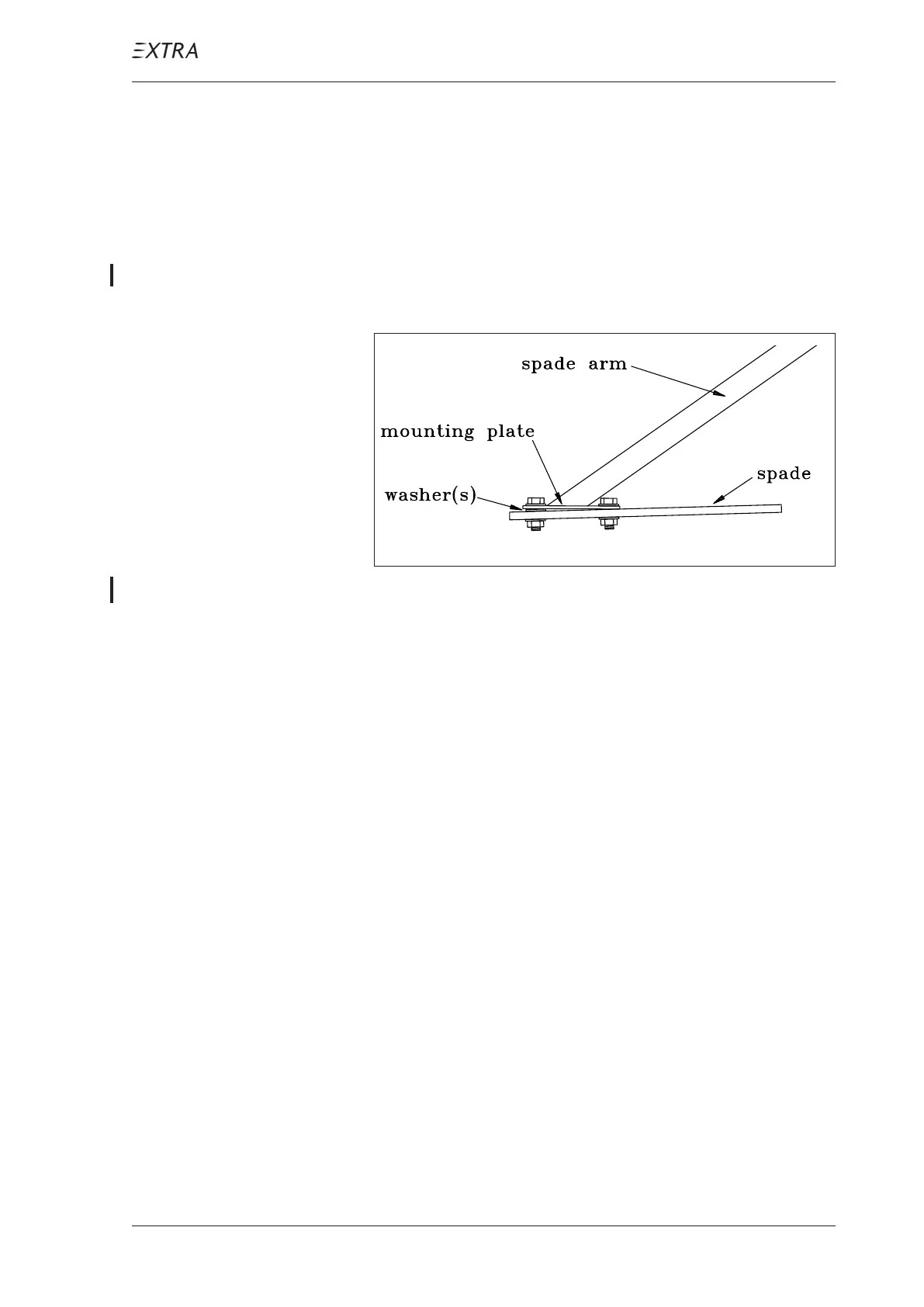

Figure 13 Spade Rigging
MAINTENANCE PRACTICES
Aileron Rigging
