CHAPTER 71
PAGE 4
MAINTENANCE MANUAL EXTRA 330LX
PAGE DATE: 1. March 2011
Removal/Installation
N O T E It is favorable to remove the cowling with two persons.
W A R N I N G Before rotating the propeller in the most convenient
position for removal of the cowling, make sure that the
ignition switch is in the “OFF” position.
1 Rotate the propeller in the most convenient position.
2 Remove the related truss head screws (4)&(5) of top cowl-
ing half (see figure 1).
3 Remove top half of the engine cowling.
4 If landing light installed: Disconnect the landing light wir-
ing using the connector shown in figure 2.
5 Remove the remaining truss head screws (4)&(5) of the
bottom cowling half (see figure 1).
6 Remove the bottom half of the cowling.
N O T I C E Pay attention to the rubber flaps of the air baffles. Make
sure they are not pushed outwards when installing the
top half of the engine cowling.
7 Install in reverse sequence of removal.

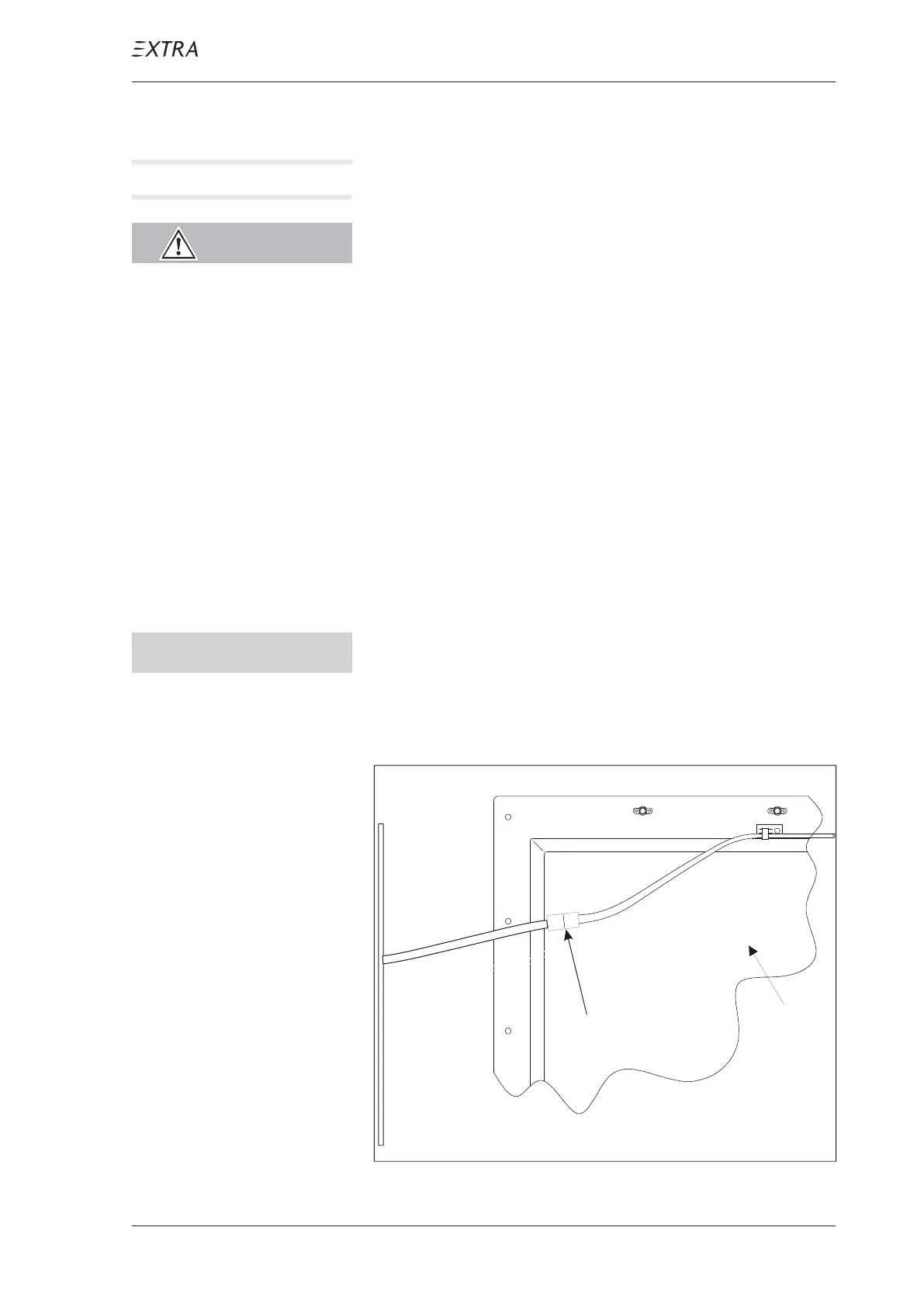

Side View
Firewall
Connector
Cowling
Figure 2 Landing Light Connector
