Extra 300LX - 73-20-12 Rear Throttle Control Lever

CHAPTER 73
PAGE 6
MAINTENANCE MANUAL EXTRA 330LX
PAGE DATE: 1. March 2011
73-20-12 Rear Throttle Control Lever
1
23
4
5
9
5b
5a

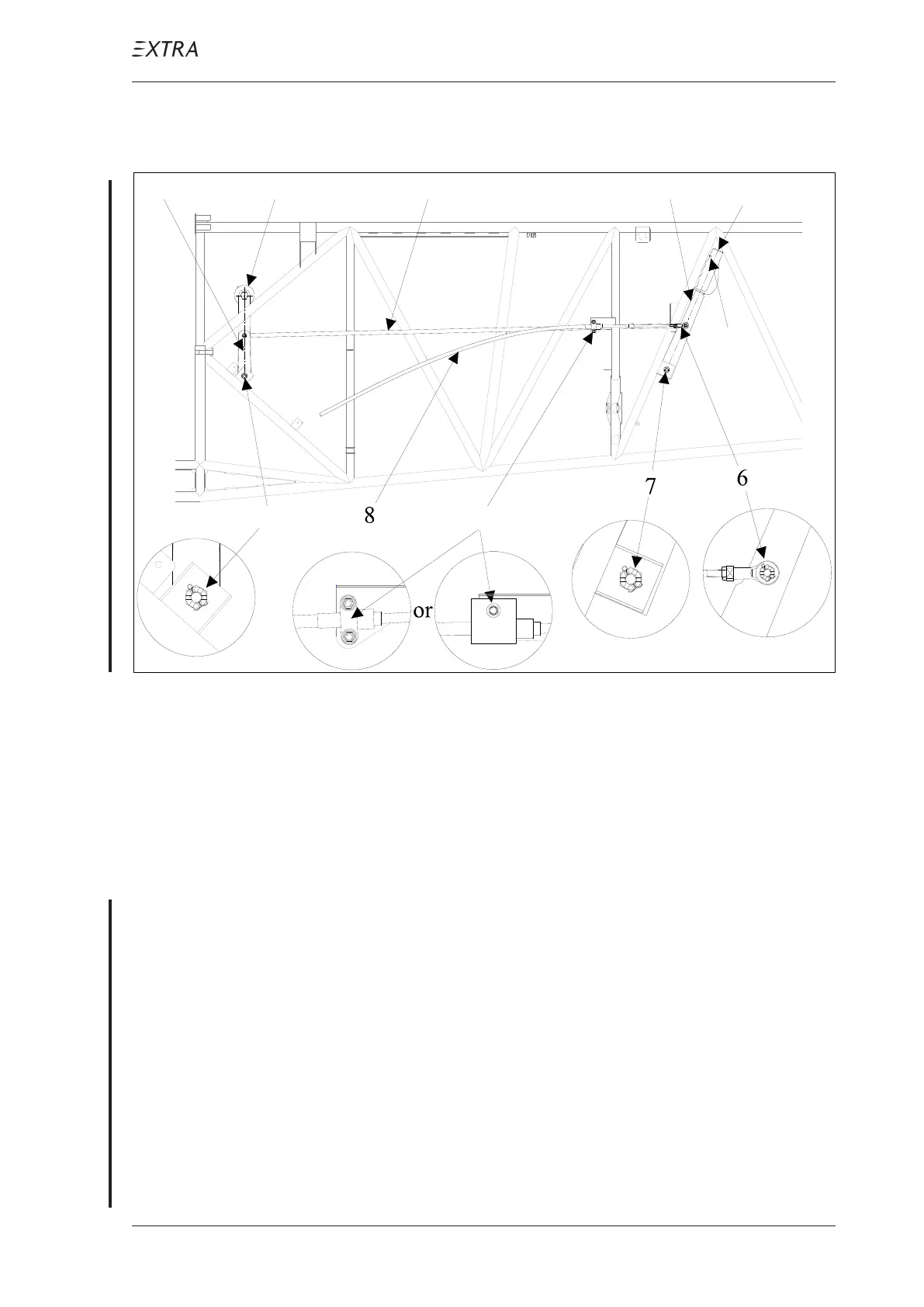

Figure 3 Throttle Control Levers
Removal
1 Ensure master switch is off.
2 Remove engine cowling per chapter 71.
3 Remove main fuselage cover per chapter 53.
4 Remove cotter pin, castle nut, washers and bolt (6, figure 3)
and the throttle control linkage (3) from the throttle control
lever (5).
5 Pull the smoke switch (5a, if installed) out of the throttle
lever handle and disconnect switch wiring.
6 Remove intercom switch (5b) attachment nut. Remove self-
clinching plastic tiedown straps of related wiring. Pull the
intercom switch out of the throttle control lever grip.
7 Disconnect throttle control lever attachment by removing
cotter pin, castle nut, washers and bolt (7). Remove throttle
control lever.
