Extra 300LX - Figure 15; Rear Pedal Template

CHAPTER 27
PAGE 21
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX
7 Let the front end of the protective hose extend to 20 mm in
front of the pedal "S"-tube.
8 Slip 2 NICOPRESS (National Telephone Supply Co., Cleve-
land Ohio) 18-3-M or 28-3-M sleeves (5) and 100 mm
771095 shrinking sleeve on the control cable.
9 Thread the free end of the control cable through the rear
fairleads (6) and the hole in the fabric to the tail.
10 Slip 80 mm 771095 shrinking sleeve and 850 mm teflon
protective hose on the control cable end. The protective hose
should extend 120 mm beyond the first fairlead inside the
fuselage.
11
Adjust rear pedals 78 mm aft of the foremost position.
12 Fix rear pedals in neutral position (80° relative to the foot-
rest using a template as shown in Figure 15).
7
8
m
m
2
3
0
m
m
80°
Template Rear pedal

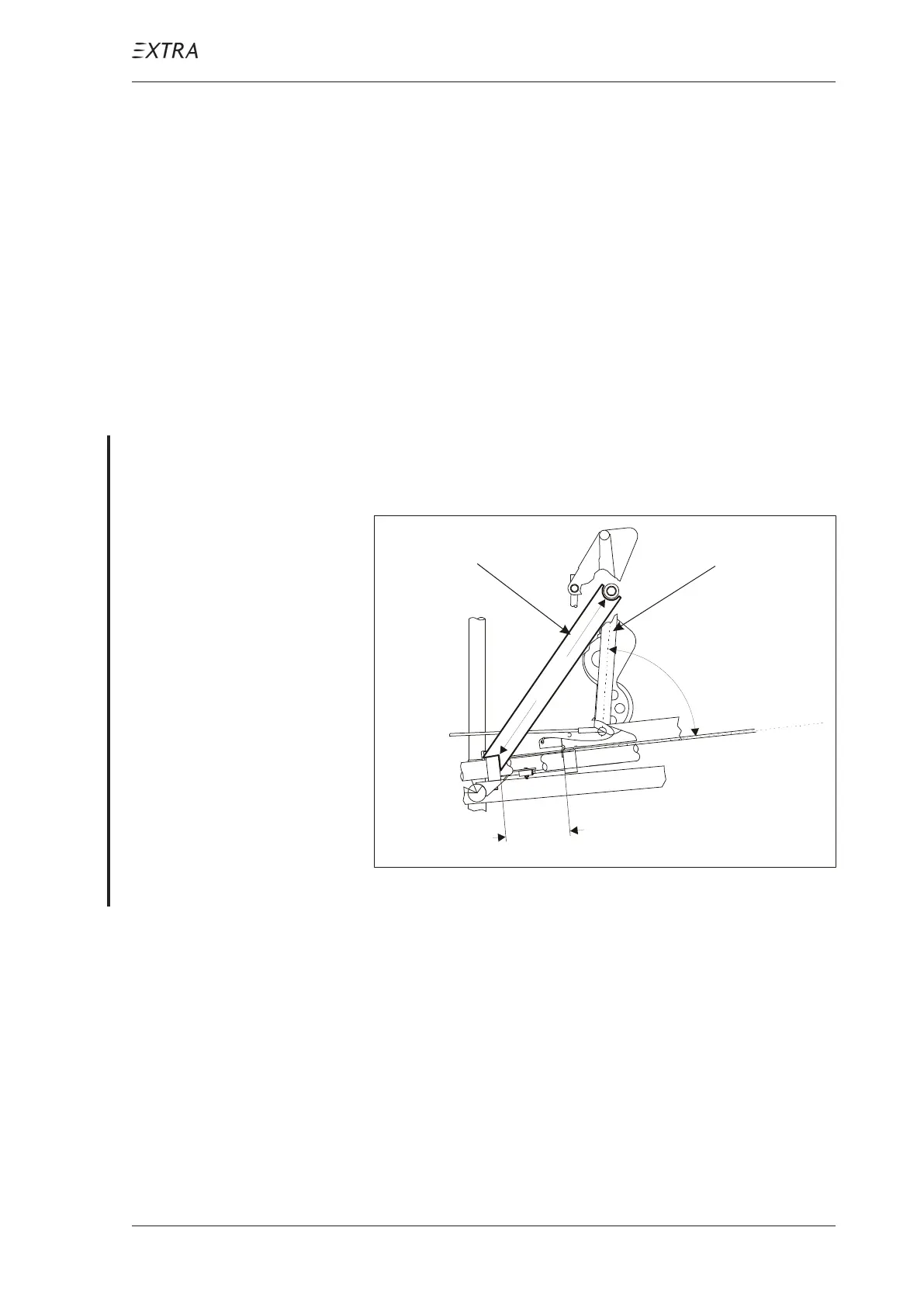

Figure 15 Rear Pedal Template
13 Pre-install the LN9037-06030 bolt, the DIN 125-8,4 wash-
ers (one on both sides of the thimble and one below the
tailwheel steering attachment bracket), the DIN 125-6,3
washers, the bushing, the LN9348-06 nut and the thimble to
the bottom hinge bellcrank.
14 Slip the 80 mm 771095 shrinking sleeve and a NICO-
PRESS 18-3-M or 28-3-M sleeve on the control cable end.
15 Move the cable around the thimble and stretch the control
cable with a force that is equivalent to the tractive effort of
the rear pedal retracting spring.
