CHAPTER 27
PAGE 14
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX
27-10-01 Ailerons
Removal/Installation
1 Disconnect the actuator rod from the aileron actuator arm.
2 Disassemble the spade if necessary observing the quantity
and location of shimming washers.
3 Loosen the hinge bolts and the ground bonding braids and
remove the bolts.
4 Install in reverse sequence of removal. Ensure that the spade
is installed with the same quantity and location of shimming
washers (refer to figure 12). Observe the second note of
chapter 27-00-00.
Rigging
Before beginning any adjustments inspect control rods,
levers and hinges for signs of wear or damage. Check if the
control rod lengths correspond with the measurements given
in chapter 27-00-01. If necessary replace parts and correct
lengths per chapter 27-00-01.
1 Secure the control stick in the neutral position as shown on
Figure 11.
neutral position
equal

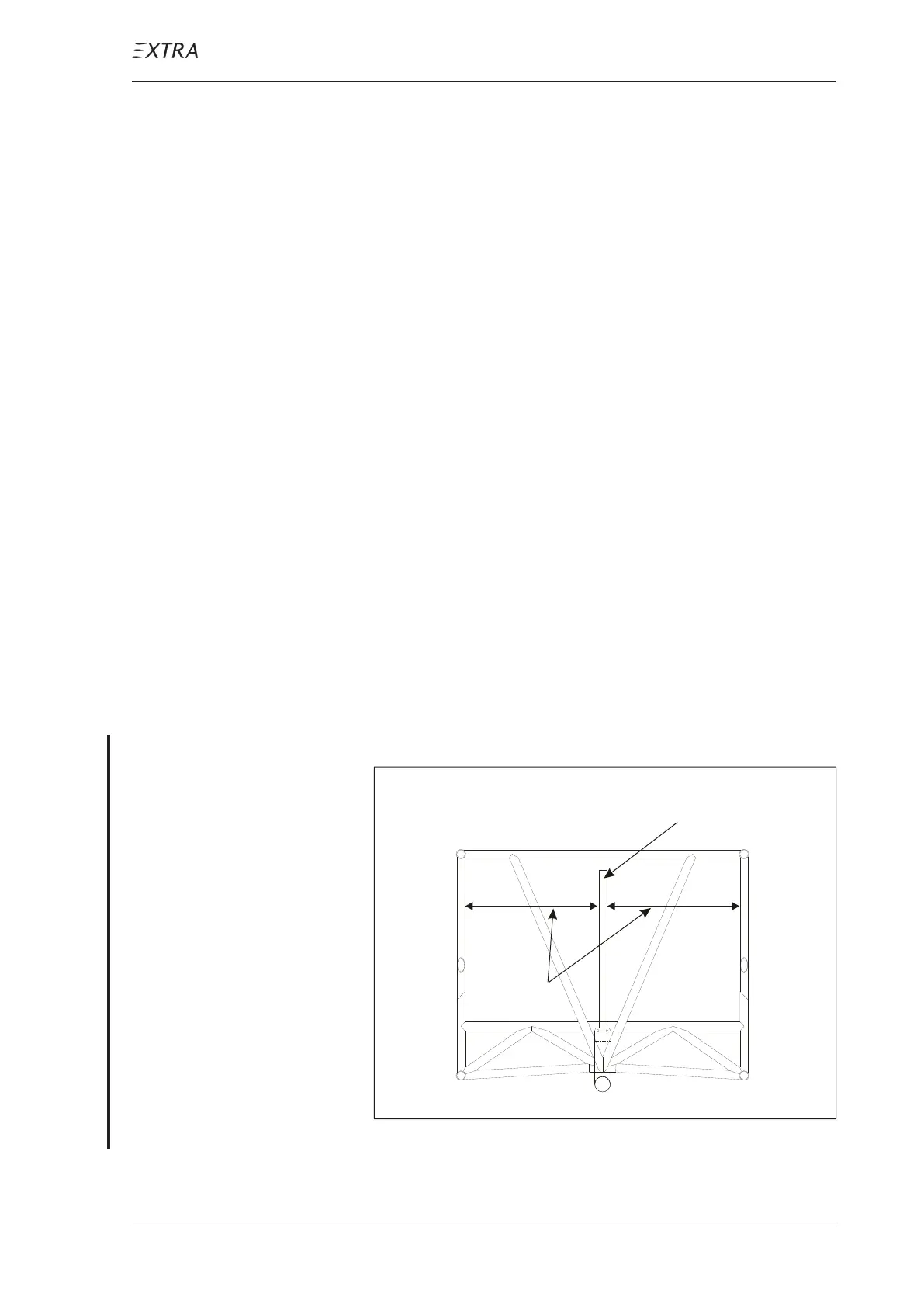

Figure 11 Neutral Position of Rear Control Stick
