55-20-00 ELEVATOR

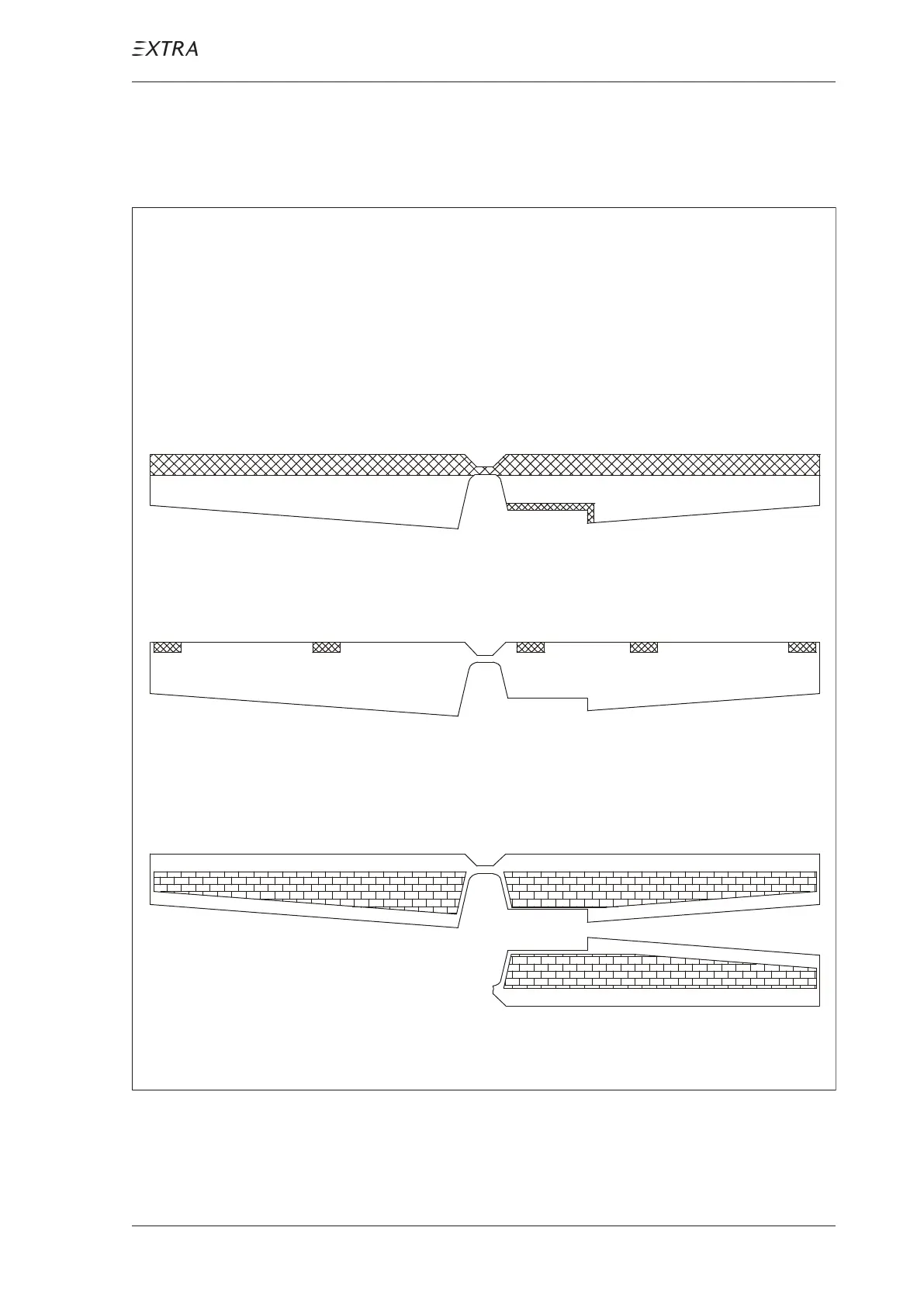

Figure 3 Layer Sequence Elevator
LH upper and lower shell
RH upper and lower shell
LH upper and lower shell
RH upper and lower shell
RH upper and lower shell
RH upper shell
RH lower shell
1.) Vorgelat Scheufler T35
2.) 1 x CCC452 , whole plane
± 45°
5.) 1 x CCC490 , whole plane ± 45°
3.) Reinforcements 1 x CCC452 ± 45°
3.) Reinforcements 1 x CCC452 ± 45°
4.) Honeycomb ECA-R4.8-29
