CHAPTER 55
PAGE 6
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
1 Vorgelat T35
2 1 x CCC452 45°
±
3
Reinforcements
nose and aux. spar
1 x CCC452 45°
±
4 2 x CCC452 45°
Reinforcements root
±
5 Honeycomb
ECA-R4.8-29
6 1 x CCC490 45°
±
7 1 x CCC452 45°
Reinforcement spar and
area of mass balance
±
Layer sequence
lower shell
Layer sequence
upper shell

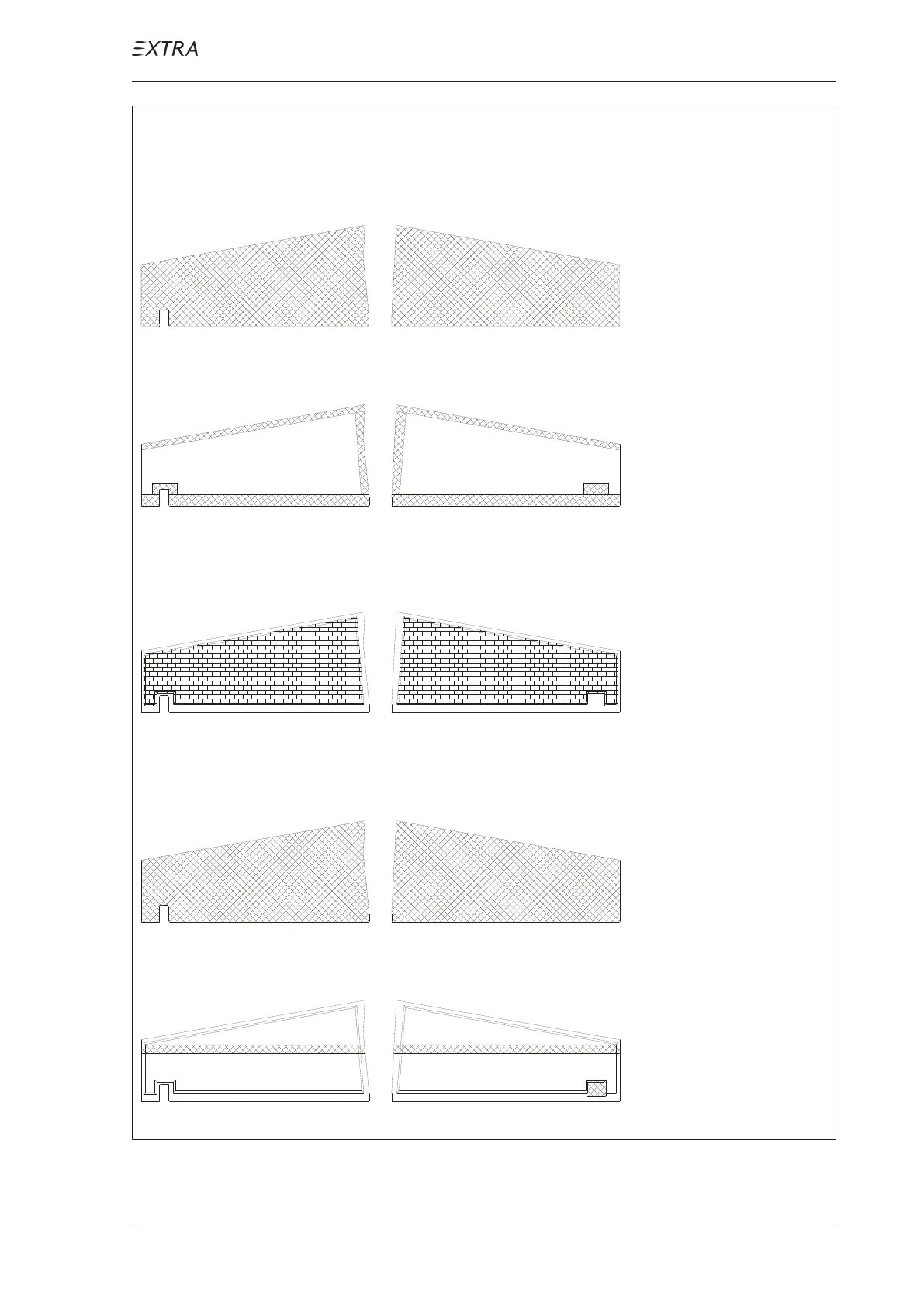

Figure 2 Layer Sequence Horizontal Stabilizer
