Extra 300LX - 28-20-04 Andair Boost Pump

CHAPTER 28
PAGE 22
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
28-20-04 Andair Boost Pump
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Disconnect the plug (1, figure 10) and the fuel lines from
the boost pump.
3 Remove the Allen screws (2).
4 Remove the boost pump (3).
5 Install in reverse sequence of removal.
1
2
2
3

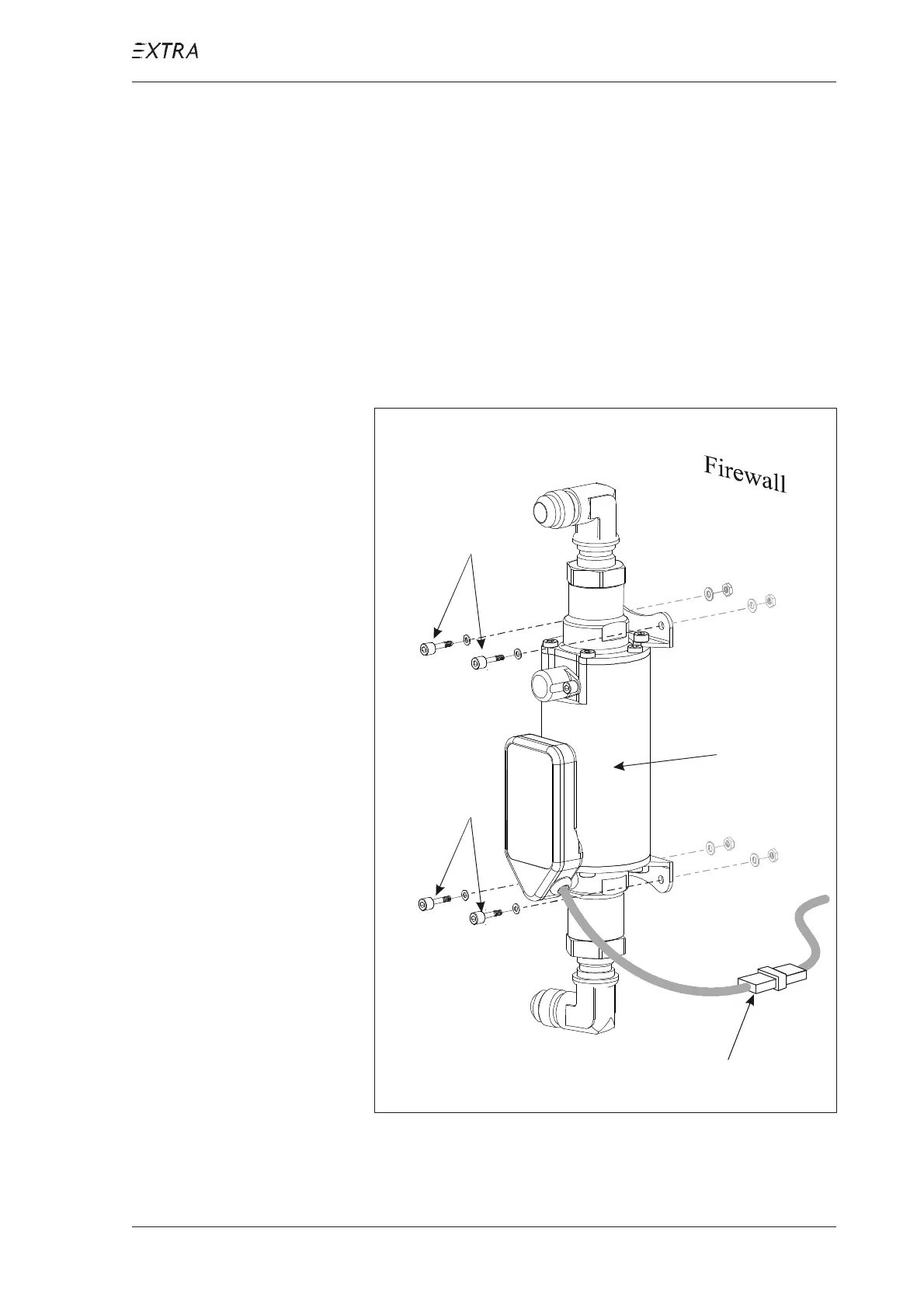

Figure 11 Andair Boost Pump Removal/Installation
