Extra 300LX - 28-40-03 Fuel Quantity Transducer (Center Tank)

CHAPTER 28
PAGE 27
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX

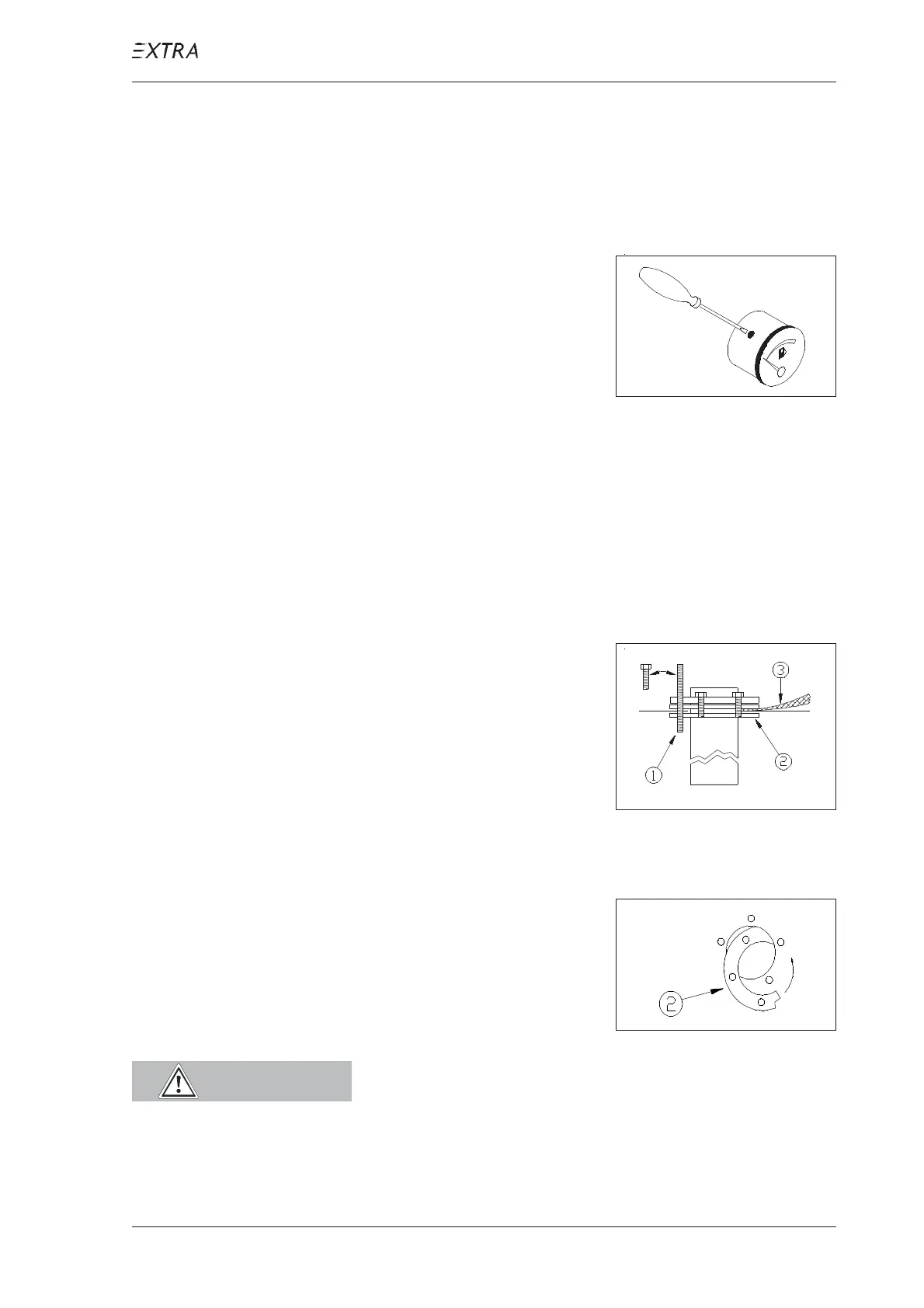

Calibration (Center Tank)
1 Drain the fuel system (refer to chapter 12-10-02).
2 Remove the fuel quantity indicator following step 2 of chap-
ter 28-40-01.
3 Bring indicator to „0“-posi-
tion by turning the adjust-
ment screw.
4 Reinstall the fuel quantity indicator.
28-40-03 Fuel Quantity Transducer (Center Tank)
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Loosen one bolt and replace
by a M5 threaded rod (1) for
securing the slotted retainer
ring (2).
3 Remove the other bolts and
the ground bonding lead (3).
4 Remove the transducer and
the sealing ring while holding the threaded rod.
5 Remove the threaded rod and
turn out the slotted retainer
ring (2).
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent contain-
ers covered when not in use.
