Extra 300LX - Neutral Position of the Rear Control Stick

CHAPTER 27
PAGE 27
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX

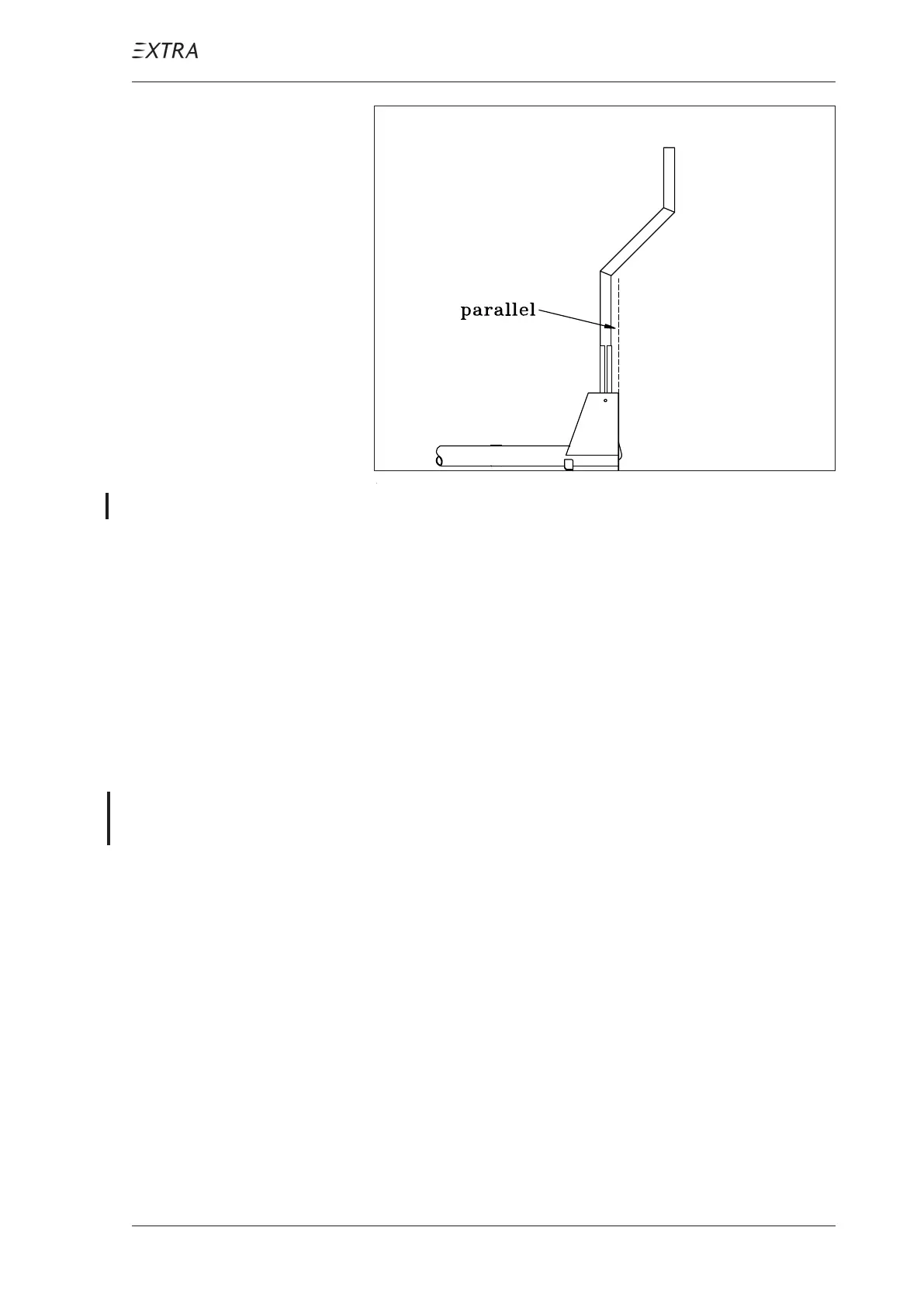

Figure 18 Neutral Position of the Rear Control Stick
3 Check if the elevator is in 0°-position. (Elevator trailing
edge aligned to the stabilizer tip trailing edge.)
4 If necessary adjust the length of the aft control rod as per
chapter 27-00-01.
5 Check if the elevator travel is within the given tolerances
(up 25° ±2°, down 25° -2°). Use a conventional protractor.
6 Adjust the travel stops if necessary.
7 Check if the rear control stick travel is symmetrical.
8 If it is not, check correct installation of rocker type bell-
crank; refer to chapter 27-00-02.
.
