CHAPTER 28
PAGE 12
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
28-10-05 Wing Tank Outlets Removal/Installation
1 Remove the inspection door (1, Figure 5) per Chapter 28-
10-04.
2 Remove the union nuts (2) and the elbow tubes (3).
3 Remove AN 924 nut and washers and remove AN 832 fit-
ting.
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent contain-
ers covered when not in use.
4 Clean sealing surfaces mechanically and with Acetone.
5 Install in reverse sequence of removal after applying 3M
Brand Fuel Resistant Coating 776 (3M, St. Paul, USA) to
the sealing surfaces (fitting to tank root rib). Ensure that
the outlet end positions are in the upper- resp. undermost
edge of the wing tank (see Figure 5 below).

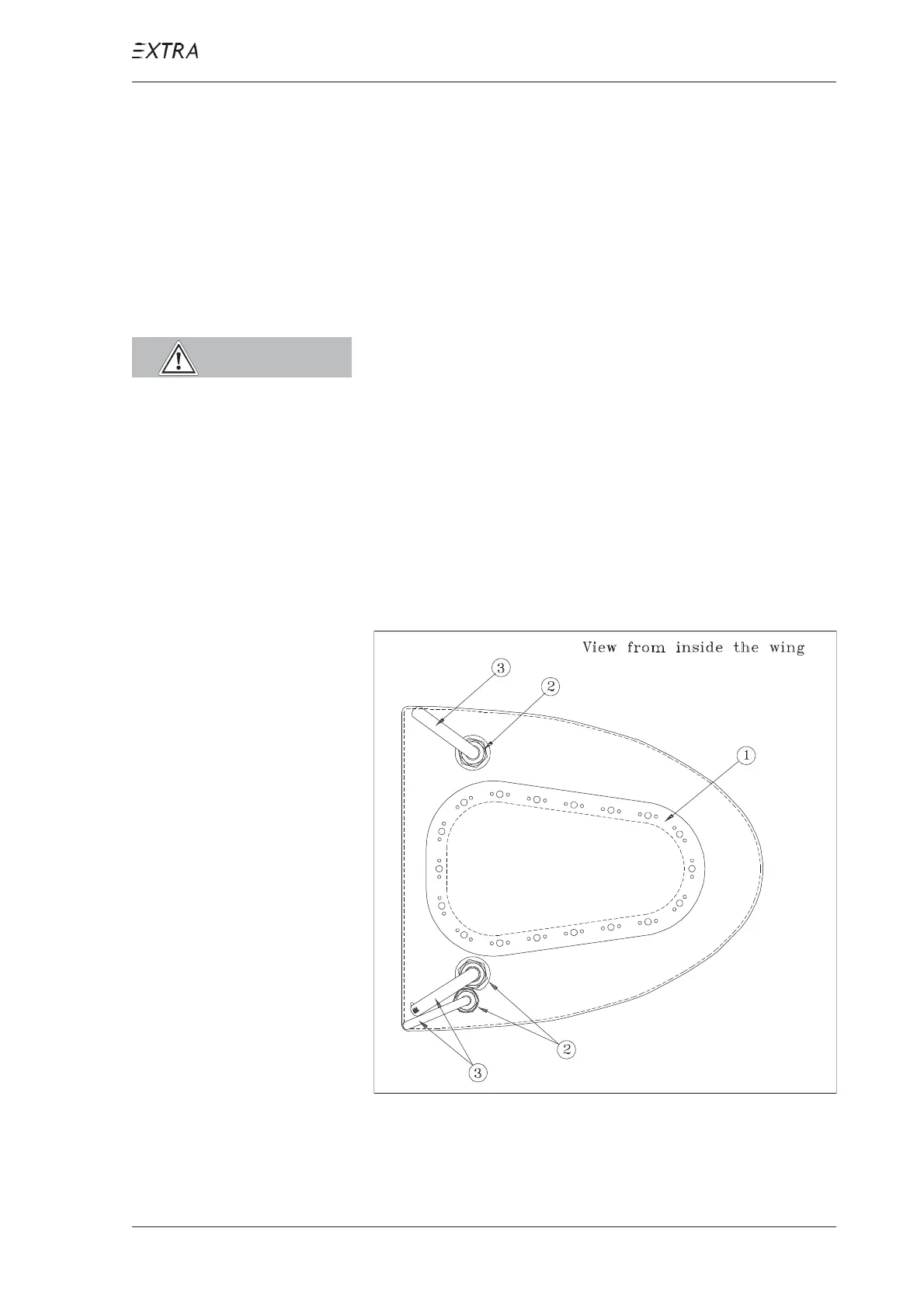

Figure 5 Wing Tank Outlets Removal/Installation
