CHAPTER 78

PAGE 3

MAINTENANCE MANUAL EXTRA 330LX

PAGE DATE: 1. March 2011

78-00-00 GENERAL

The EXTRA 330LX is generally equipped with a

Gomolzig 6 in 1 exhaust system (refer to figure 1) with

integrated silencer (muffler).

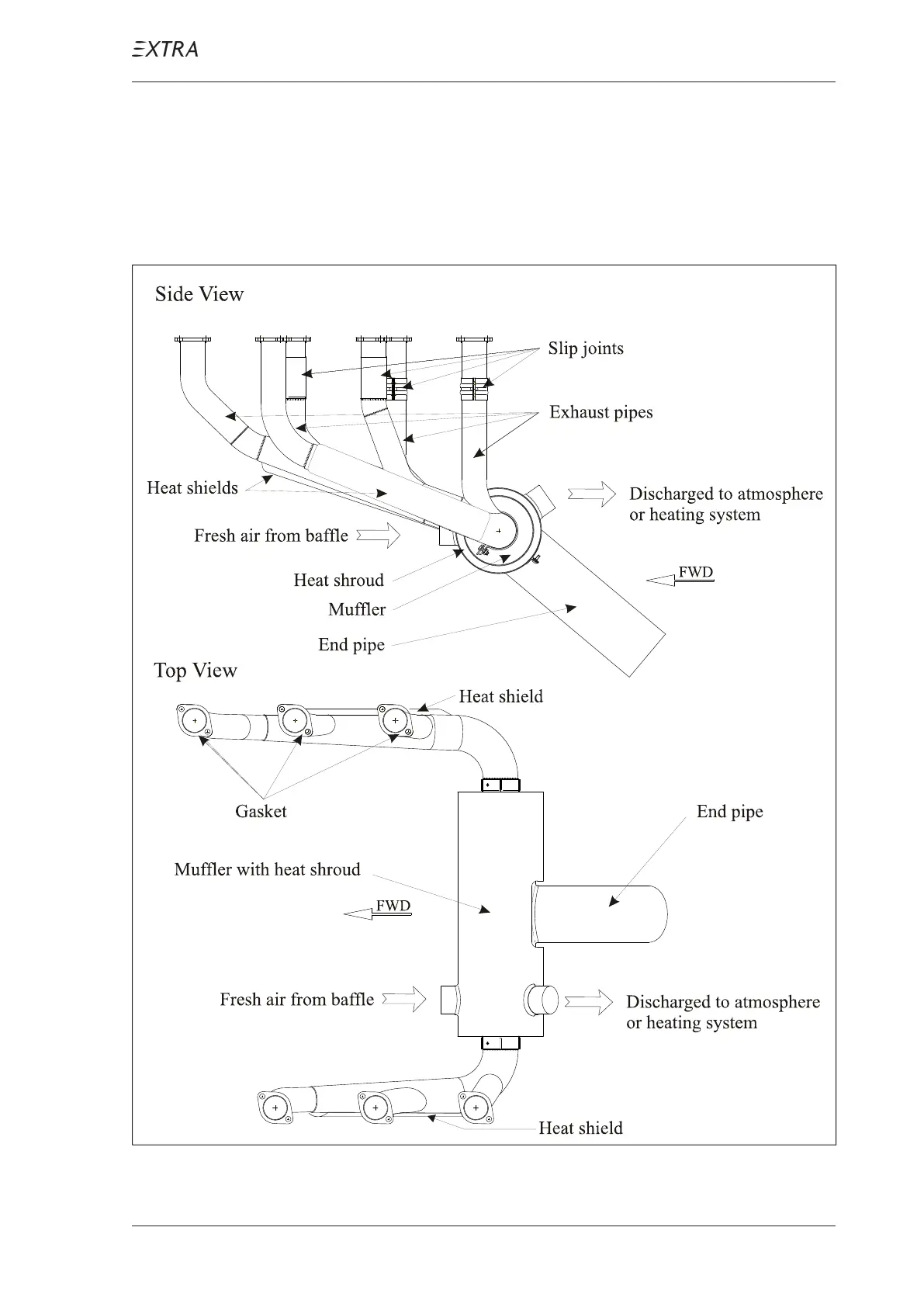

Figure 1 Exhaust System
