77-41-05 Fuel Flow Transducer
Removal/Installation
N O T I C E Ensure exhaust is cool. Spilling fuel could inflame.
1 BATTERY switch off.
2 Remove engine cowlings as per Chapter 71-10-00.
3 Remove the fire sleeve (6).
4 Disconnect the fuel hoses (3, Figure 6) from the transducer
(4).
5 Disconnect the electrical wiring (1) from the transducer.
6 Remove the attachment bolts (2) and remove the transducer
from the mounting sheet (5).
7 Reverse procedure for installation.

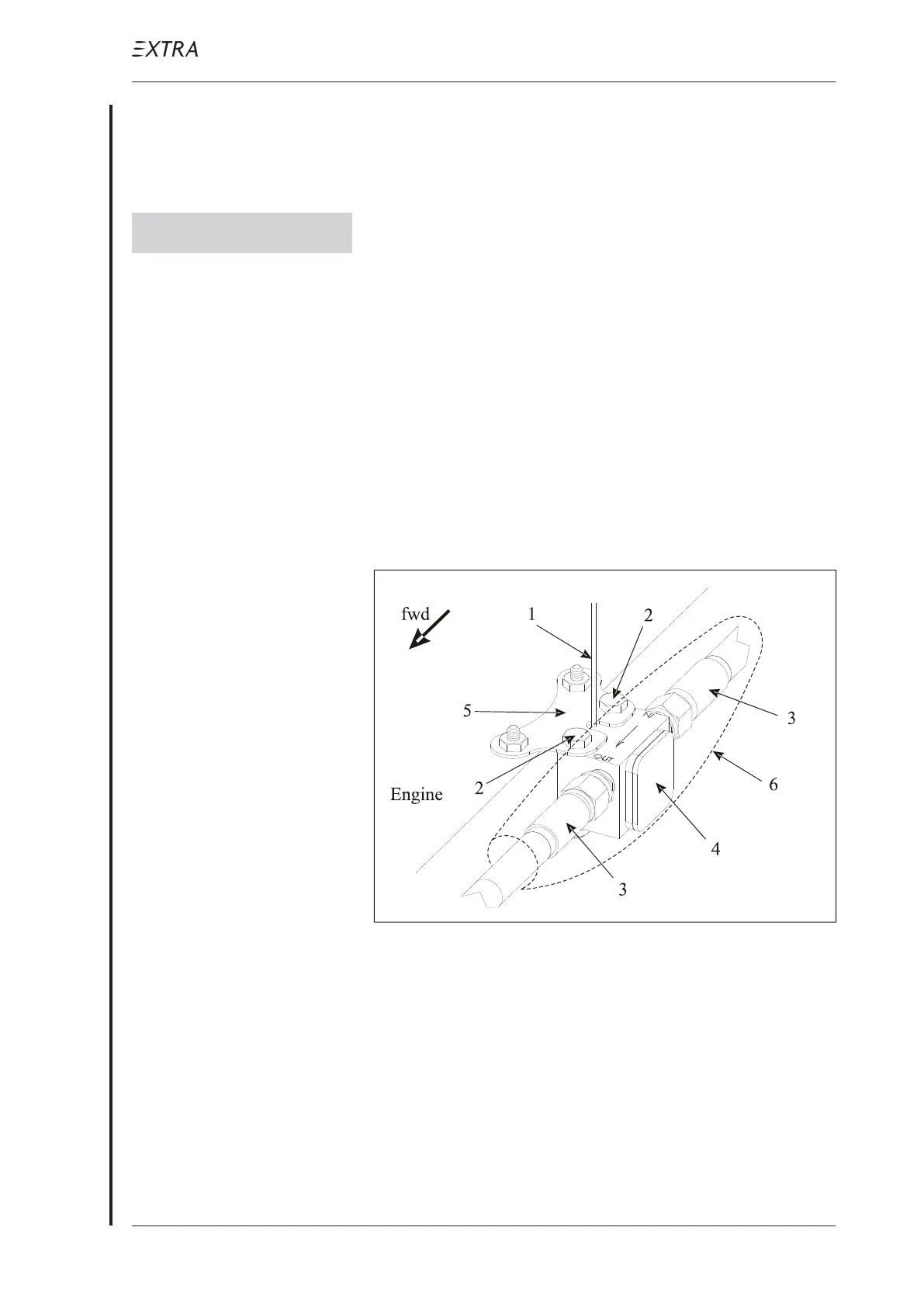

Figure 6 Fuel Flow Transduver
