CHAPTER 28
PAGE 18
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX

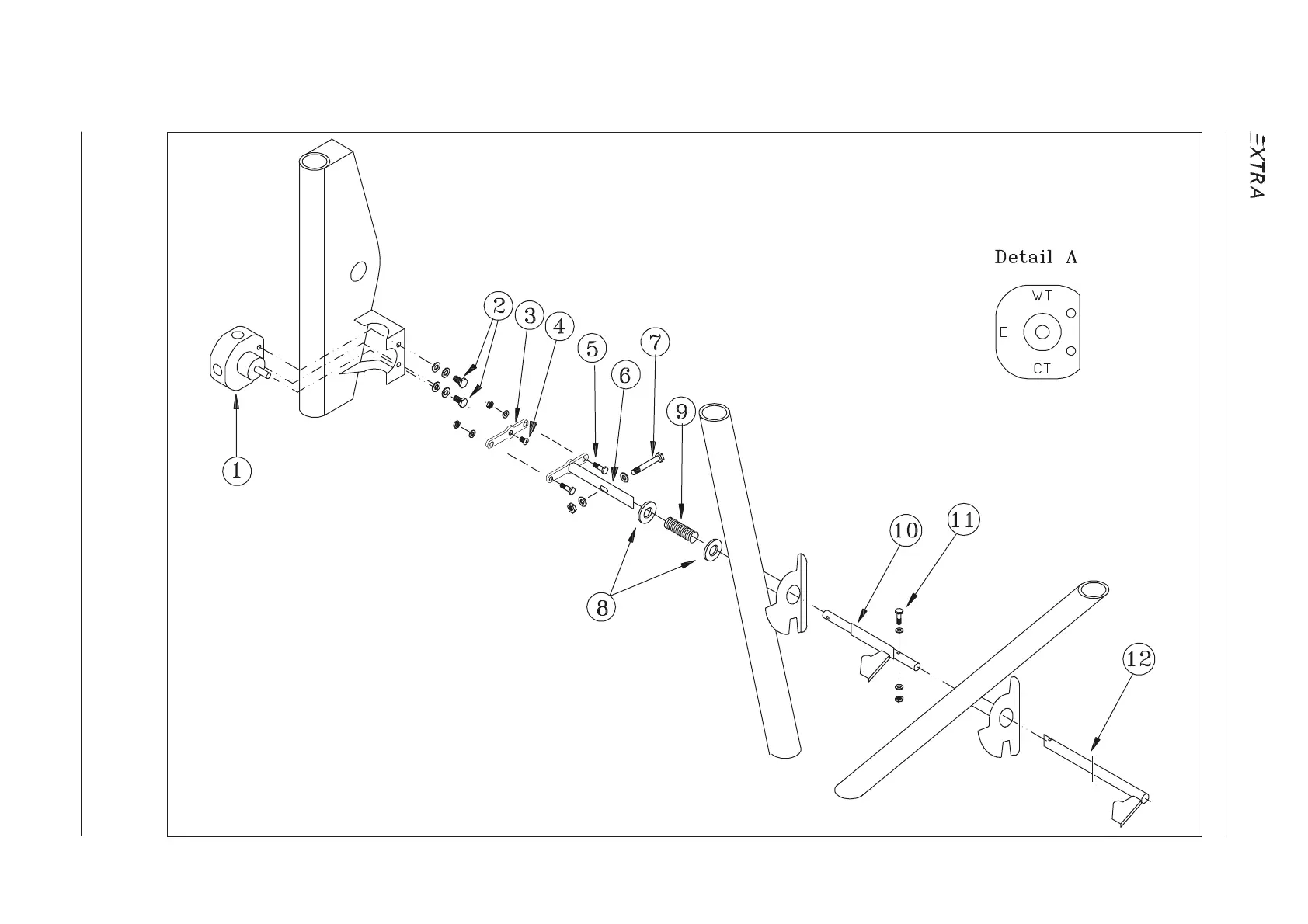

Figure 8 Fuel Selector Valve and Control Rod
Legend:
1 Selector valve
2 Selector valve attachment bolts
3 Control bracket
4 Attachment screw
5 Control rod attachment bolts
6 Front control rod
7 Front control rod connection bolt
8 Washers
9 Spring
10 Middle control rod with handle
11 Rear control rod connection bolt
12 Rear control rod with handle
