Extra 300LX - 31-10-04 Typical Instruments

CHAPTER 31
PAGE 10
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
31-10-04 Typical Instruments
Removal/Installation
In Figure 5 typical instrument attachments used in the EXTRA
330LX are outlined.
1 Switch off aircraft power
2 Remove main fuselage cover per chapter 53.
3 Remove rear instrument panel cover if applicable per chap-
ter 31-10-03.
4 Disconnect cable and/or sense line from the instrument.
5 Remove screws, nuts or clipnuts as applicable.
6 Remove instrument from panel.
7 Install in reverse sequence of removal.

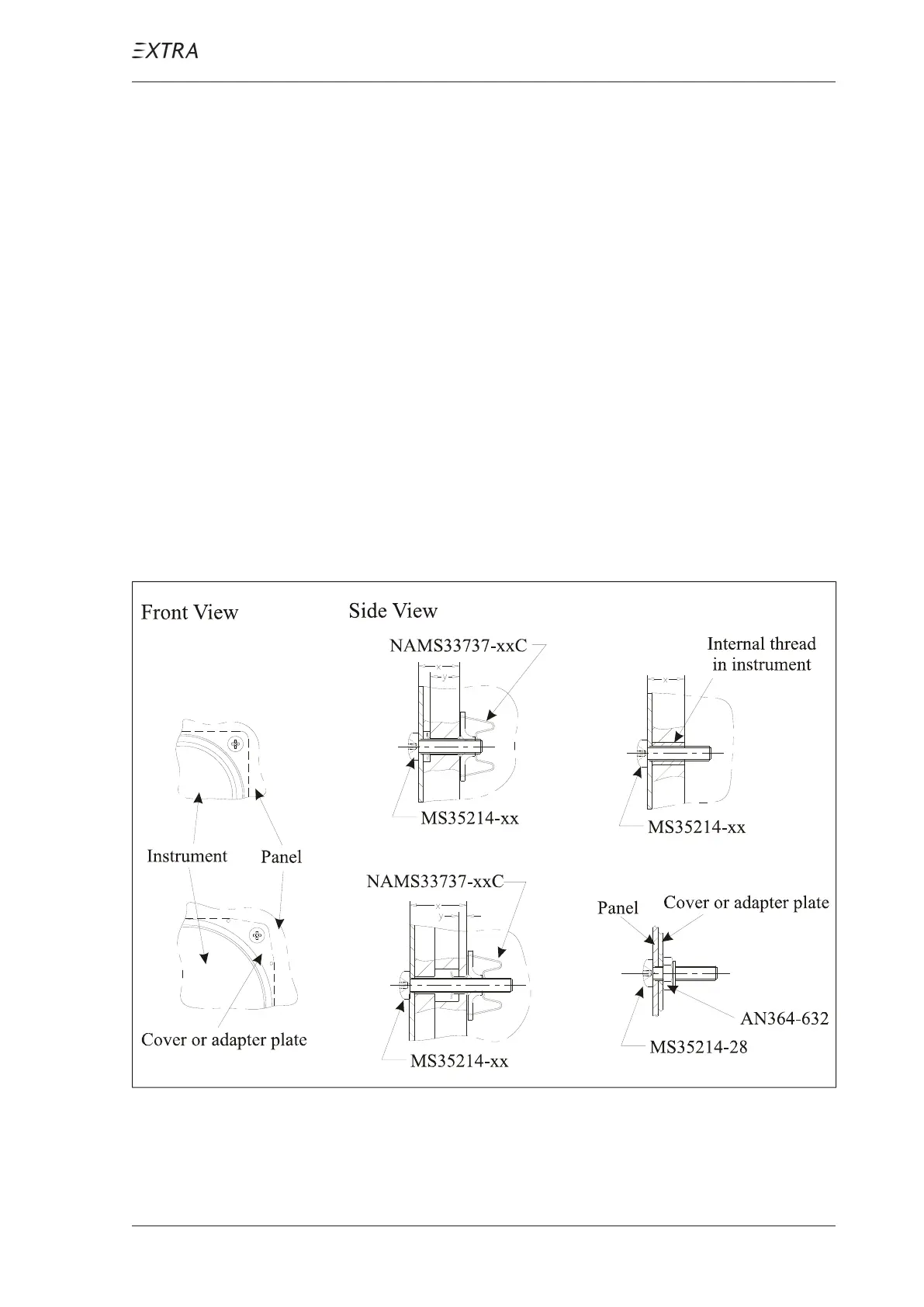

Figure 6 Typical Instrument Attachments
