Extra 300LX - 32-10-03 Wheel Axis; 32-10-04 Tail Spring

CHAPTER 32
PAGE 5
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX

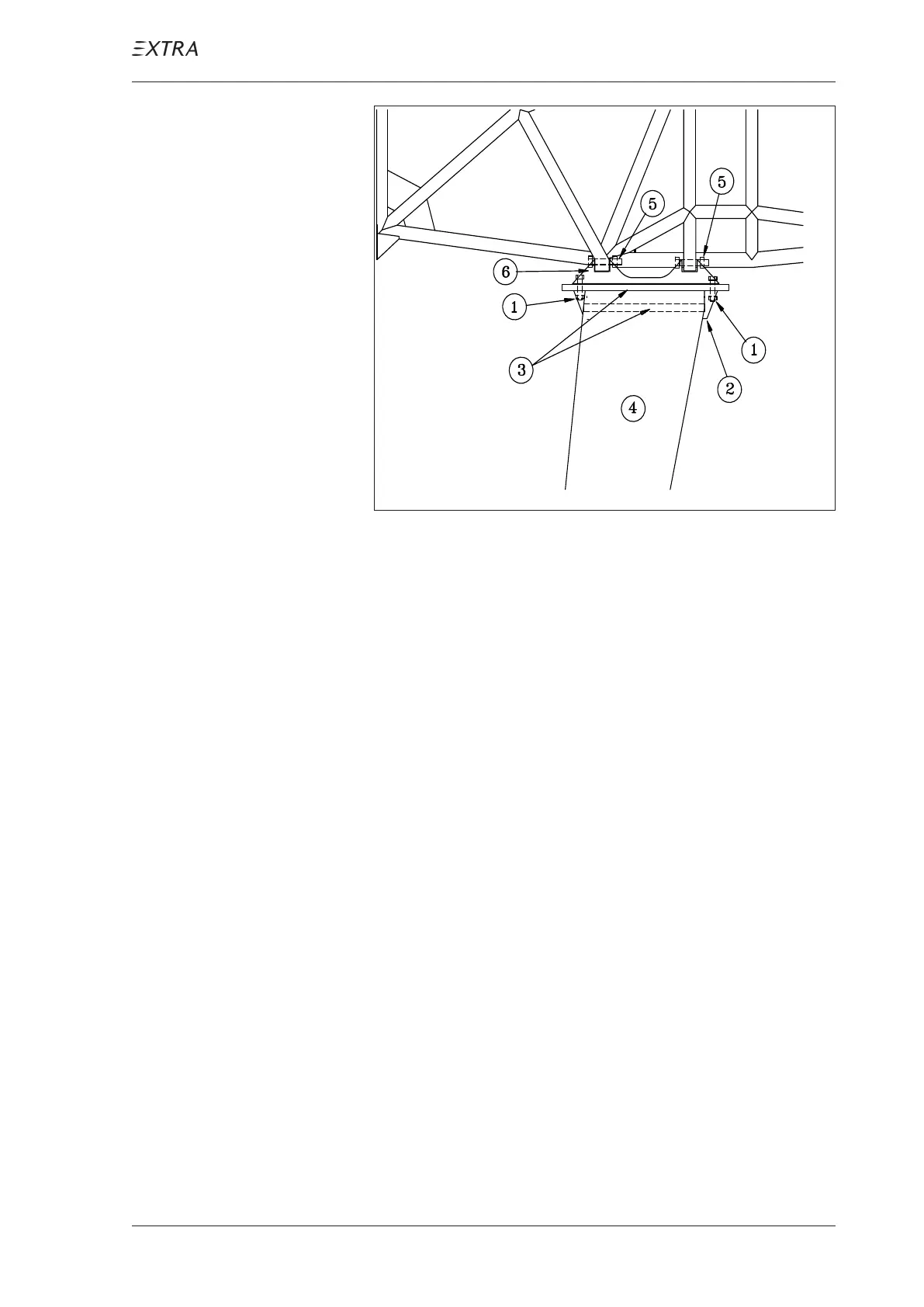

Figure 2 Main Landing Gear Mounting
32-10-03 Wheel Axis
Removal/Installation
1 Remove wheel fairing as per chapter 32-40-02.
2 Remove wheel.
3 Remove the four wheel axis attachment bolts and remove
the axis, the reinforcement plate and the wheel fairing holder
plate.
4 Install in reverse sequence of removal. Use new nuts and
bolts.
32-10-04 Tail Spring
Removal/Installation
Refer to figure 3.
1 Shore the tail as per chapter 07-20-02.
2 Remove the tail cone access panel as per chapter 51-00-01.
