CHAPTER 34
PAGE 11
PAGE DATE: 17. March 2014
MAINTENANCE MANUAL EXTRA 330LX
Removal/Installation
1 Ensure transponder is off.
2 Disconnect the electrical wiring from the digitizer (1, fig-
ure 2) by pulling the plug (3).
3 Disconnect the hose (5) from the digitizer static port.
4 Remove the safety wire of the knurled screw (6).
5 Loosen the knurled screw and remove the digitizer (1).
6 Install in reverse sequence of removal. Use new safety wire.
Perform an operation test.
to rear
instrument
panel
static
pitot
1
2
3
4
5
6
Legend:
1 digitizer
2 electrical wiring
3 plug
4 T-fitting
5 hose
6 knurled screw

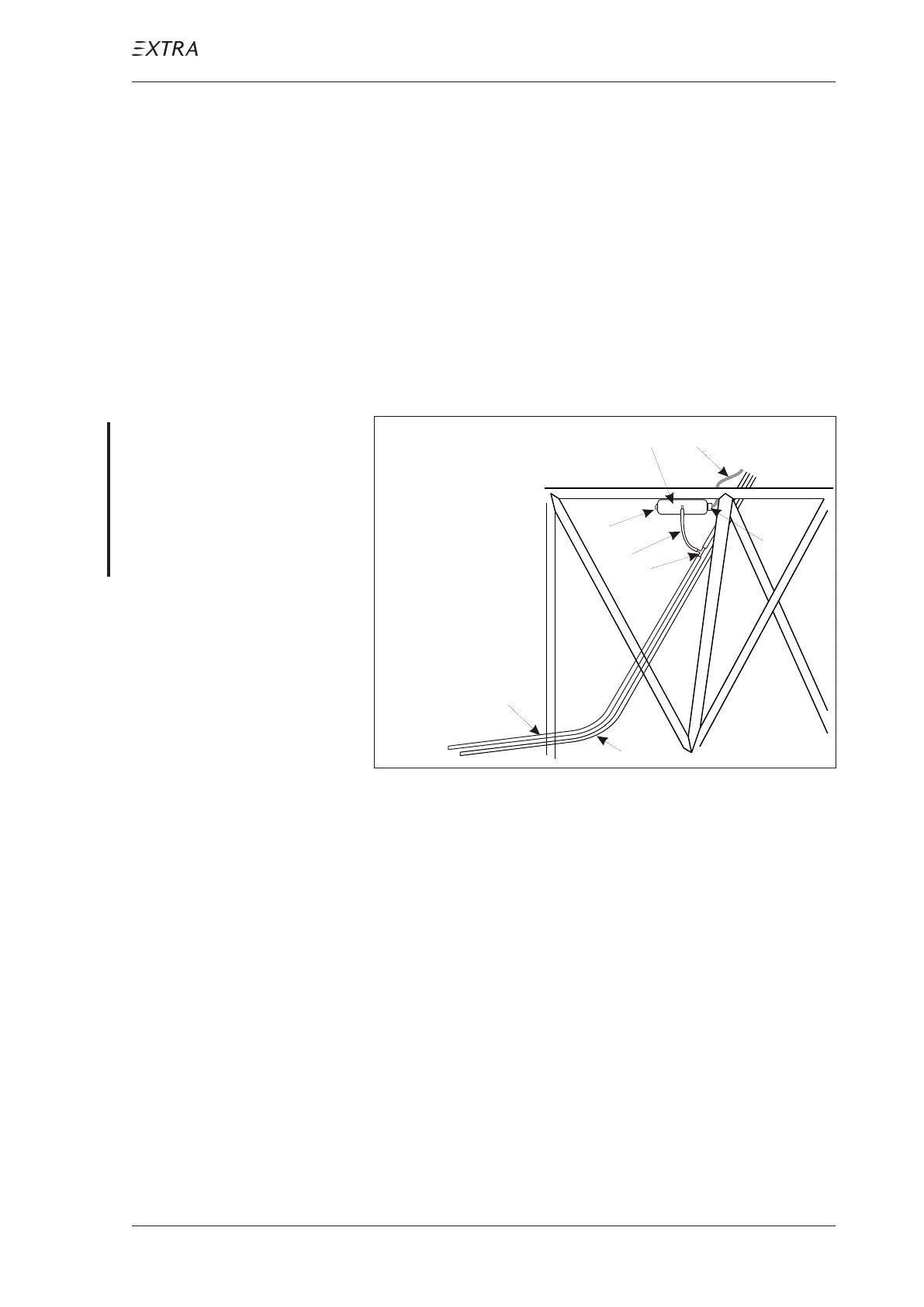

Figure 2 Blind Encoder Removal/Installation
