CHAPTER 53
PAGE 15
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX

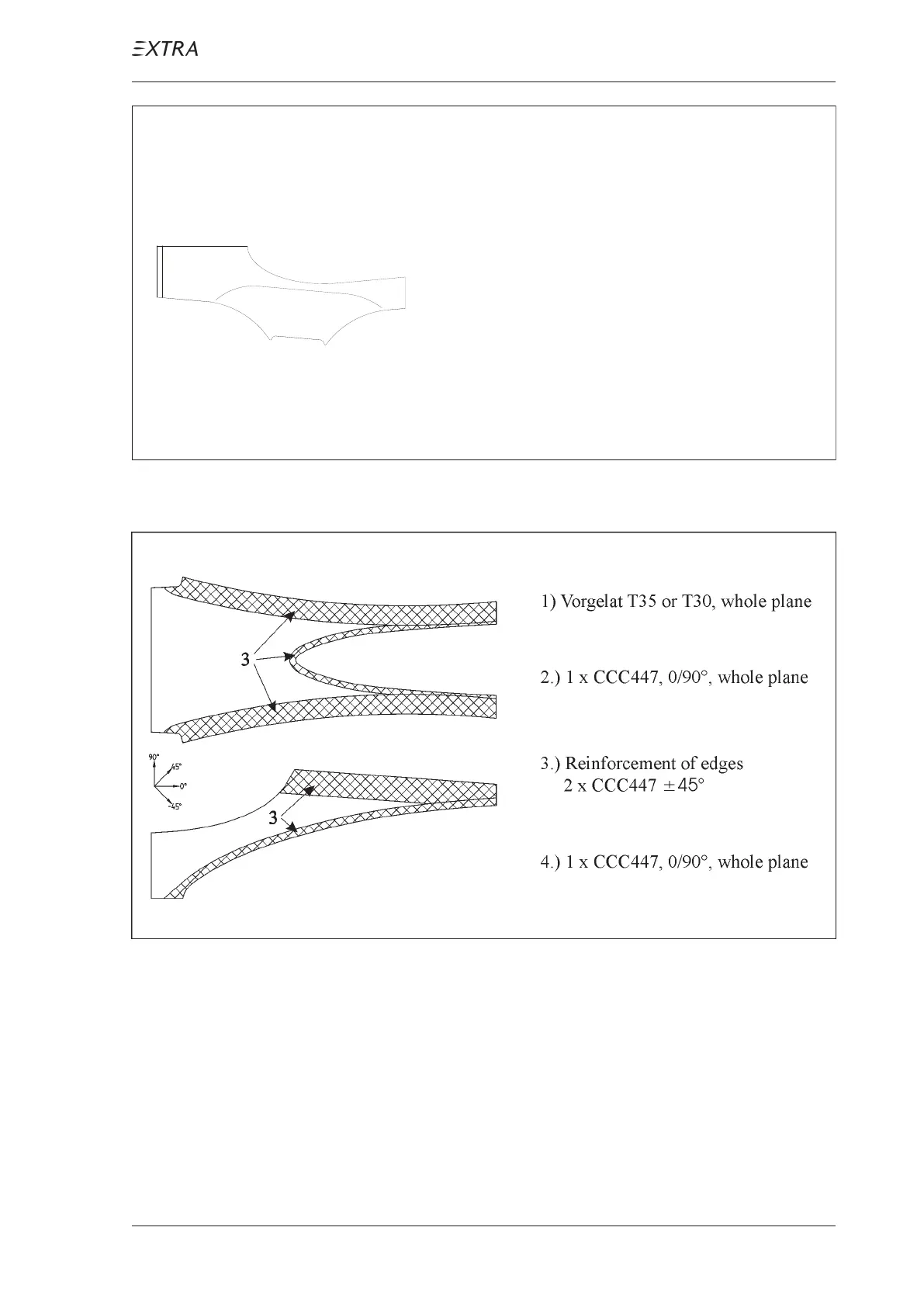

Figure 10 Layer Sequence Tail Fairing
Figure 9 Layer Sequence Cuffs
Carbon fabric CCC 452
whole plane
Glass fabric Interglas 92140
60 mm wide tape along edges
Glass fabric Interglas 92140
40 mm wide tape along edges
5
4
3
whole plane
30 mm wide tape along edges
Vorgelat T30/T35 with hardener SF2
Glass fabric Interglas 92110
whole plane
Carbon fabric CCC 452
2
1
6
0°/90°
±45°
±45°
0°/90°
±45°
