CHAPTER 55

PAGE 10

PAGE DATE: 1. March 2011

MAINTENANCE MANUAL EXTRA 330LX

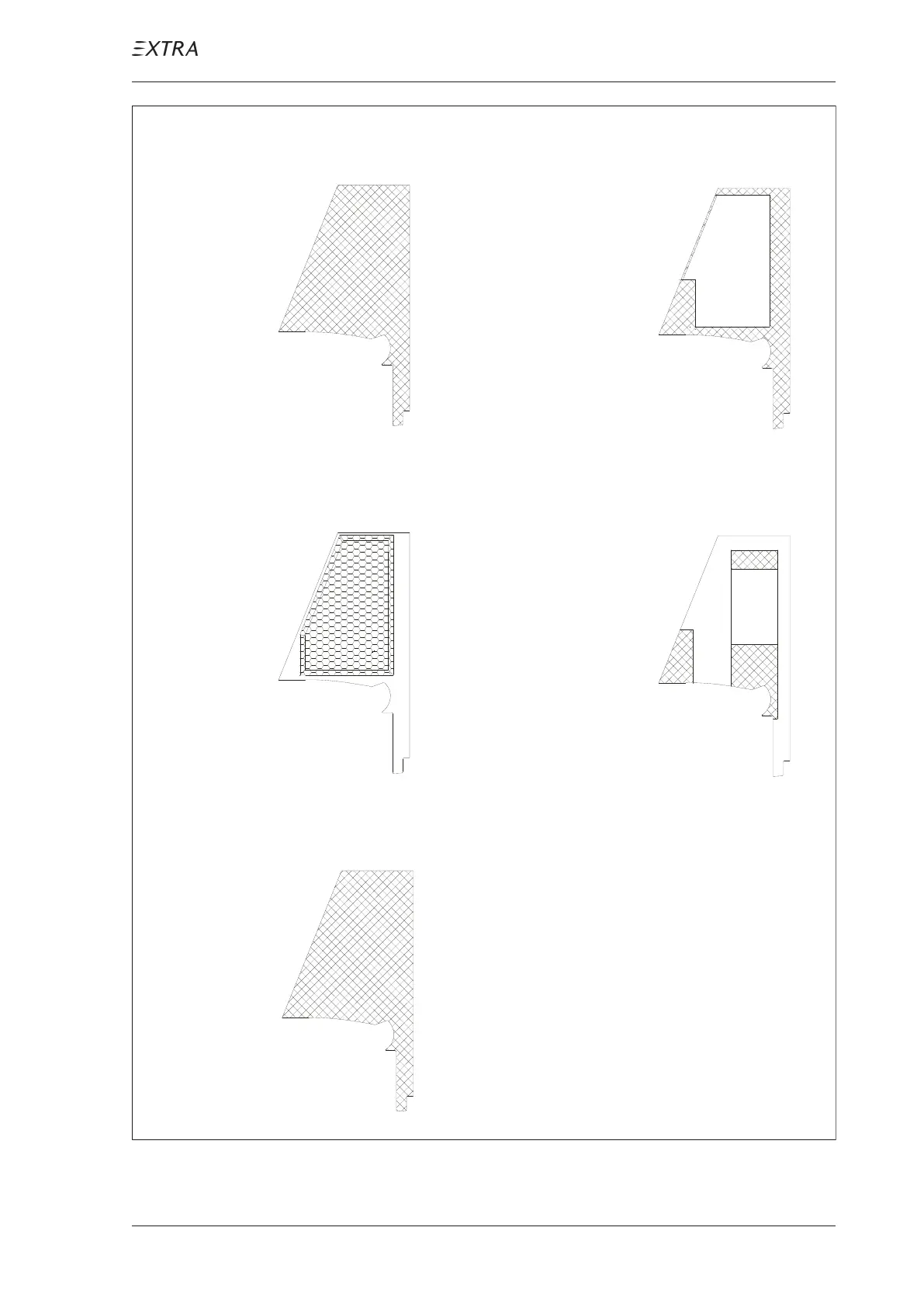

Figure 5 Layer Sequence Vertical Stabilizer

1 Vorgelat T35

2 1 x CCC452 45

±°

3. Reinforcement

1 x CCC452 45°

4 Honeycomb

5 Reinforcement

1 x CCC490 ±45°

6 1 x CCC490 ±45°

RH shell shown, LH shell mirror-inverted
