CHAPTER 72
PAGE 5
PAGE DATE: 1. March 2011
MAINTENANCE MANUAL EXTRA 330LX
72-10-00 ENGINE
The engine installed is a TEXTRON Lycoming 6-cylinder
direct drive, horizontally opposed, air cooled engine.
Engine type:
AEIO-580-B1A 315 HP @ 2700 RPM

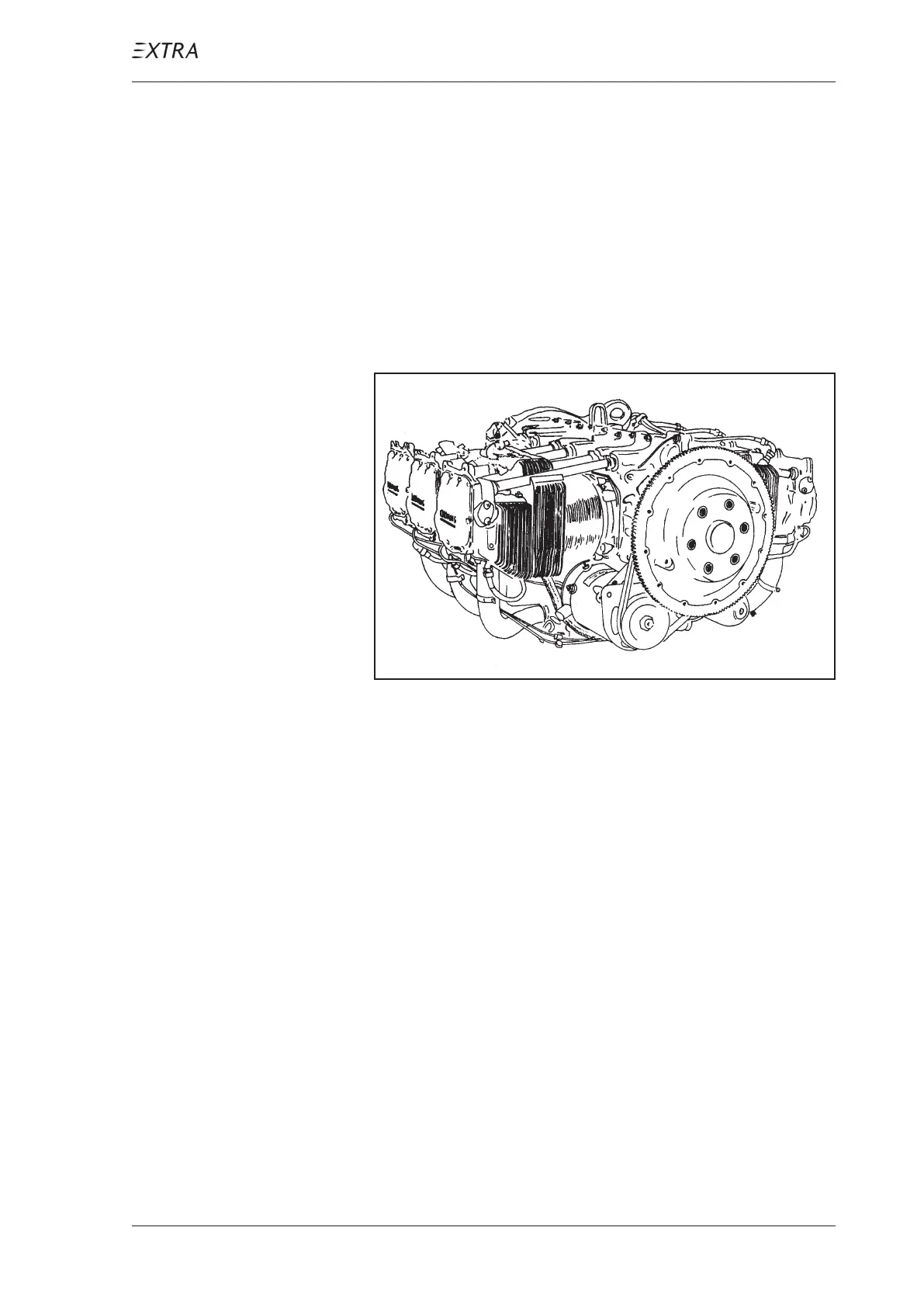

Figure 1 shows the Lycoming engine of the EXTRA 330LX:
The induction system is equipped with a BENDIX RSA-10
fuel injection system which is attitude independent.
The fuel is injected into the intake ports of each cylinder. The
mixture control is proportional to the intake air flow. A
manual mixture adjustment as an overriding system is pro-
vided. The power setting is done manually by means of a
butterfly valve in the air induction tube.
The engine is air cooled. Baffles are provided to build up
pressure and to force the air through the cylinder fins. The
cooling air flow is dependent on engine speed and dynamic
air pressure.
The engine is lubricated by means of an engine driven oil
pump. The system uses an oil sump as reservoir. For acro-
batic maneuvers, lubrication is assured via an inverted flight
oil system (refer to CHRISTEN 801 Inverted Oil System and
chapter 79).
Figure 1 Lycoming Engine
