FaroArm® Quantum
August 2017
23
Chapter 2: Setting up the Quantum
5. Tighten the locking ring by turning it in the opposite direction. Tighten
the ring until it clicks.
NOTE: Remove the 7-Axis Handle from the Quantum before packing.
See “Packing the Quantum” on page 29.

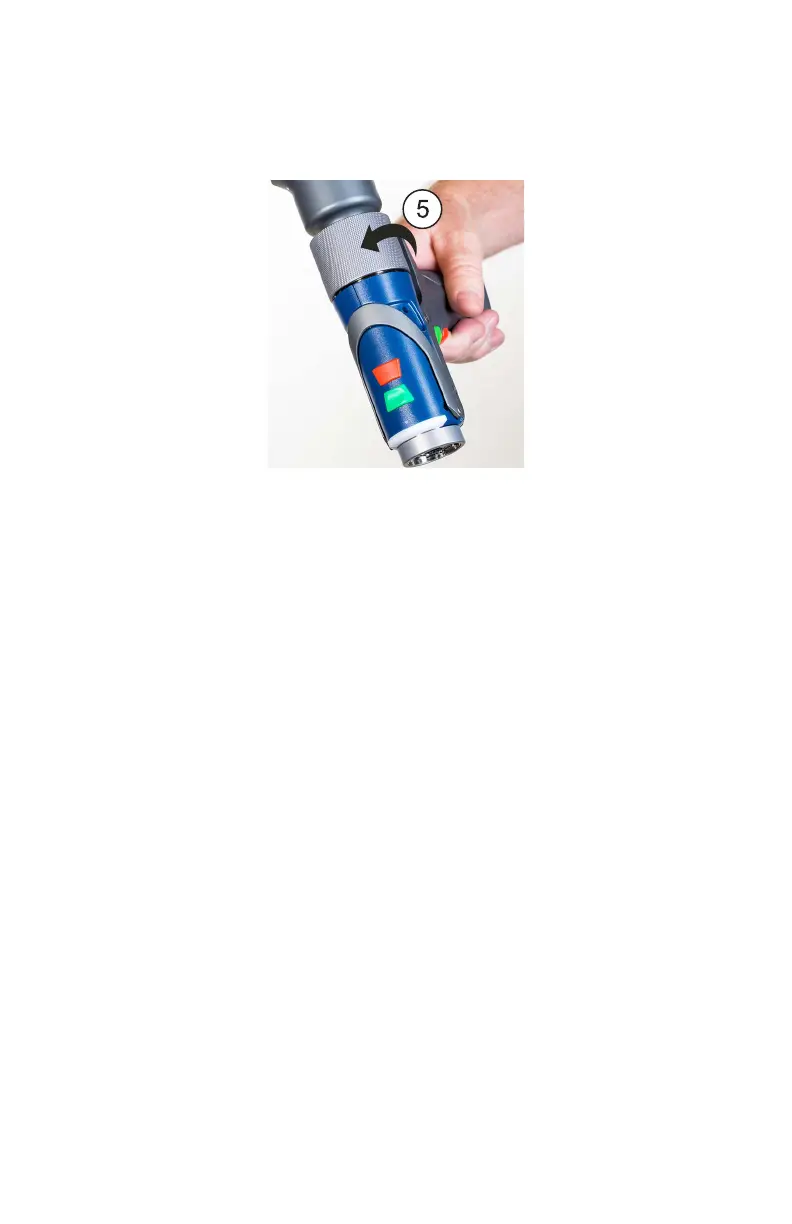

Figure 2-13 Tightening the Locking Collar
08m80e00_FaroArm_Quantum.book Page 23 Tuesday, August 22, 2017 11:03 AM
