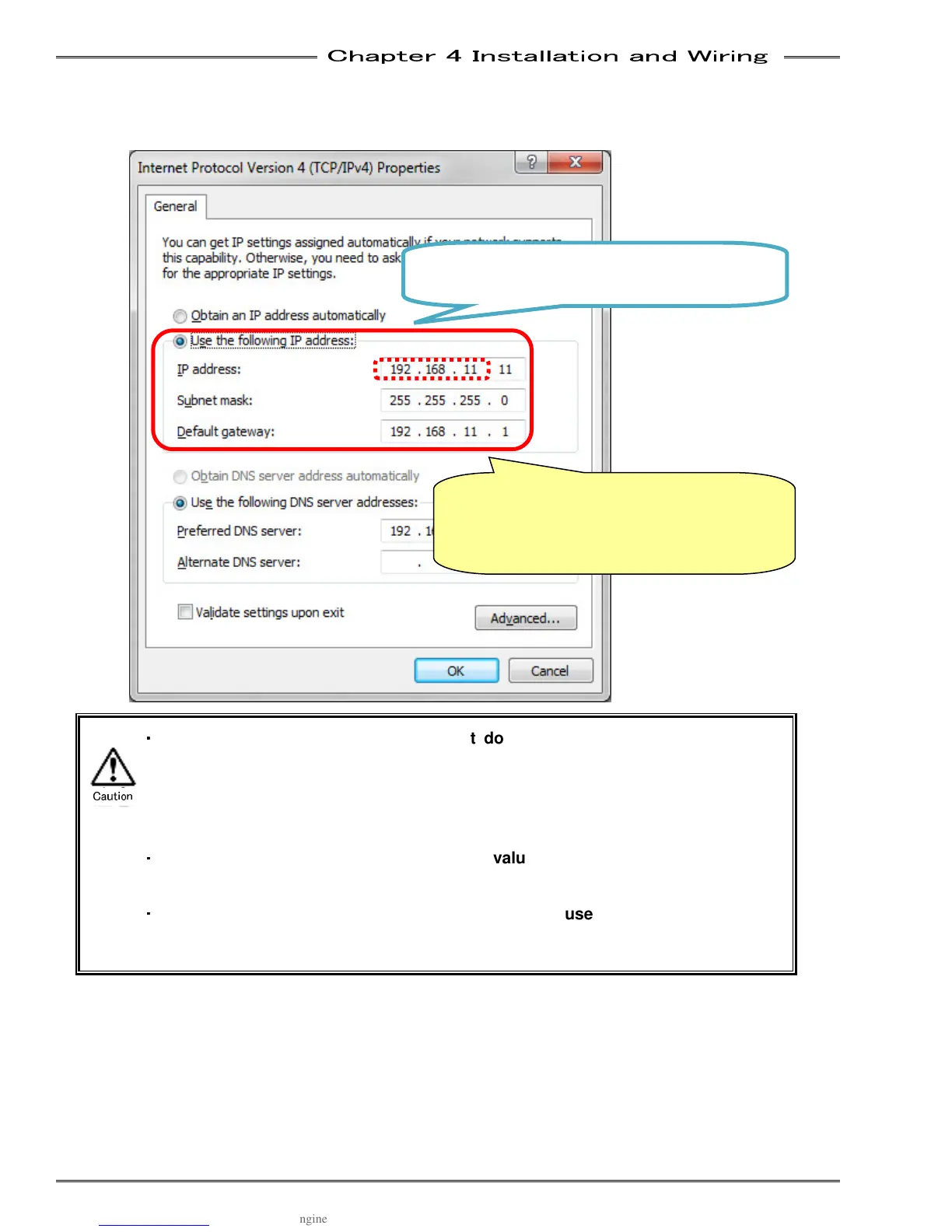

6. In Internet Protocol Version 4 (TCP/IPv4) Properties, select “Use the following IP address” and
change the IP address, the subnet mask, and the default gateway.
･
･･
･
Set the IP address of the PC so that it does NOT match the
controller (i.e. IP address must be a different number –
if the controller is set as IP
192.168.11.10, then the PC can be 192.168.11.11, 192.168.11.12, etc.).
else is
on the same network, then make sure the IP address setup in the PC does
NOT match ANY other number in the network.
･
･･
･
Set the subnet mask of the PC to the same values as the factory set values of the
Unit.
･
･･
･
Make note or write down the settings that were u
change, you will most likely need to return the PC to the prior settings if you try to
connect back to your PC network.
7. Register the IP address in the AFC3000 User Console. Please refer to “TCP/IP Setting
Procedures (User Console)” on PAGE 3-27.
* Reference Example
IP address: 192.168.11.11
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.11.1
Match the values of the 3 upper positions to
the IP address set values of the Unit.
