Chapter 4 Installation and Wiring
PAGE 4-62

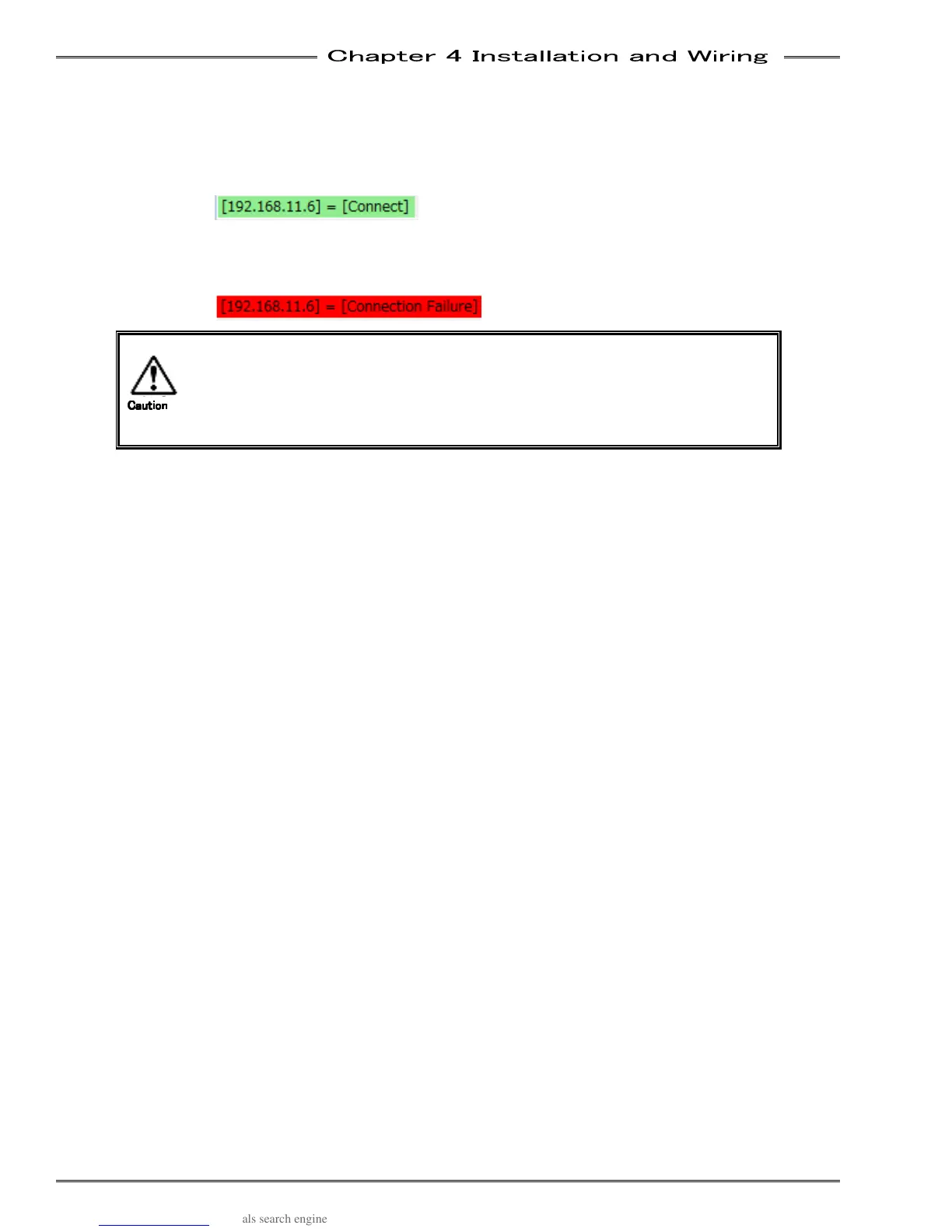

4-A. If connection with the Unit is successful, the “Connect” indication changes from
“Disconnect” to “[****]=[Connect]” (where **** is the IP address set in procedure 2.) is
displayed at the lower left status bar of the User Console. After connection succeeds,
reading and writing of respective set values, monitoring of fastening result indications,
etc. can be executed.
4-B. If connection with the controller fails, “Connection to IP address **** failed.” (where ****
is the IP address set in procedure 2.) is displayed and “[****]=[Connection Failure]” is
displayed at the lower left status bar of the User Console.
If another PC is already connected to the Unit when Procedure 3
executed, “A communication error has occurred. Please confirm the
c
ommunication status.” is displayed and thereafter, “Unconnected” is
displayed at the lower left status bar of the User Console.
Caution
CautionCaution
Caution
