Chapter 8 System Operation
PAGE 8- 16
Also, during the fastening operation, the operation speed and the fastening step state are displayed. During the
fastening operation, the parameter No. (01 to 32) that is currently in operation is indicated in the PAR No.
display. The mode cannot be changed in the display during the fastening operation. Transition to the Fastening
Result Mode is performed automatically after the fastening ends.

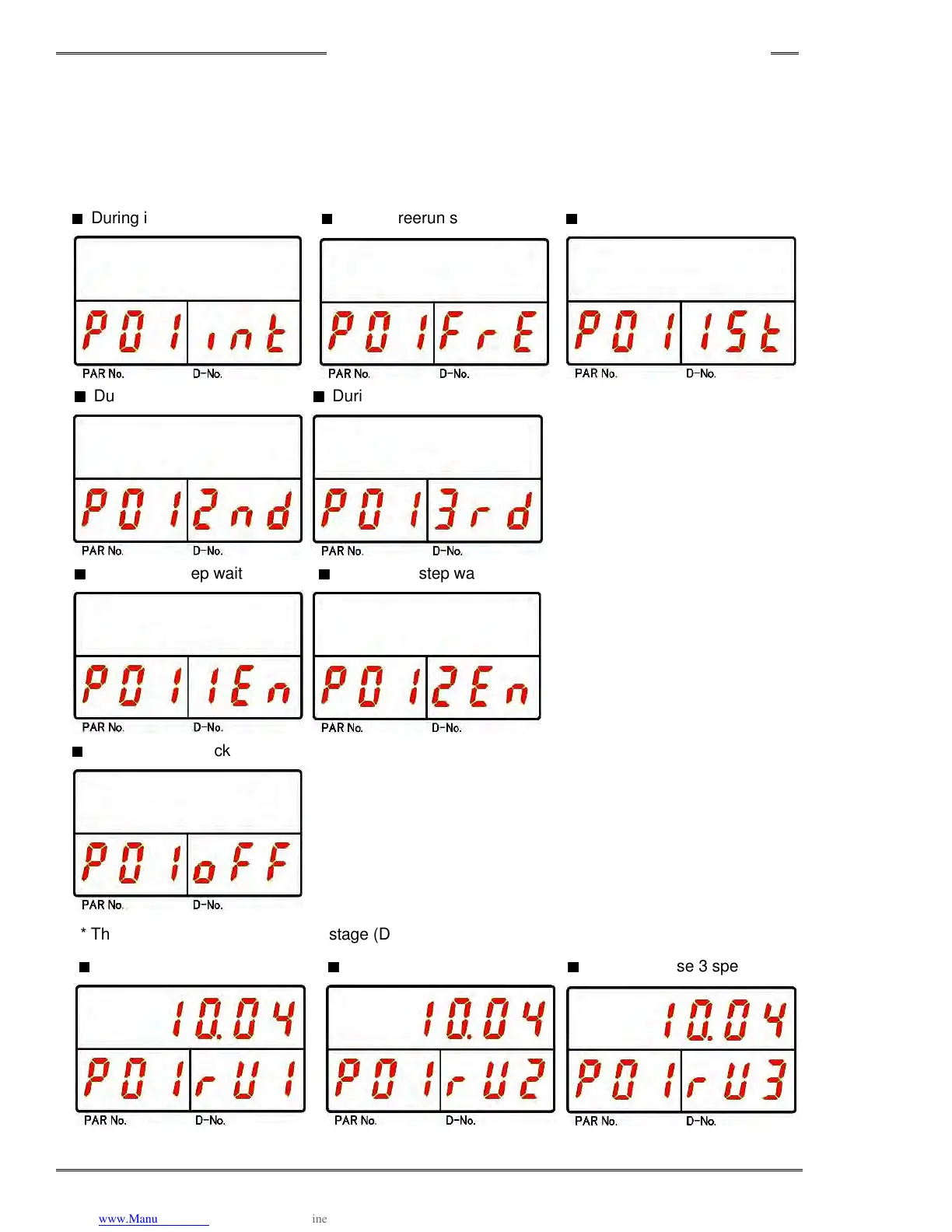

The following are display examples during a fastening operation of parameter No. 1.
■
■■
■
During initial speed
■
■■
■
During freerun speed
■
■■
■
During 1st speed
■
■■
■
During 2nd speed
■
■■
■
During 3rd speed
■
■■
■
During 2nd step wait (1 End)
■
■■
■
During 3rd step wait (2 End)
■
■■
■
During offset check
* The display content of the upper stage (DATA) of the indicator is maintained during reverse operations.
■
■■
■
During reverse 1 speed
■
■■
■
During reverse 2 speed
■
■■
■
During reverse 3 speed
To Next Page
