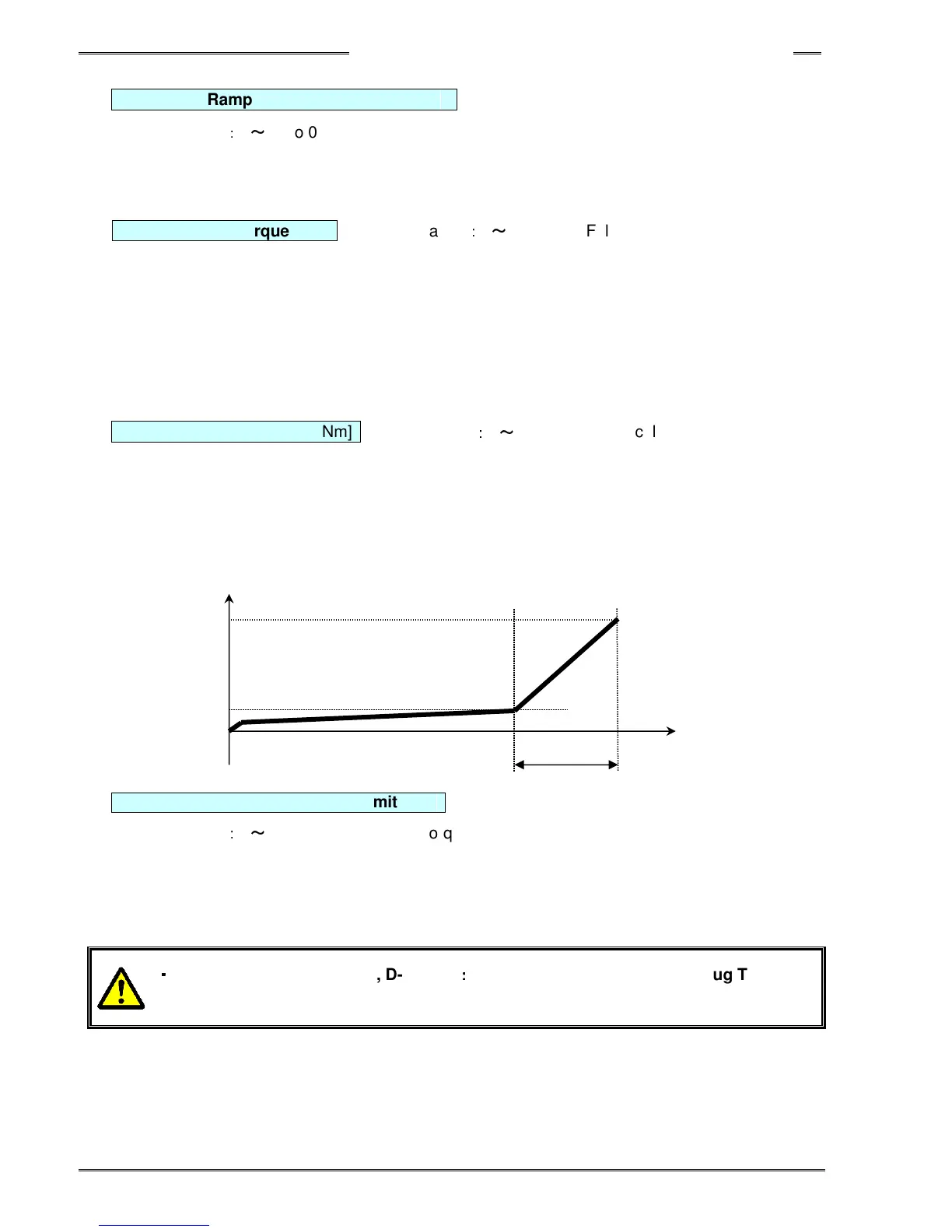

Chapter 8 System Operation
PAGE 8- 43
D-No.104
Ramp Down Start Torque [Nm]
Setting Range
：
0
～
D-No.010 [Full Scale Torque] ×1.0
The torque value that the speed is shifted from D-No.401 [Freerun Speed] to D-No.402 [1
ST
Speed].
If D-No.500 [Freerun Revolutions] is reached before Ramp Down Start Torque is detected, the speed will
switch to D-No.402 [1
st
Speed].
D-No.105
1
ST
Torque [Nm]
Setting Range
：
0
～
D-No.100 [Full Scale Torque] ×1.0
The torque value when the D-No.401 [Freerun Speed] or D-No.402 [1
ST
Speed] is shifted to D-No.402
[2
ND
Speed].
It is the synchronization point of the 1
st
Step prior to commencing 2
STEP or 3 STEP fastening
operations.
1
st
Torque is the end point of 1
ST
Time and the beginning point of 2
nd
Time.
Input the same value as D-No.010 [Full Scale Torque] if the 1ST Torque is not used as a fastening
control.
D-No.107
SNUG Torque [Nm] Setting Range
：
0
～
D-No.010 [Full Scale Torque] ×1.0
SNUG Torque is the start torque for angle measurment. (It is the start point of angle measurement)
When D-No.000 [Fastening Method] is Angle Control Method, it is the fastening start point.
Angle measurement and judgment are started from D-No.107 [SNUG Torque].
(Ex. : When D-No.107 [SNUG Torque] is 10Nm, D-No.202 [Standard Angle] is 90deg)
D-No.108
SNUG Torque High Limit [Nm]
Setting Range
：
0
～
D-No.100 [Full Scale Torque] ×1.1
Set the high limit of the starting torque used for angle measurement.
If the value of D-No.107 [SNUG Torque] exceeds the D-No.108 [SNUG Torque High Limit], the fastening
result will be REJECT.
・
・・
・
When the fastening option, D-No.002
：
：：
：
[Disable Angle Count below Snug Torque ]
enabled the
Angle counting is only performed when the torque value is equal to or
ABOVE the Snug Torque setting value
107 SNUG Torque
10Nm
202 Standard Angle
Torque
Angle
90deg
Peak Torque
