2 Product Overview
34
Product Overview
2

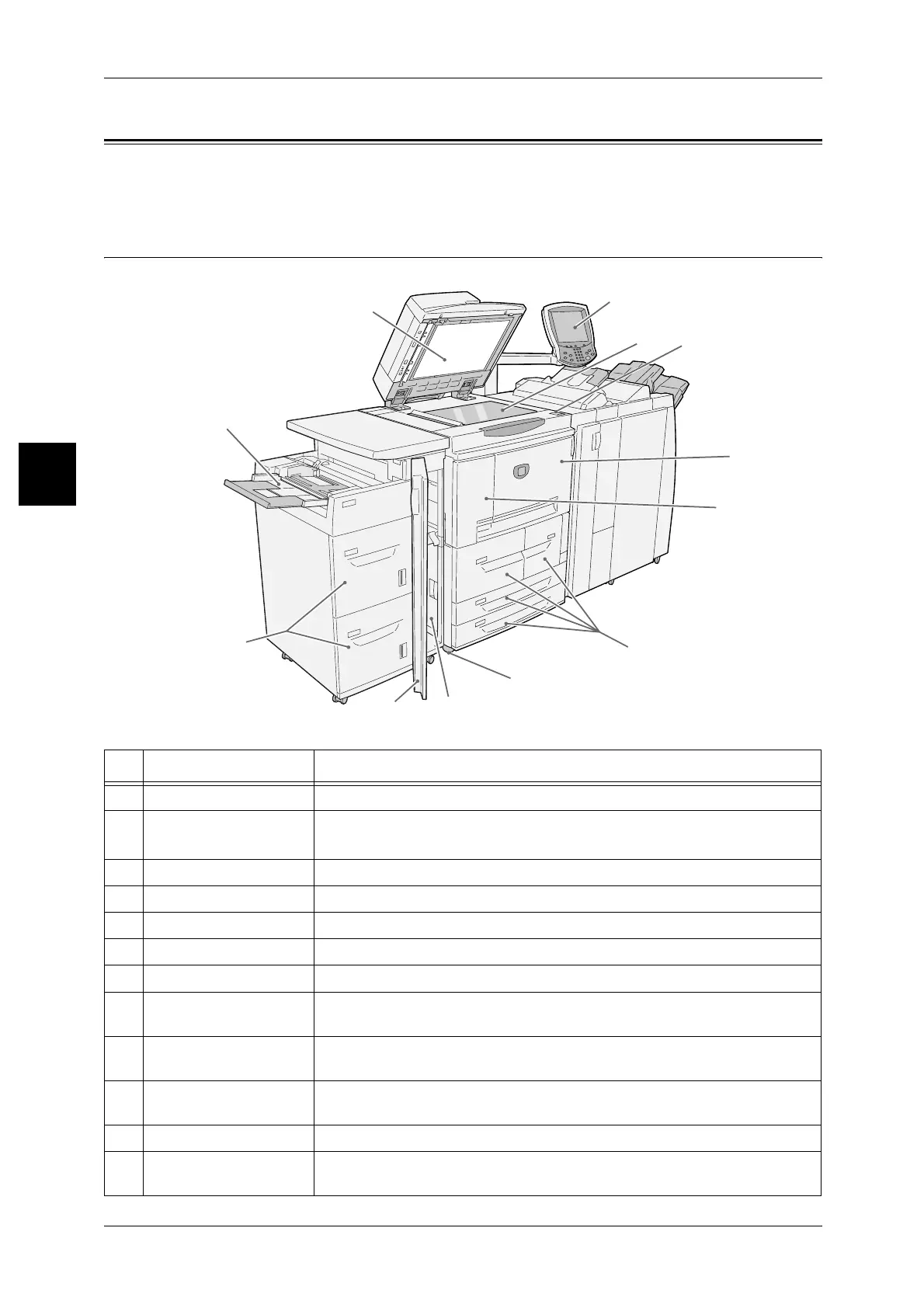

Machine Components
This section describes the main components and their functions of the machine.
Main Body
No. Component Function
1 Document cover Holds the document down.
2 Control panel It consists of operation buttons, LED indicators and a touch screen.
Refer to "Control Panel" (P.44).
3 Document glass Load documents here.
4 Power switch Switches the power of the machine on/off.
5 Front cover Open this cover to clear paper jams and to replace the waste toner bottles.
6 Toner cover Open this cover to replace the toner cartridge.
7 Tray 1, 2, 3, 4 Load papers here for copying.
8 Locking casters Used for locking the wheels of the machine. Lock these casters after moving
the machine to its installation site.
9 Bottom left cover Open this cover to access the insides of the machine to remove the jammed
paper.
10 Front cover for high
capacity tray unit.
Open this cover to access the bottom left cover of the machine to remove
the jammed paper.
11 Tray 6, 7 Load papers here for copying.
12 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other special
media) that cannot be loaded in trays 1 to 4.
1
2
3
4
7
8
9
11
12
10
To Next Page
