144

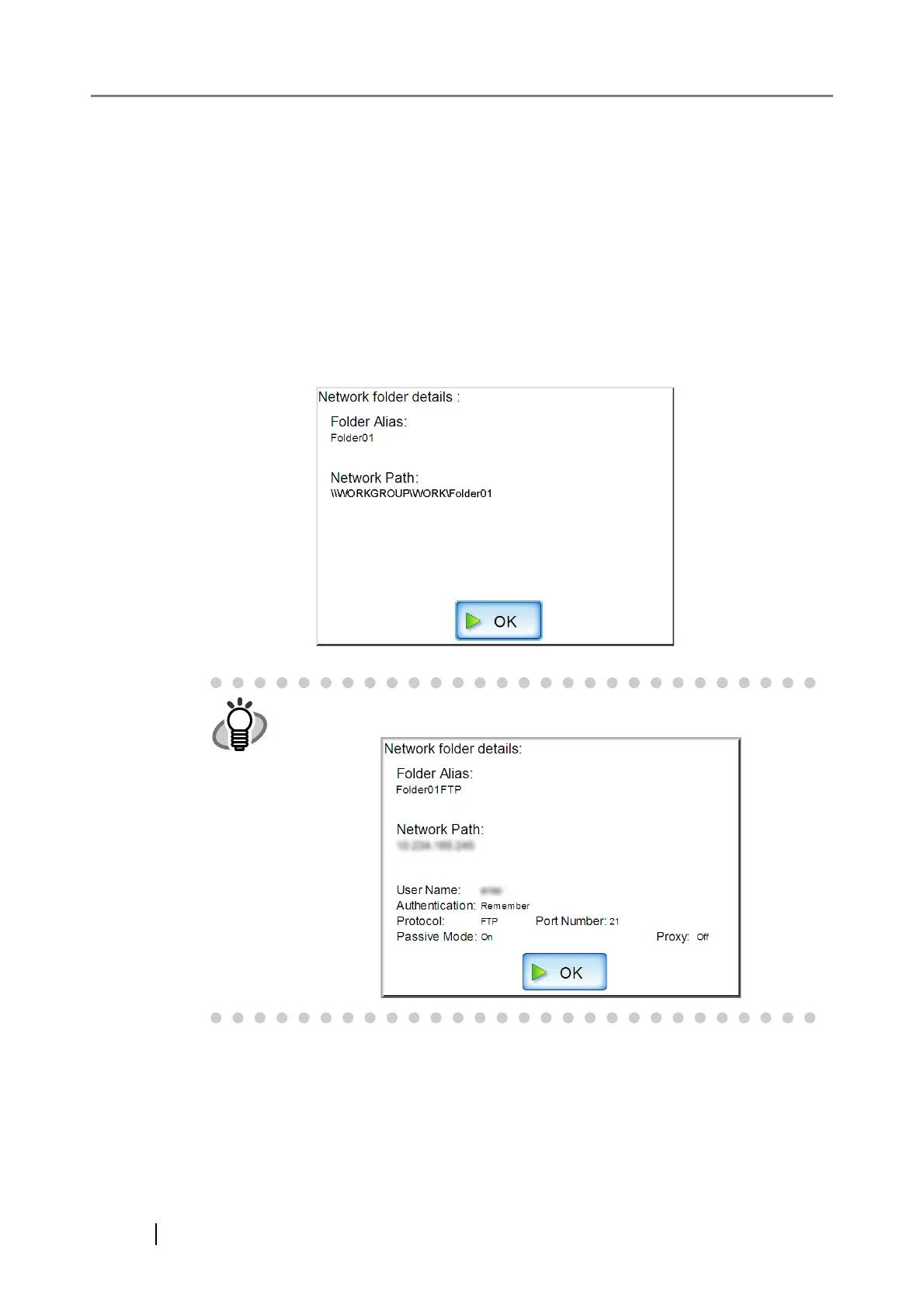

■ Viewing the Network Folder Details

1. Select the [Network Settings] tab on the top menu.

2. Select the [Network Folder] tab on the left side menu.

 The "Network Folder" screen appears.

3. Select the desired network folder from the folder list.

4. Press the [Details] button.

 The information for the selected network folder is displayed.

HINT

If the network folder is an FTP server folder, the following screen is dis-

played.
