4.6 Using the System Settings Menus
4.6.1 Calibrating the Touch Panel
This should be done when the touch panel responses seem out of alignment with the positions of
objects on the LCD screen.
1. Select the [System Settings] tab on the top menu.
2. Select the [Screen Calibration] tab on the left side menu.

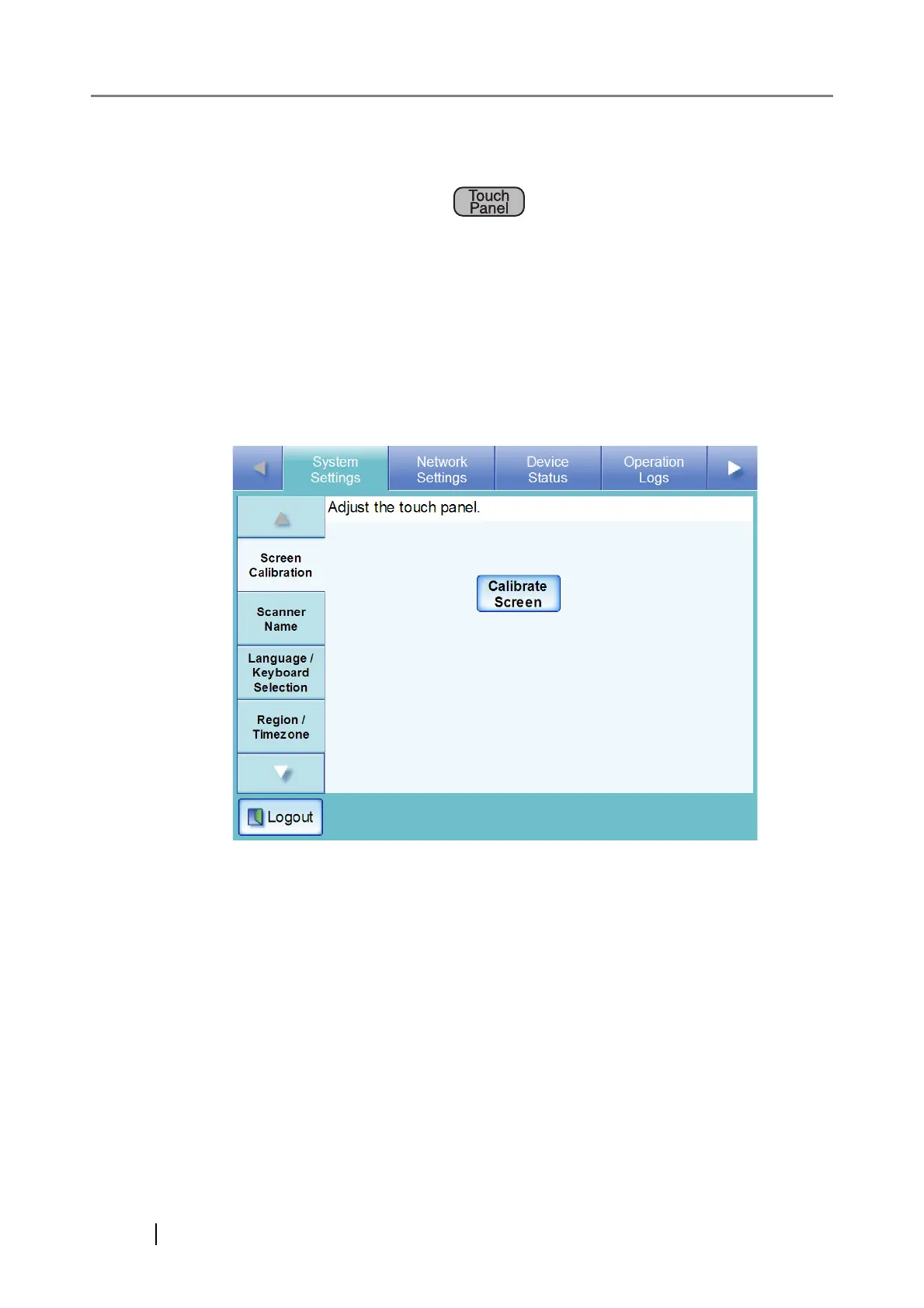

The "Screen Calibration" screen appears.
3. Press the [Calibrate Screen] button.
A blank calibration screen appears, with a red "+" (adjustment mark) in the top-left cor-
ner.
To Next Page
